Operation - Section 32 OM3223
Page 32-12 Operator Cab and Controls
PANEL GAUGES, INDICATORS, AND CONTROLS
Key Switch
Key switch (1, Figure 32-11) is a three-position (OFF,
RUN, START) switch. When the switch is rotated one
position clockwise, it is in the RUN position and all
electrical circuits (except START) are activated. With
the selector switch in NEUTRAL, rotate the key
switch fully clockwise to the START position and hold
this position until the engine starts. The START posi-
tion is spring loaded to return to RUN when the key is
released. With the truck stopped, turn the key switch
counterclockwise to the OFF position to turn the
engine off. Use the engine shutdown switch on cen-
ter console if the engine does not turn off with key
switch.
NOTE: A ground level shut down switch is located on
the lower front left side of truck.

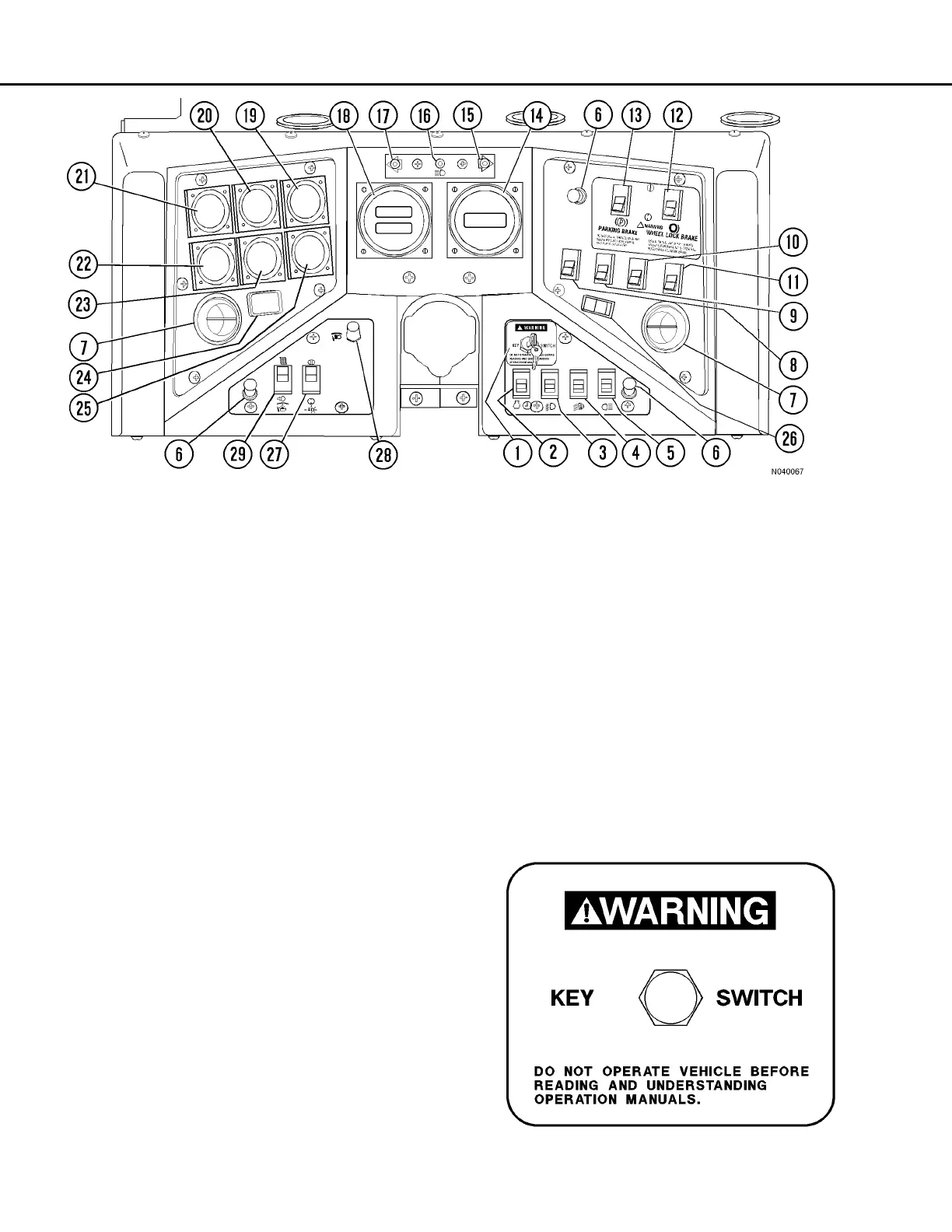

FIGURE 32-11. PANEL, GAUGES, INDICATORS, AND CONTROLS
1. Keyswitch
2. Engine Shutdown Switch with Timer Delay
3. Fog Light Switch (N./O.) (Optional)
4. Ladder Light Switch
5. Backup Light Switch (N./O.)
6. Panel Illumination Light(s)
7. Vent(s) - Cab Air Conditioner / Heater
8. Engine Starting Aid Switch (N./O.) (Optional)
9. Rotating Beacon Light Switch (N./O.) (Optional)
10. Heated Mirror Switch (N./O.) (Optional)
11. Leakage Test Switch (Trolley Option)
12. Wheel Brake Lock Switch (N./O.)
13. Parking Brake Switch (N./O.)
14. Digital Tachometer
15. Right Turn Signal Indicator Light
16. High Beam Headlight Indicator Light
17. Left Turn Signal Indicator Light
18. Digital Speedometer / Payload Meter Display
19. Voltmeter Gauge
20. Engine Oil Pressure Gauge
21. Engine Water Temperature Gauge
22. Fuel Gauge
23. Blank - Not Used In This Application
24. Engine Hourmeter
25. Blank - Not Used In This Application
26. Blank - Not Used In This Application
27. Headlights Switch (N./O.)
28. Panel Illumination Lights Dimmer Rheostat
29. Payload Meter Switch
