Operator Cab and Controls Page 32-1
OPERATOR CAB AND CONTROLS

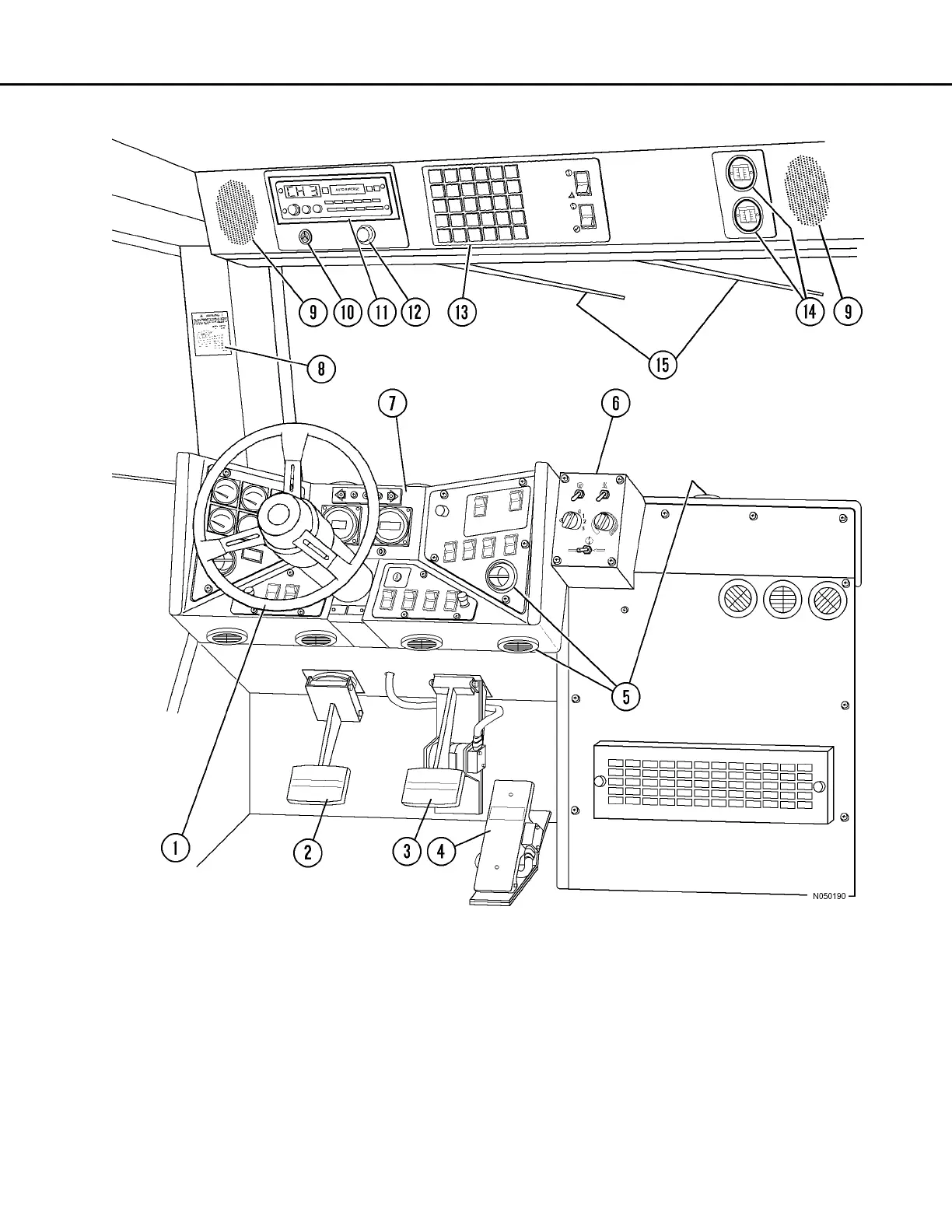

FIGURE 32-1. CAB INTERIOR - OPERATOR VIEW
1. Steering Wheel
2. Service Brake Pedal
3. Retarder Pedal
4. Throttle / Accelerator
5. Heater / Air Conditioner Vents
6. Heater / Air Conditioner Controls
7. Instrument Panel
8. Grade / Speed Chart
9. Radio Speakers
10. Warning Alarm Buzzer
11. Radio, AM/FM Stereo, Cassette
12. Warning Lights Dimmer Control
13. Warning / Status Indicator Lights
14. Air Cleaner Vacuum Gauges
15. Windshield Wipers
