Komatsu 730E - Page 127

OM4211 07/09 Maintenance - Section 42
Automatic Lubrication System Page 42-5

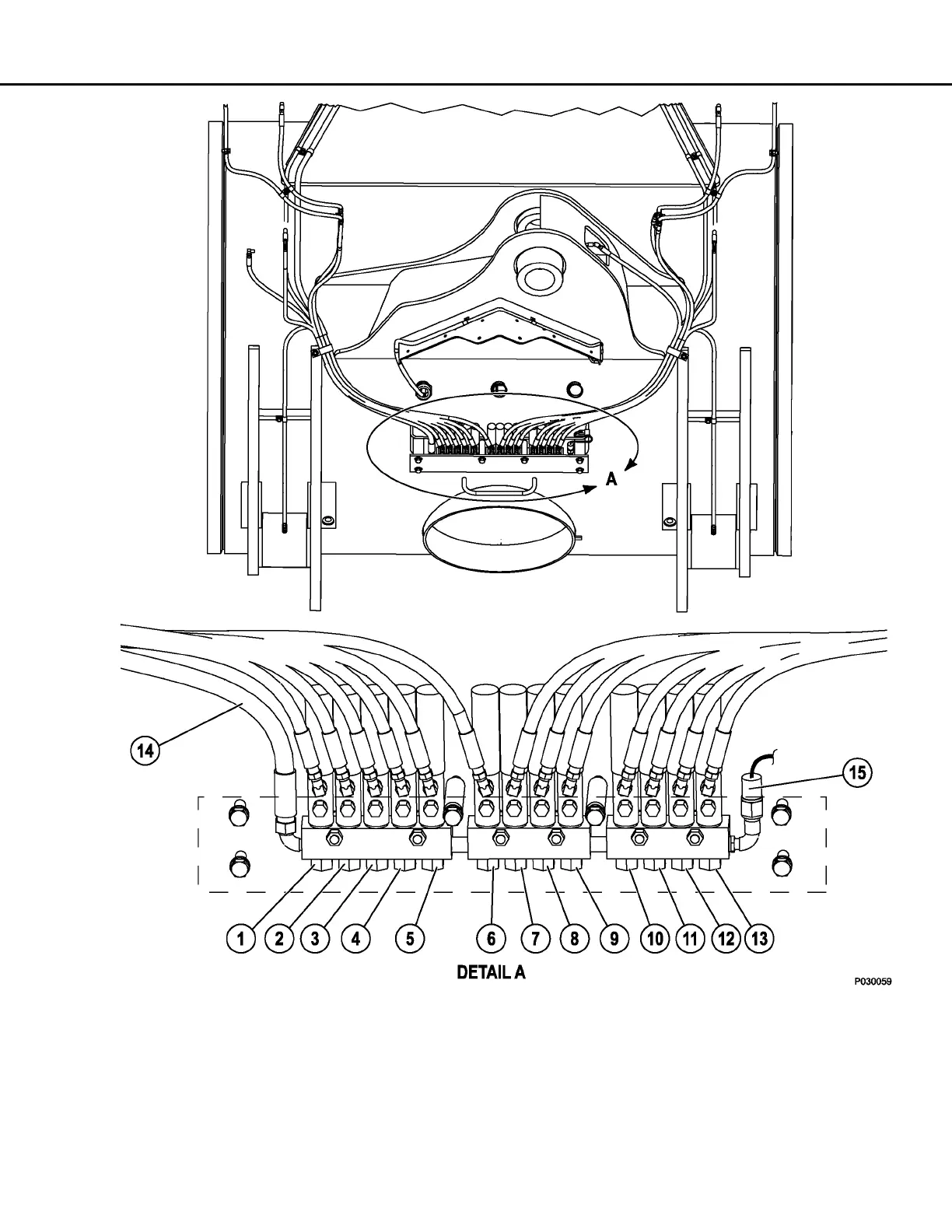

FIGURE 42-4. REAR LUBRICATION INJECTORS
1. LH Lower Suspension
2. LH Top Suspension
3. LH Body Pivot Pin
4. LH Top Hoist Cylinder
5. LH Anti-Sway Bar
6. LH Bottom Hoist Cylinder
7. RH Anti-Sway Bar
8. Rear Axle Pivot Pin
9. RH Bottom Hoist Cylinder
10. RH Top Hoist Cylinder
11. RH Body Pivot Pin
12. RH Top Suspension
13. RH Lower Suspension
14. Grease Supply
15. Pressure Switch
13 790 kPa (2,000 psi)
