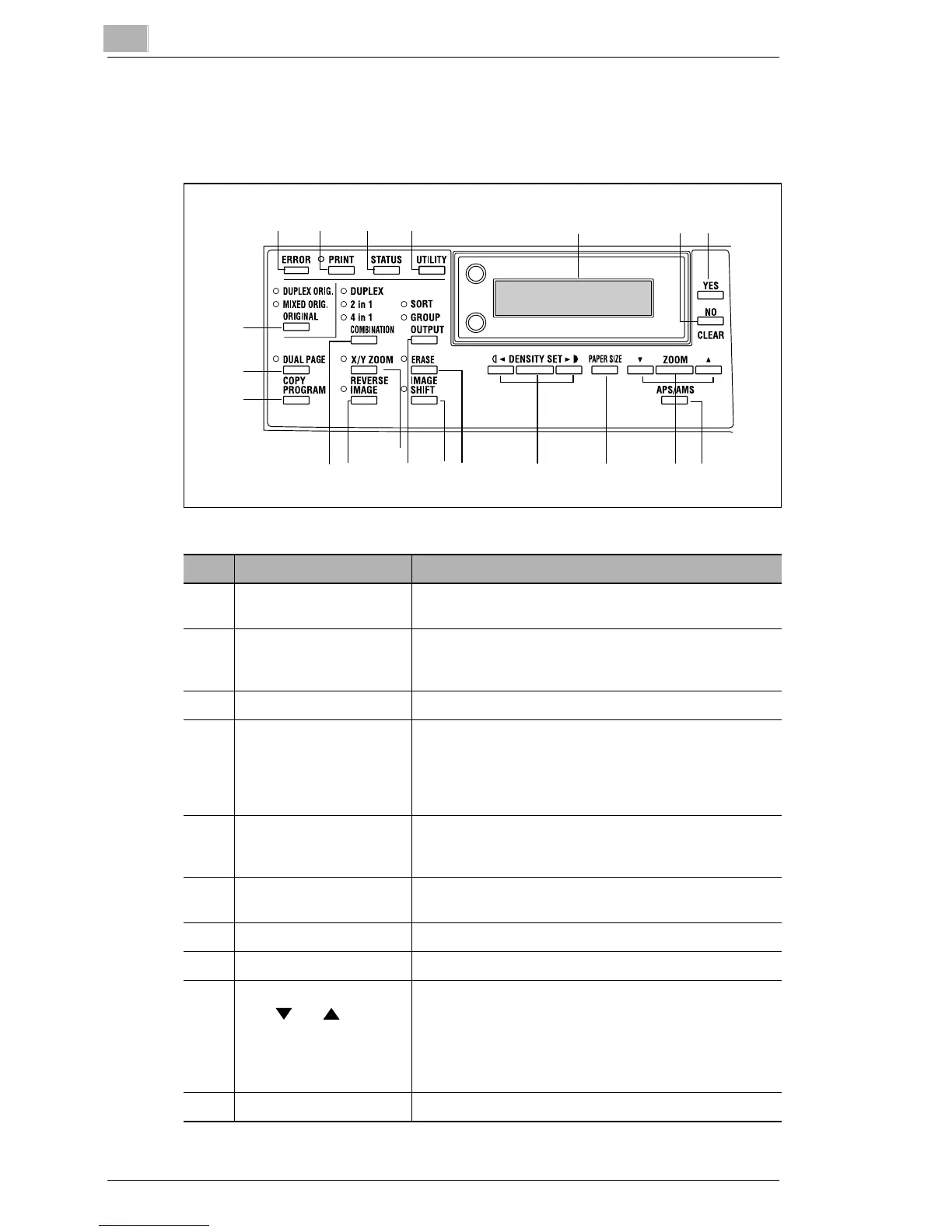

2.6 Names of Control Panel Parts and Their Functions
Control Panel Parts and Their Functions
5 7
4
6
18
81012
1314
15
16
17
3
21
19
20
911
No. Part Name Function
1 “ERROR” indicator Flashes when an error has occurred.
Refer to “Error Messages” on page 8-1.
2 [Print] key/indicator Lights up while data is being printed from the computer
and flashes while data is being sent.
For details, refer to the Printer Controller Manual.
3 [Status] key Used to view the counters.
4 [Utility] key Used to enter Utility mode and display the first Utility
mode screen.
• MACHINE SETTING, PAPER SOURCE SETUP,
USER MANAGEMENT,
ADMIN. MANAGEMENT, COPY SETTING 1 & 2
5 Display Displays setting menus, error messages, and specified
settings such as the number of copies and the zoom
ratio.
6 [No/Clear] key Erases the entered numbers and letters.
Returns to the previous screen.
7 [Yes] key Confirms the current setting.
8 [APS/AMS] key Used to select between the APS or the AMS function.
9 [Zoom]
key,
and keys
• Used to select a preset enlargement or reduction
ratio.
• With each press, a zoom ratio between × 0.50 and
×
2.00 is selected in 0.01 increments.
• Used to specify the selection above or below in
setting screens and menus.
10 [Paper Size] key Used to select the size of the paper to be printed on.
