6.3.5 Removing/reinstalling the right cover /Up
A. Procedure
1. Open the bypass tray.
(See P.139)
2. Pull the ADU release lever [1] to open ADU [2].
3. Remove the 2 screws [1] and then remove the
right cover /Up [2].
4. Reinstall the above parts following the removal
steps in reverse.

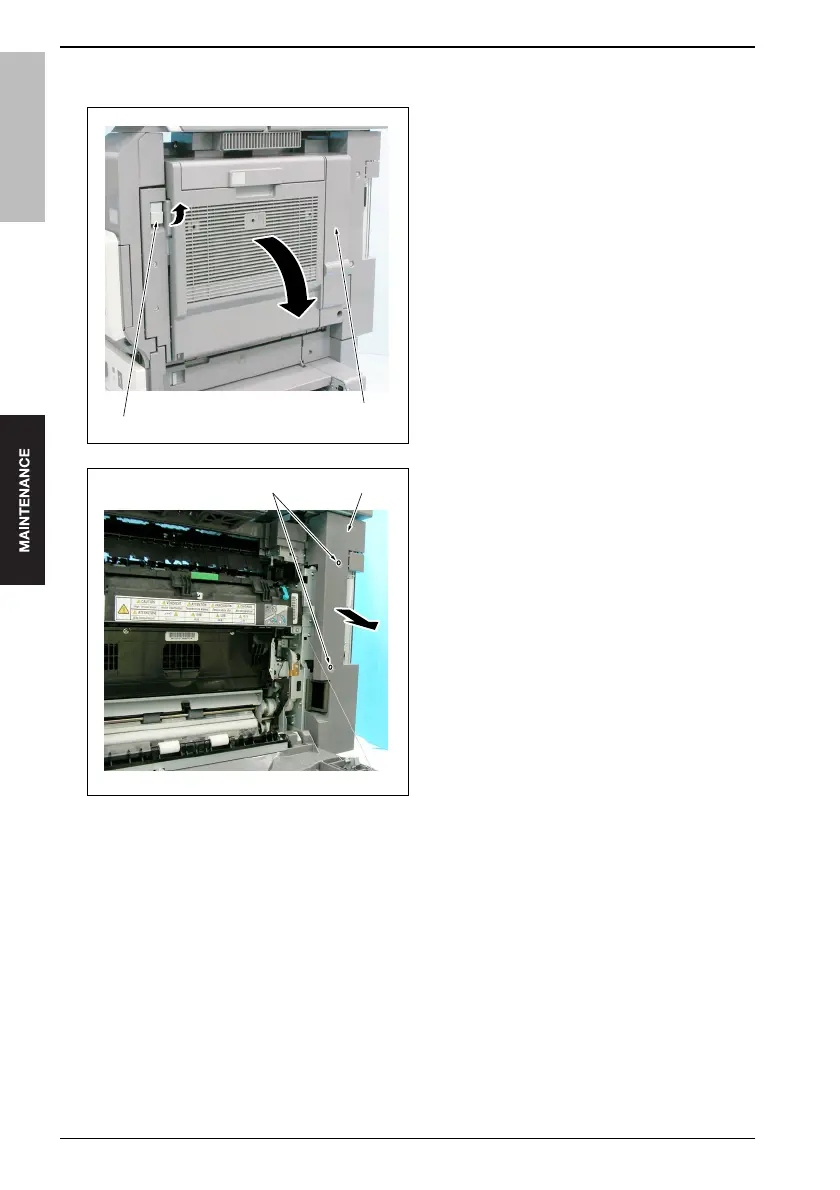

50gaf2c053nb
[1]
[2]
50gaf2c054na
[1] [2]
