14. PARTS LAYOUT DRAWING
386
Field Service Ver.2.0 Mar. 2009
bizhub 501/421/361
14.3 PC

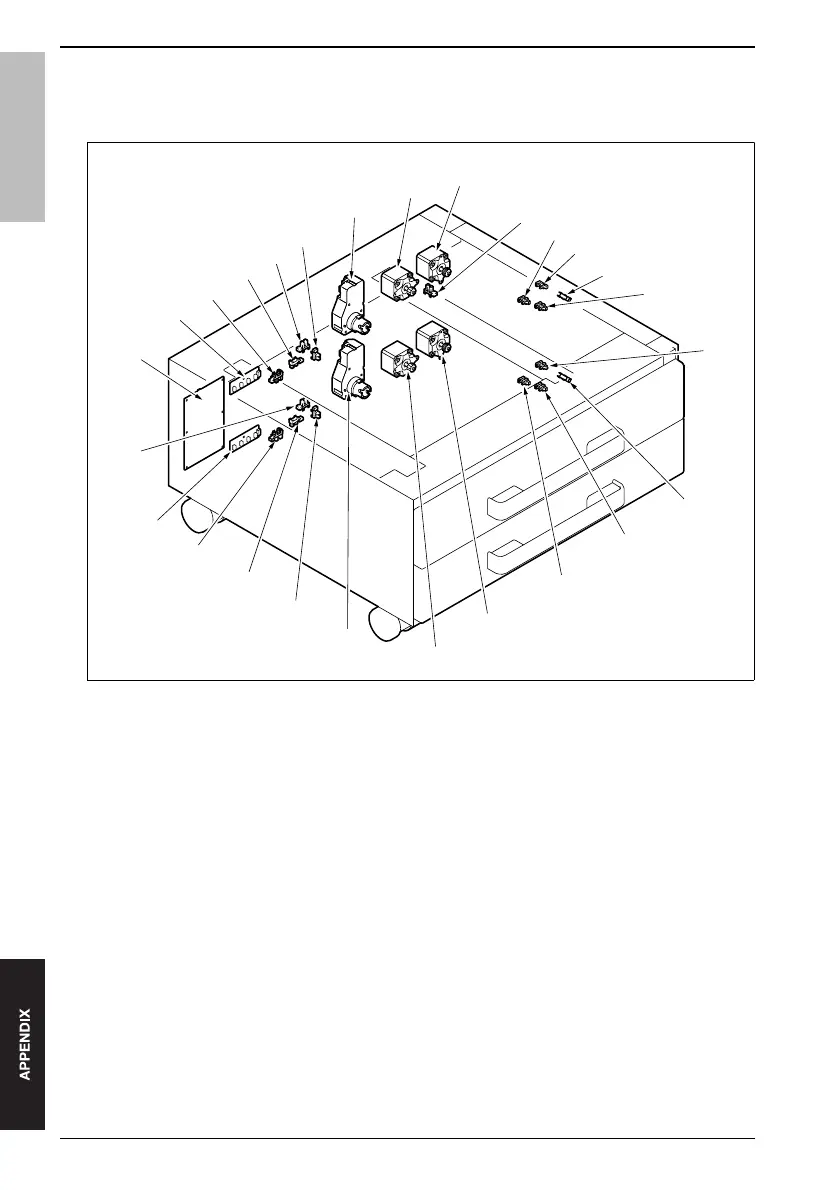

14.3.1 PC-206
[1] Vertical conveyance sensor /4 (PS126) [14] Paper size detect board /3 (PSDB3)
[2] Paper feed sensor /4 (PS125) [15] Paper size sensor /Rr3 (PS118)
[3] Paper empty sensor /4 (PS124) [16] Paper size sensor /Fr3 (PS119)
[4] Upper limit sensor /4 (PS123) [17] Tray set sensor /3 (PS112)
[5] Vertical conveyance motor /4 (M121) [18] Near-empty sensor /3 (PS113)
[6] Paper feed motor /4 (M123) [19] Paper lift motor /3 (M124)
[7] Paper lift motor /4 (M125) [20] Paper feed motor /3 (M122)
[8] Near-empty sensor /4 (PS122) [21] Vertical conveyance motor /3 (M120)
[9] Paper size sensor /Fr4 (PS128) [22] Right door open/close sensor (PS111)
[10] Paper size sensor /Rr4 (PS127) [23] Upper limit sensor /3 (PS114)
[11] Paper size detect board /4 (PSDB4) [24] Vertical conveyance sensor /3 (PS117)
[12] Tray set sensor /4 (PS121) [25] Paper feed sensor /3 (PS116)
[13] PC control board (PCCB) [26] Paper empty sensor /3 (PS115)
[21]
[22]
[23]
[24]
[25]
[26]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
4061f5c001na
