Konica Minolta bizhub 421 Service Manual

3. OTHER Field Service Ver.1.0 May. 2008
10
FS-522/PU-501/OT-602

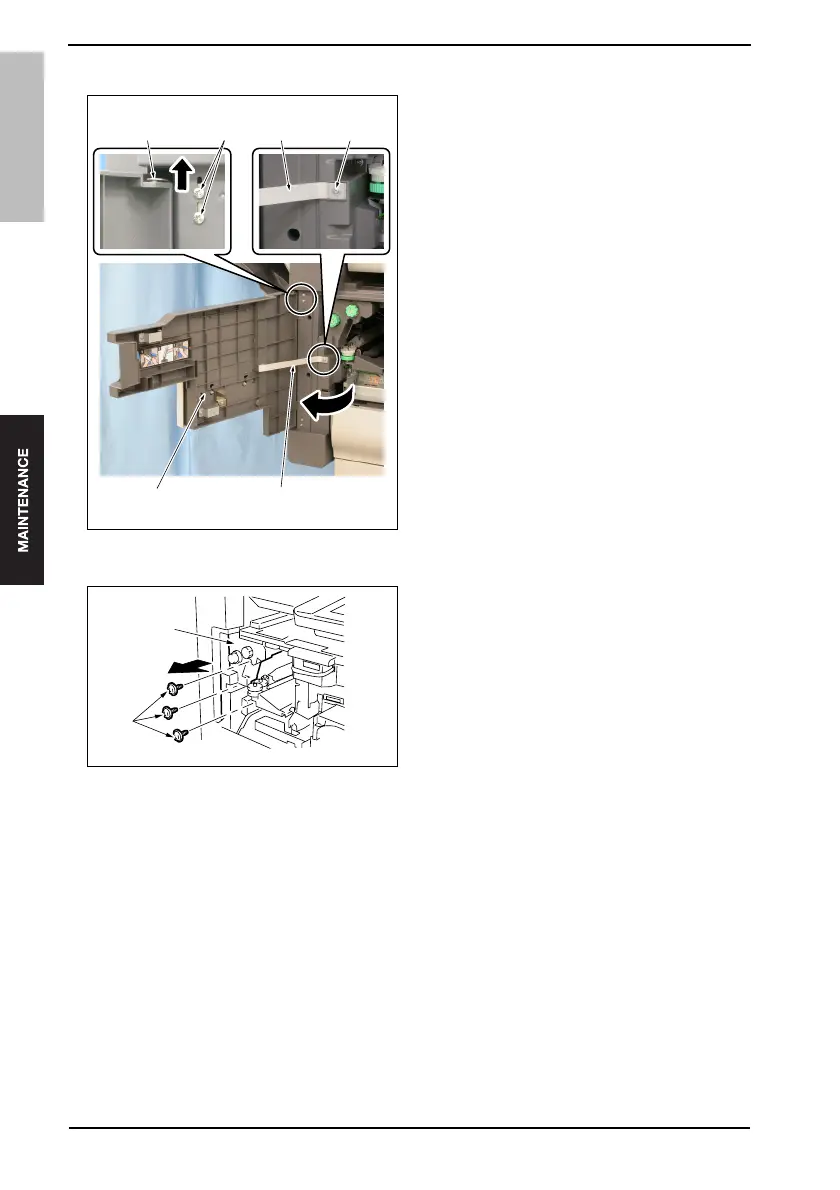

3.3.3 Front Door
1. Open the Front Door [1].
2. Remove the screw [2], and remove the
stopper [3].
3. Loosen two screws [4].
4. Slide up the Fulcrum /Up [5] and
remove the Front Door.
5. Reinstall the above parts following the
removal steps in reverse.
3.3.4 Conveyance Front Cover /Lt
1. Remove three screws [1], and remove
the Conveyance Front Cover /Lt [2].
2. Reinstall the above parts following the
removal steps in reverse.
[2][3][4][5]
[3]
4349f2c036na
[1]
[1]
[2]
4349f2c014na
