FS-523/RU-507
3. MECHANICAL ADJUSTMENT
29
Field Service Ver.1.0 May. 2008
3.4.2 Adjustment of the timing belt of the conveyance motor /Lw (M2)
A. Procedure
1.
Remove the upper cover.
(See P.6)
2.
Remove the rear cover /Up.
(See P.10)
3.

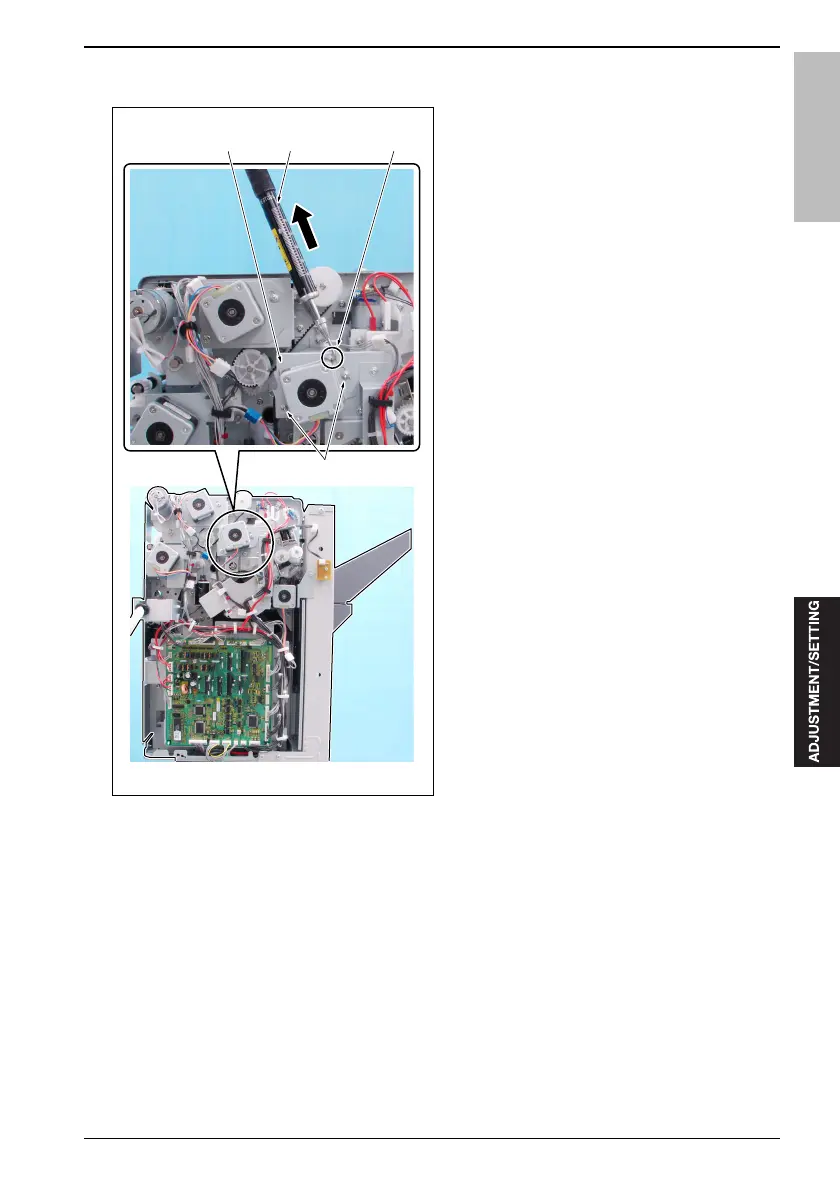

Loosen 2 screws [1].
4.
Pull the square hole [3] provided on the convey-
ance motor /Lw mounting plate [2] with the spring
balance [4] and tighten 2 screws [1] at the position
in which the scale of the spring balance points to
the specified value "A."
Specified value "A" = 800 ± 50 gf
4521f3c009na
[4] [3]
[1]
[2]
To Next Page
