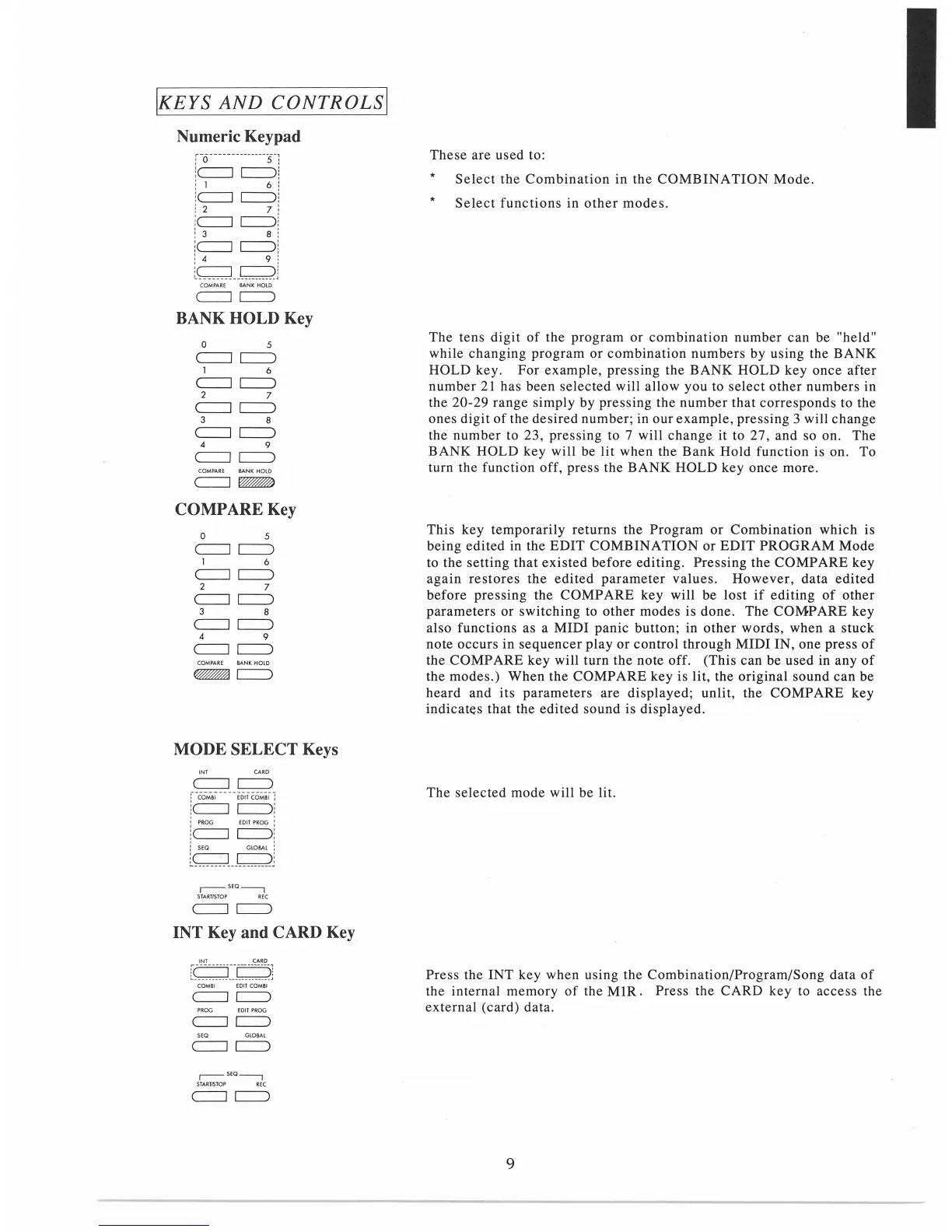

Korg M1R User Manual

IKEYS AND CONTROLS!
Numeric Keypad
,-6---- --- -- --- - -5- ~
! c::=::J ~ !
: l 6 i
i c::=::J ~ i
: 2 7 :
i c::=::J ~ !
: 3 8 :
i c::=::J ~ i
: 4 9 :
!c::=::J ~ !
__ __ _ _ , __ __ ___ ________ J
C OMPARE BANK HotD
c::=::J ~
BANK HOLD Key
0 5
c::=::J C:=J
l 6
c::=::J C:=J
2 7
c::=::J C:=J
3 8
c::=::J C:=J
4 9
c::=::J C:=J
CO MPARE BANK HOLD
c::=::J ~
COMPARE Key
0 5
c::=::J ~
l 6
c::=::J ~
2 7
c::=::J ~
3 8
c::=::J ~
4 9
c::=::J ~
CO MPAR E BANK HOLD
~~
MODE SELECT Keys
INT CARD
c::=::J ~
r-co Msl --- -e o,r COMB1-;
ic::=::J ~ :
: PRO G ED IT PROG i
ic::=::J ~!
: SEQ G LOBA L :
~c_ ______ _ !__ ~ j
r-- sea ----,
STA RT/STOP RE C
c::=::J ~
INT Key and CARD Key
IN T C ARD
[ ( _ ~:: : . ·: _ 1 j _ ~:::::: ) ]
CO MBI ED IT COMBI
c::=::J c=:>
PR OG ED IT PR OG
c::=::J c=:>
SEQ GLOBAL
c::=::J c=:>
r-- sea--,
S TART/ S TOP REC
c::=::J ~
These are used to:
Select the Combination in the COMBINATIO N Mode.
*
Select functions in other modes.
The tens digit of the program or combination number can be "held "
while changing program or combination numbers by using the BA NK
HOLD ke y. For example , p ressi ng the BANK HOLD key once aft er
numb er 21 has been selected will allow you to select other numb ers in
the 20 -29 range simply by pressing the number that corresponds to the
ones
digit of the desired number ; in our example , pressing 3 will change
the number to 23, pressing to 7 will change it to 27, and so on. The
BANK HOLD key will be lit when the Bank Hold function is on. To
turn the function off, pres s the BANK HOLD key once more .
This key temporarily returns the Program or Combination which is
being edited in the EDIT COMBINATION or EDIT PROGRAM Mode
to the setting that existed before editing . Pressing the COMPARE key
again restore s the edited parameter values. However, data edited
before pres sing the COMPARE key will be lost if editing of other
parameter s or s witching to other modes is don e. The COMPAR E key
also functions as a MIDI panic button; in other words, when a s tuck
note occurs in sequencer play or control through MIDI IN, one press of
the COMP ARE key will turn the note off. (This can be used in any of
the modes.) When the COMPARE key is lit , the original sound can be
heard and it s parameters are dis played ; unlit , the COMPARE key
indicates that the edited sound is display ed .
The selected mode will be lit.
Press the INT key when u sing the Combination / Program /S ong data of
the
internal memory of the MIR . Press the CARD key to access the
ext
erna l (card) data.
9

Korg M1R Specifications

General

Type	Synthesizer Module
Polyphony	16 voices
Sequencer	No
MIDI	Yes
Multitimbral	8 parts
ROM	4MB
Keyboard	No
Year Released	1988
Waveforms	PCM
Outputs	4 Individual Outputs
Memory	100
Filters	Digital
Number of Effects	33
