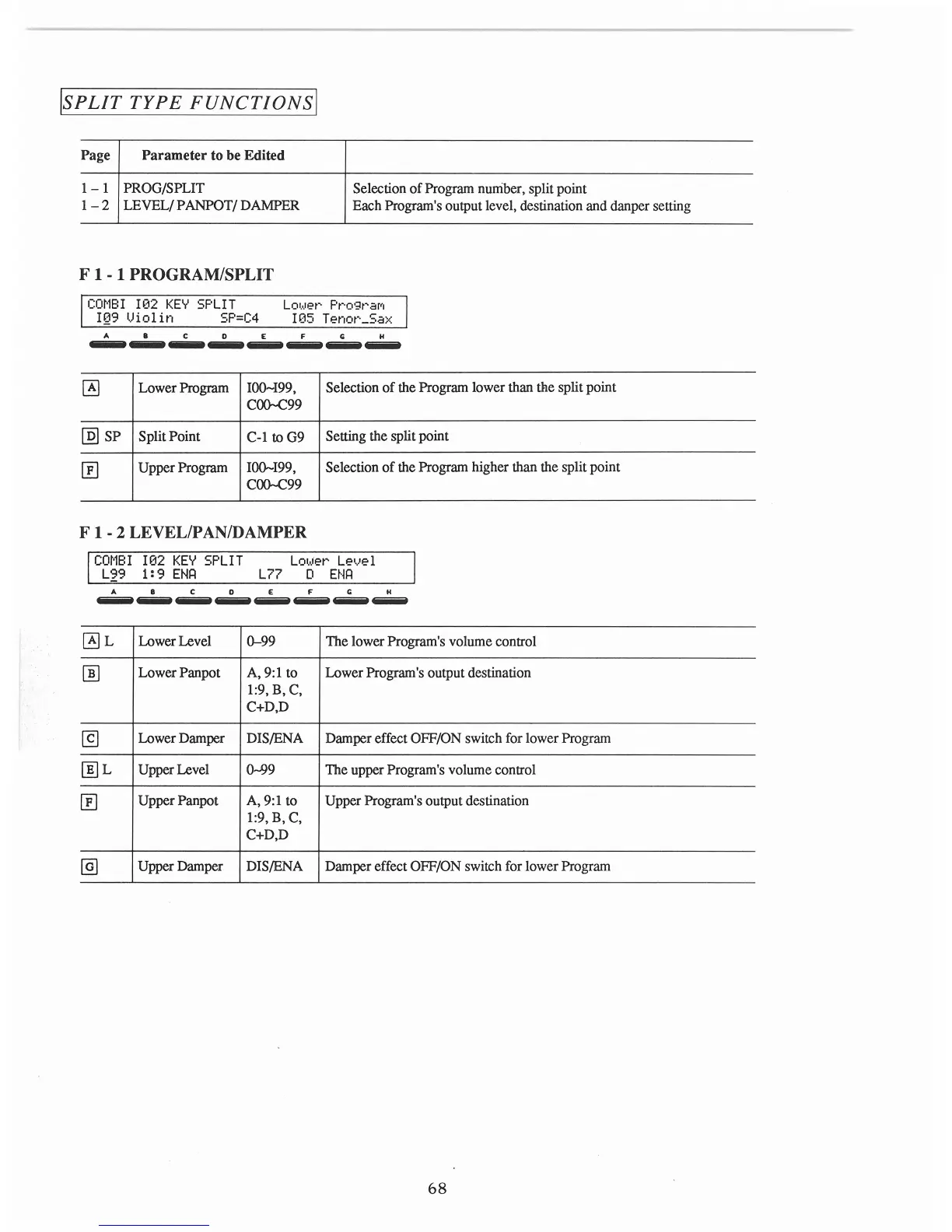

Korg M1R User Manual

lsPLii TYPE FUNCTIONsl
Page I Parameter to be Edited
1 - 1 I PROG/SPLIT
1
- 2 LEVEL/ P ANPOT/ DAMPER
Selection
of Program nurriber, split point
Each Program's output level, destination and danper setting
F 1-1 PROGRAM/SPLIT
COMB! 102 KEY SPLIT Lower Pro9raM
109 Uiolin SP=C4 105 Tenor_Sax
A B C D E F G H
tiiiiiiiiit-------
~
Lower Program I00-199,
Selection of the Program lower than the split point
COO-C99
@)SP Split Point
C-1
to G9
Setting the split point
m
Upper Program 100-199,
Selection of the Program higher than the split point
COO-C99
F 1-2 LEVEL/PAN/DAMPER
COMB I 102 KEY SPLIT Lo1 .. Jer Let.ie 1
L29 1:9 ENI=! L77 D Et-ll=I
A 8 C D E F G H
4iiiiiiiiiiiittiiiiiiiiit4iiiiiiiiiiiittiiiiiiiiit4iiiiiiiiiiiit4iiiiiiiiiiiittiiiiiiiiittiiiiiiiiit
~L
Lower Level
0--99
The lower Program's volume control
[]]
Lower Panpot A, 9:1 to Lower Program's output destination
1:9,B,C,
C+D,D
@]
Lower Damper
DIS/ENA
Damper effect OFF/ON switch for lower Program
[filL
Upper Level
0-99
The upper Program's volume control
m
Upper Panpot
A, 9:1 to
Upper Program's output destination
1:9,B,C,
C+D,D
@]
Upper Damper
DIS/ENA
Damper effect OFF/ON switch for lower Program
68

Korg M1R Specifications

General

Type	Synthesizer Module
Polyphony	16 voices
Sequencer	No
MIDI	Yes
Multitimbral	8 parts
ROM	4MB
Keyboard	No
Year Released	1988
Waveforms	PCM
Outputs	4 Individual Outputs
Memory	100
Filters	Digital
Number of Effects	33
