Korg M1R User Manual

EQUALIZER Group

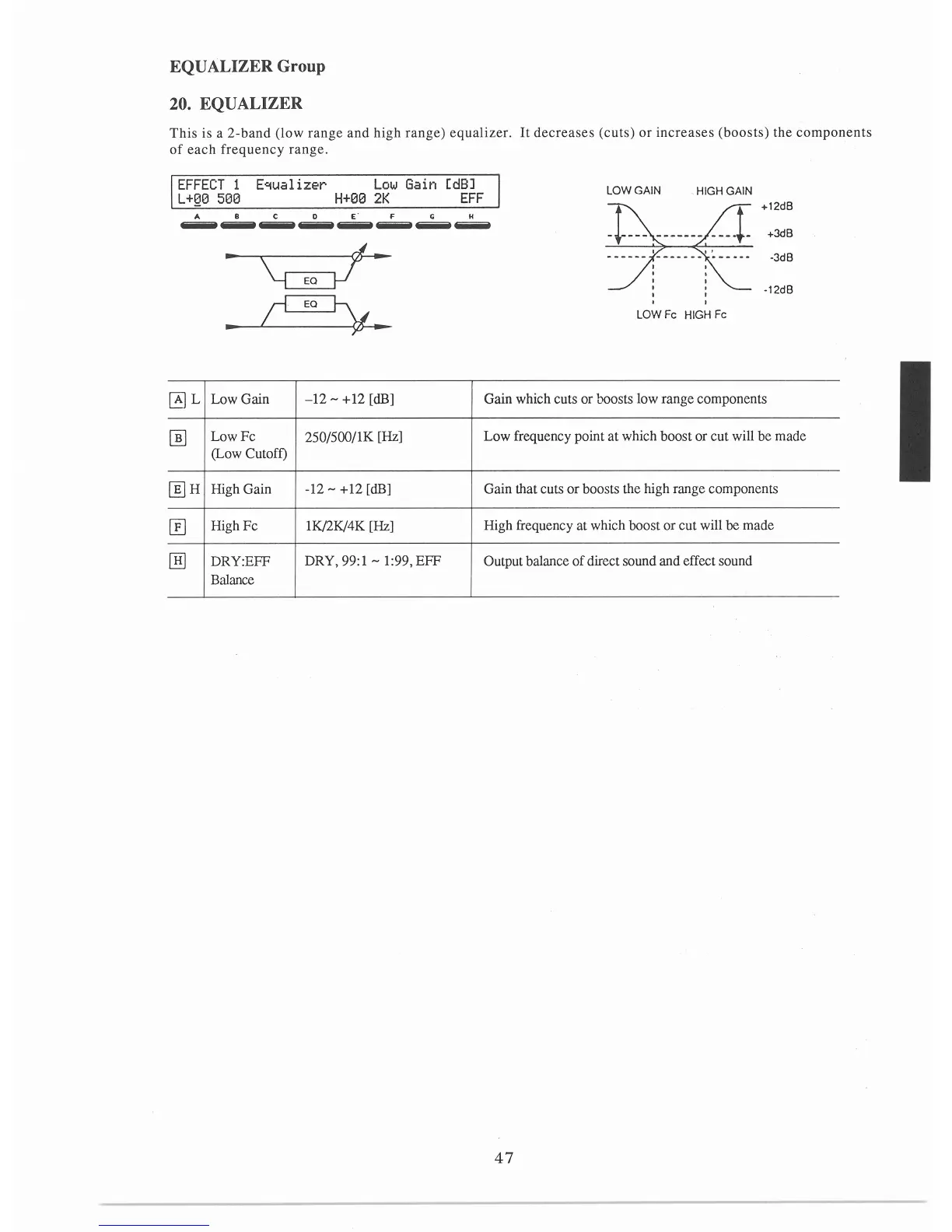

20. EQUALIZER
This is a 2-band (low range and high range) equalizer. It decreases (cuts) or increases (boosts) the components
of each frequency range.
EFFECT 1 E~ualizer Low Gain [dBJ
L+Q0 500 H+00 2K EFF
LOW GAIN
HIGH GAIN
+12dB
A B C D E" F ~ H
-------------------
+3dB
·3dB
• ~ EO r
-12dB
.. r EO ~
LOW Fe HIGH Fe
~L
Low Gain
-12 - +12 [dB]
Gain which cuts or boosts low range components
[fil
Low Fe
250/500/lK [Hz]
Low frequency point at which boost or cut will be made
(Low Cutoff)
[]JH High Gain
-12
- +12 [dB] Gain that cuts or boosts the high range components
[£]
High Fe
lK/2K/4K
[Hz]
High frequency at which boost or cut will be made
[El
DRY:EFF
DRY, 99:1
- 1:99, EFF Output balance of direct sound and effect sound
