3 -- EFFECT PARAMETERS
A two-system, two-channel Multi Digital Effect unit is built into the MIR. Each effect has a wide range of effect
types that can be selected, such as reverb, delay, chorus, flanger, phase shifter, distortion and exciter, and fine
adjustment of all effect parameters is possible.
Since all effects can be assigned separately to each Program, Combination and song track, you can use the most
appropriate effect for each and every playing situation .
*
*
The Effect functions can be considered together as an additional element in the sound making process
since effect settings can be changed for each Program .
Assigning different effects to specific Programs is possible when using Drum Kit Programs,
Combinations and the sequencer.
Editing of the effect parameters is executed in the Edit Program Mode, Edit Combination Mode or Sequencer
Mode. (Details of editing and parameters are identical.)
The Effect section is comprised of 2 effects and 2 panpots with a 4- input (A, B, C and D) and 4-output (l/L,
2/R, 3 and 4) configuration.
For the placement of the 2 effects, there are 2 operation modes : serial and parallel. (All signal routing is digital;
the signal is changed from digital to audio with the D/A converter only after passing through the Effect section .)

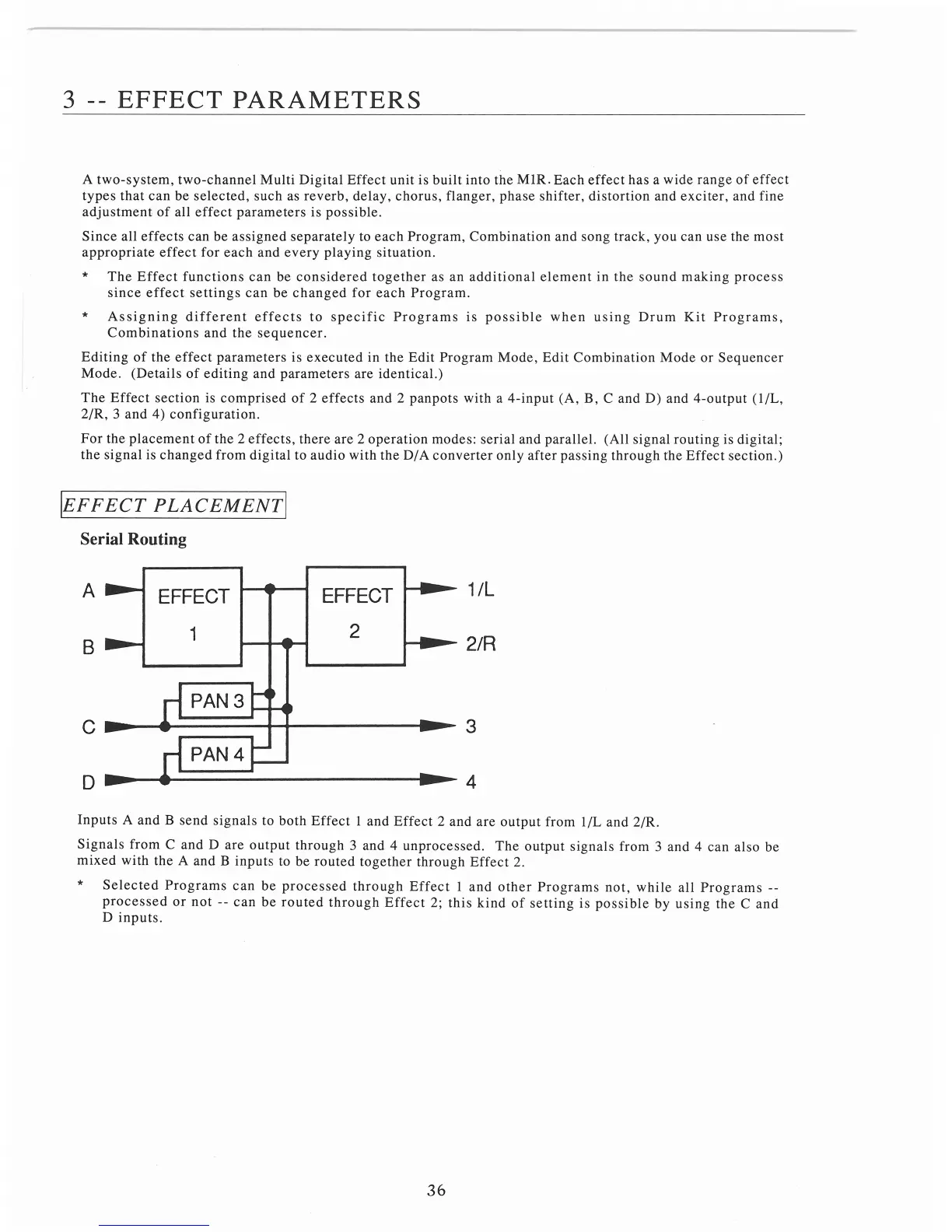

j EFFECT PLACEMENT!
Serial Routing
A -.i EFFECT I
I. I EF:ECT I :
1/L
2/R
B~
I
PAN3
C•
••
rn
•
3
PAN4
__.....----
o•
•
•
4
Inputs A and B send signals to both Effect 1 and Effect 2 and are output from l/L and 2/R.
Signals from C and D are output through 3 and 4 unprocessed. The output signals from 3 and 4 can also be
mixed with the A and B inputs to be routed together through Effect 2.
*
Selected Programs can be processed through Effect 1 and other Programs not, while all Programs --
processed or not -- can be routed through Effect 2; this kind of setting is possible by using the C and
D inputs .
36

Korg M1R Specifications

General

Type	Synthesizer Module
Polyphony	16 voices
Sequencer	No
MIDI	Yes
Multitimbral	8 parts
ROM	4MB
Keyboard	No
Year Released	1988
Waveforms	PCM
Outputs	4 Individual Outputs
Memory	100
Filters	Digital
Number of Effects	33
