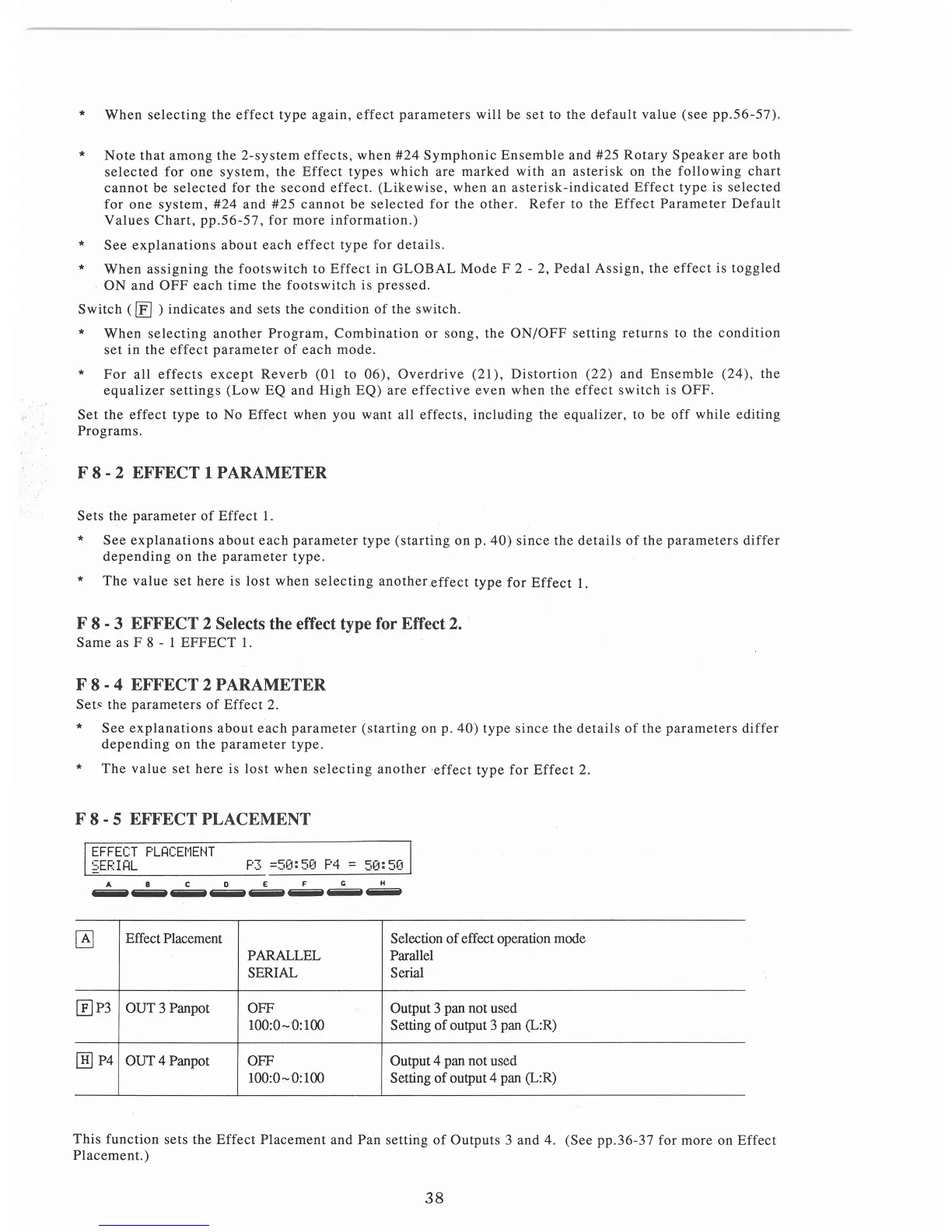

When selecting the effect type again, effect parameters will be set to the default value (see pp.56-57).
Note that among the 2-system effects, when #24 Symphonic Ensemble and #25 Rotary Speaker are both
selected for one system, the Effect types which are marked with an asterisk on the following chart
cannot be selected for the second effect. (Likewise , when an asterisk-indicated Effect type is selected
for one system, #24 and #25 cannot be selected for the other. Refer to the Effect Parameter Default
Values Chart, pp.56-57, for more information.)
See explanations about each effect type for details.
When assigning the footswitch to Effect in GLOBAL Mode F 2 - 2, Pedal Assign, the effect is toggled
ON and OFF each time the footswitch is pressed.
Switch ([El ) indicates and sets the condition of the switch.
*
*
When selecting another Program, Combination or song, the ON/OFF setting returns to the condition
set in the effect parameter of each mode.
For all effects except Reverb (01 to 06), Overdrive (21), Distortion (22) and Ensemble (24), the
equalizer settings (Low EQ and High EQ) are effective even when the effect switch is OFF.
Set the effect type to No Effect when you want all effects, including the equalizer, to be off while editing
Programs.
F 8 - 2 EFFECT 1 PARAMETER
Sets the parameter of Effect 1.
*
See explanations about each parameter type (starting on p. 40) since the details of the parameters differ
depending on the parameter type.
*
The value set here is lost when selecting another effect type for Effect 1.
F 8 - 3 EFFECT 2 Selects the effect type for Effect 2.
Same as F 8 - 1EFFECT1.
F 8 - 4 EFFECT 2 PARAMETER
Set~ the parameters of Effect 2.
*
See explanations about each parameter (starting on p. 40) type since the details of the parameters differ
depending on the parameter type .
*
The value set here is lost when selecting another 'effect type for Effect 2.
F 8 - 5 EFFECT PLACEMENT
EFFECT PLRCEMENT
SERIRL
P3 =50:50 P4 = 50:50
A B C D E F C H
--------~~~~
~
Effect Placement Selection of effect operation mode
PARALLEL Parallel
SERIAL
Serial
[E)P3
OUT3 Panpot
OFF
Output 3 pan not used
100:0-0: 100 Setting of output 3 pan (L:R)
ffi] P4 OUT4Panpot OFF Output 4 pan not used
100:0-0:100 Setting of output 4 pan (L:R)
This function sets the Effect Placement and Pan setting of Outputs 3 and 4. (See pp . 36-37 for more on Effect
Placement.)
38

Korg M1R Specifications

General

Type	Synthesizer Module
Polyphony	16 voices
Sequencer	No
MIDI	Yes
Multitimbral	8 parts
ROM	4MB
Keyboard	No
Year Released	1988
Waveforms	PCM
Outputs	4 Individual Outputs
Memory	100
Filters	Digital
Number of Effects	33
