Korg M1R User Manual

F 3 - 2 KEY WINDOW BOTTOM
COMBI 104 K.WINDOW BOTTOM T1=E.Bass
C-1 E0 G#l C3 E4 G#5 C7 E8
A B C 0 E F C H
--------
~
[fil
@]
@]
[ill
0
@]
IBl
Timbre 1
C-1- G9
Set the bottom key of each
Timbre's range
Timbre 2
C-1- G9
Timbre 3
C-1- G9
Timbre4 C-1- G9
Timbre 5
C-1 - G9
Timbre 6 C-1- G9
Timbre 7
C-1 - G9
Timbre 8
C-1 - G9

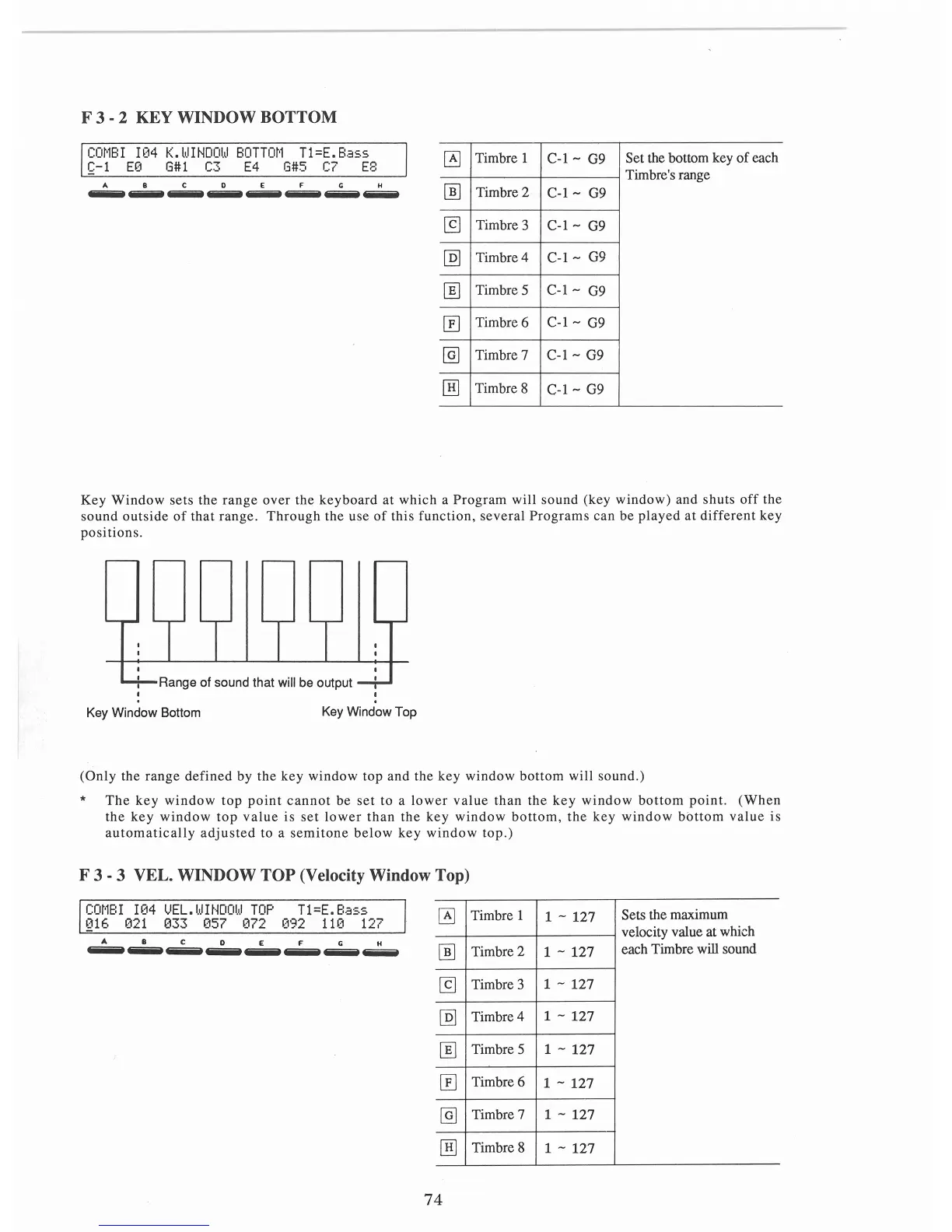

Key Window sets the range over the keyboard at which a Program will sound (key window) and shuts off the
sound outside of that range. Through the use of this function, several Programs can be played at different key
positions.
Range of sound that will be output
Key Window Bottom
Key Window Top
(Only the range defined by the key window top and the key window bottom will sound .)
*
The key window top point cannot be set to a lower value than the key window bottom point. (When
the key window top value is set lower than the key window bottom, the key window bottom value is
automatically adjusted to a semitone below key window top.)
F 3- 3 VEL. WINDOW TOP (Velocity Window Top)
COMBI 104 UEL.WINDOW TOP T1=E.8ass
Q16 021 033 057 072 092 110 127
A B C 0 E F G H
--------
~
[fil
@]
@]
[ill
0
@]
IBl
74
Timbre 1
1 - 127
Sets the maximum
velocity value at which
Timbre
2
1 - 127
each Timbre will sound
Timbre 3
1 - 127
Timbre4
1 - 127
Timbre 5 1 - 127
Timbre 6
1 - 127
Timbre 7
1 - 127
Timbre 8
1 - 127
