6.3 Mounting the electronic unit to the wall
6.3 Mounting the electronic unit to the wall
Personnel qualification: o Electrician
Personal protective equipment: o Work clothing
Aids: o KRAL tool set
For wall mounting a universal mount is available as an accessory Ä Accessories,Page42.
2
1

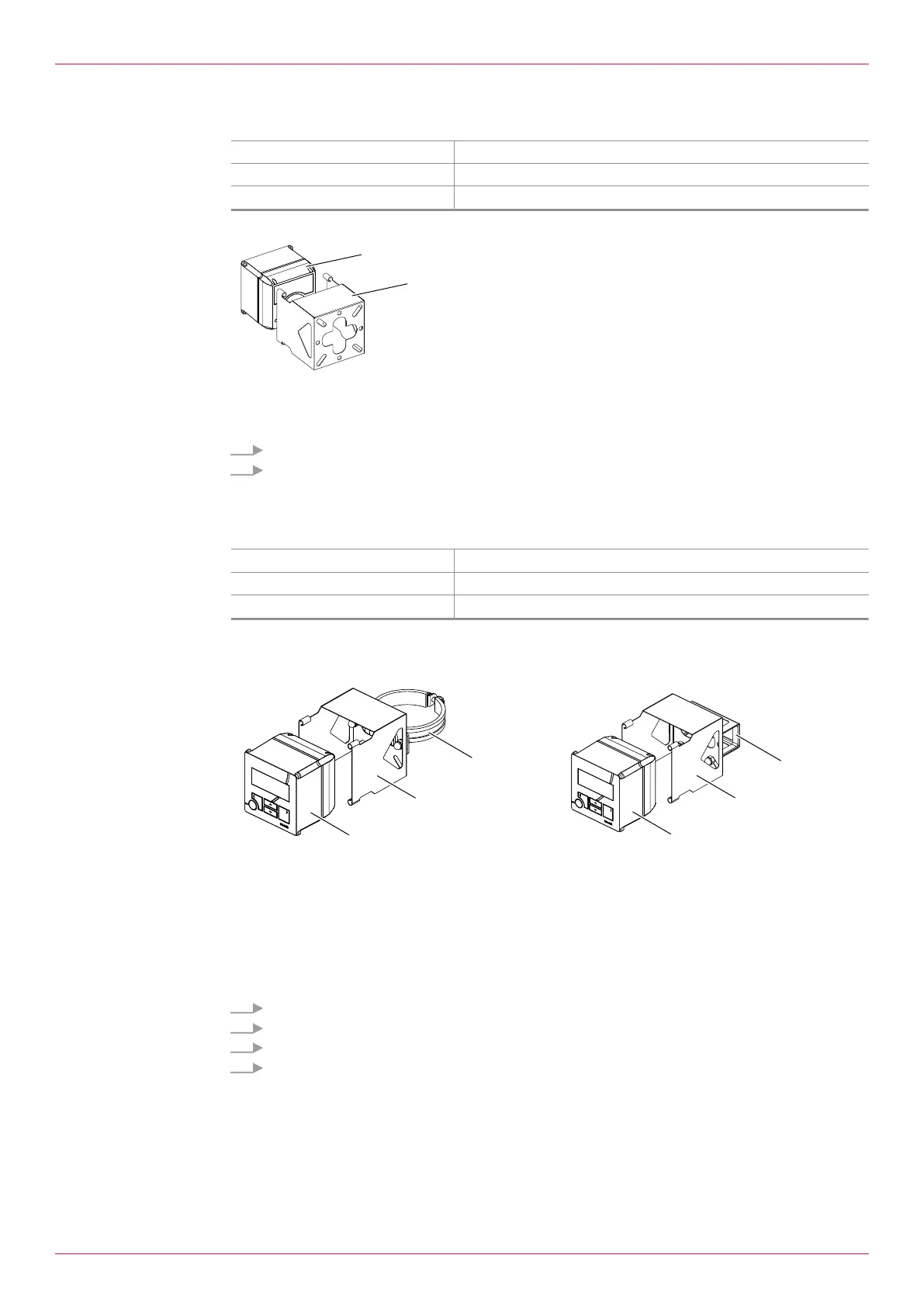

1 Electronic unit
2 Universal mount
Requirement:
ü Universal mount mounted to the wall
ü All cables have been shortened and connected
1. Slide the electronic unit1 into the universal mount2.
2. Fasten the electronic unit using the supplied screws, washers and wedge lock washers.
ð The electronic unit is ready to operate after the power supply has been switched on.
6.4 Mounting the electronic unit at the pipe/flowmeter
Personnel qualification: o Electrician
Personal protective equipment: o Work clothing
Aids: o KRAL tool set
The electronic unit can be mounted to the pipe or on the flowmeter by means of the universal mount
and the corresponding fixing kit. The required fixing kit is available as an accessory. Ä Accessor-
ies,Page42
1
2
3
1
2
4
1 Electronic unit
2 Universal mount
3 Fixing kit for mounting at pipe (for flowmeter OMG)
4 Fixing kit for flowmeter (for flowmeter OME)
Requirement:
ü All cables have been shortened and connected
1. Mount the universal mount2 on the fixing kit3 or4.
2. Mount the fixing kit including universal mount to the pipe or flowmeter.
3. Slide the electronic unit into the universal mount.
4. Fasten the electronic unit using the supplied screws, washers and wedge lock washers.
ð The electronic unit is ready to operate after the power supply has been switched on.
