2 Safety
2.1 Proper use
2 Safety
2.1 Proper use
o The electronic unit is provided for usage with a KRAL flowmeter.
o Use the electronic unit only within the operating limits specified in the "Technical data" chapter.
2.2 Foreseeable misuse
o Any use that extends beyond the proper use or any other use is misuse.
2.3 Fundamental safety instructions
The following safety instructions must be observed:
o Read the operating instructions carefully and observe them.
o Have work only carried out by qualified personnel/trained personnel.
o Wear personal protective equipment and work carefully.
o Observe the operating instructions of the flowmeter and of the sensors.
3 Technical data

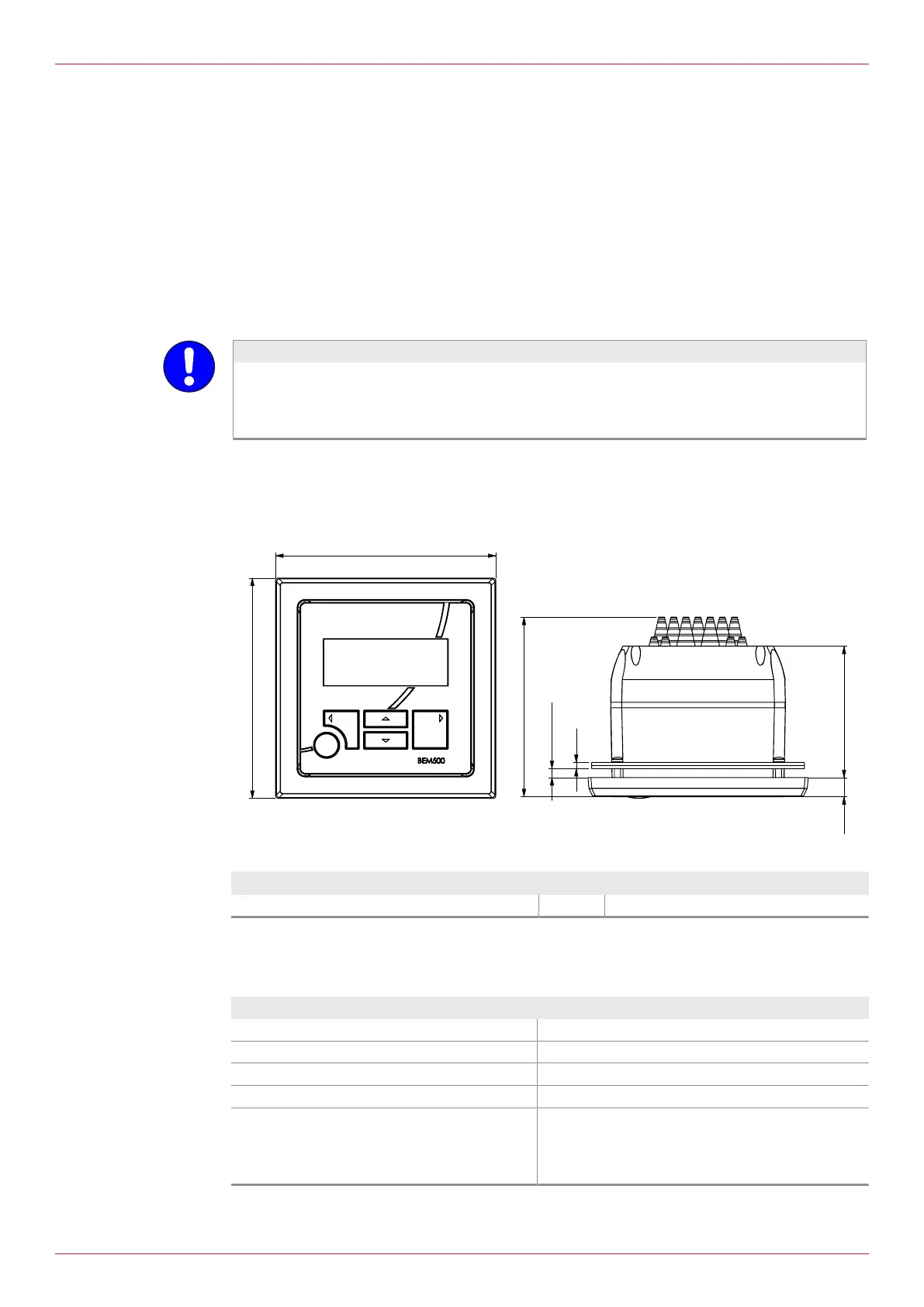

3.1 Dimensional drawing
145
145
118
86,5
12,5
0,5 - 5,0
4
Fig.1: Dimensional drawing
Parameter Unit Value
H x W x D [mm] 145 x 145 x 118
Tab.2: Dimensions
3.2 Display
Designation Data
Text display 4lines/20characters
Updating rate 100ms
Background illumination 10 levels, can be adjusted via software
Contrast 10 levels, can be adjusted via software
Language selection
o German
o English
o French
o Spanish
Tab.3: Display
Operating instructions
OIE 12en-GB Edition 2020-03
5
