15.1.1 Fixing kits
The electronic unit can be installed by various methods. In addition to the mounting frame that forms
part of the scope of delivery, diverse fixing kits for mounting the electronic unit are available as ac-
cessories.
15.1.2 Universal mount fixing kit
Fixing kit Application Article No. Suitable for
Wall mounting UZA 20 BEM300
BEM500
117,2
96
96
70
70
117
100
100
8,5
9

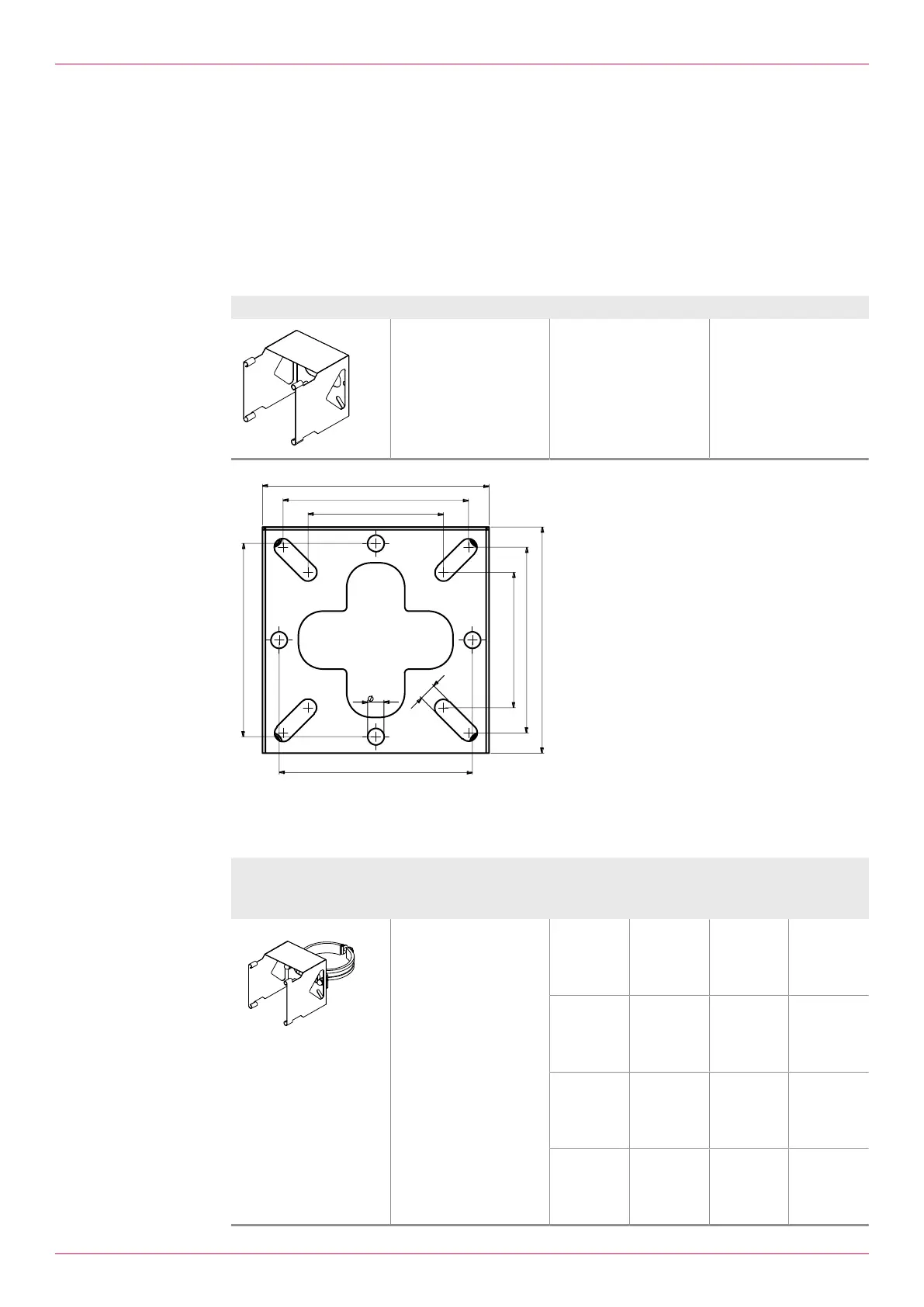

Fig.3: Mounting dimensions of universal mount
UZA20
Mounting: M8
15.1.3 Fixing kit for pipe mounting/mounting on OMG
Fixing kit Application Article No. Suitable
for
Pipe diameter [mm]
min. max.
Pipe mounting/mounting
on flowmeter OMG
UZA 28 BEM300/
OMG-013
BEM500/
OMG-013
85 92
UZA25 BEM300/
OMG-020
BEM500/
OMG-020
72 80
UZA26 BEM300/
OMG-032
BEM500/
OMG-032
102 110
UZA27 BEM300/
OMG-052
BEM500/
OMG-052
115 122
