2 INSTALLATION
12
OPTISONIC 3400
www.krohne.com 02/2015 - QS OPTISONIC 3400 - 4002741204-R04 en
2.8 Installation conditions
2.8.1 Inlet and outlet
2.8.2 Bends in 2 or 3 dimensions
2.8.3 T-section

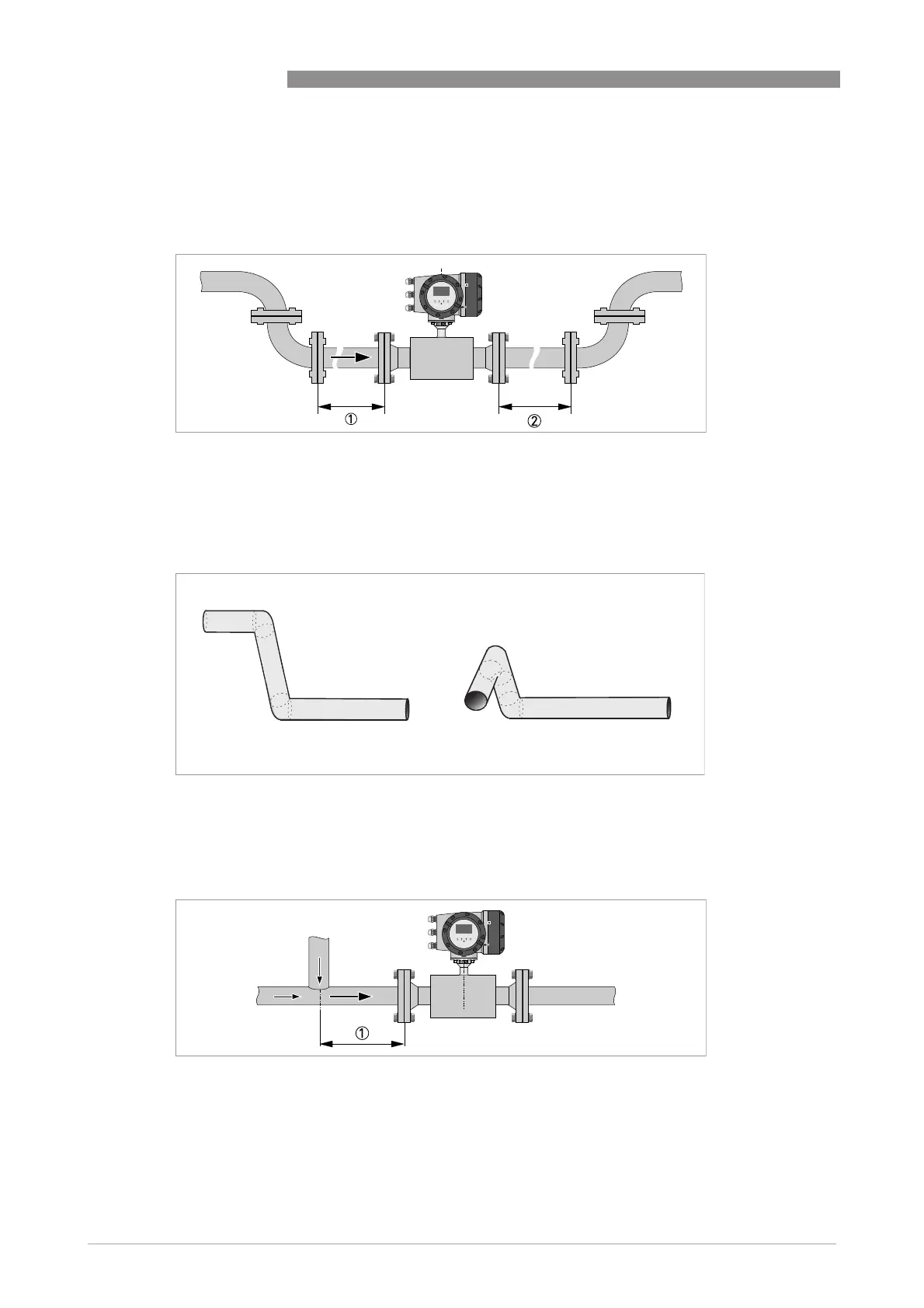

Figure 2-6: Recommended inlet and oulet
1 Refer to chapter "Bends in 2 or 3 dimensions"
2 ≥ 3 DN
Figure 2-7: 2 and 3 dimensional bends, in front of flowmeter
1 Bends in 2 dimensions: ≥ 5 DN; bends in 3 dimensions: ≥ 10 DN
Figure 2-8: Distance behind a T-section
1 ≥ 5 DN
