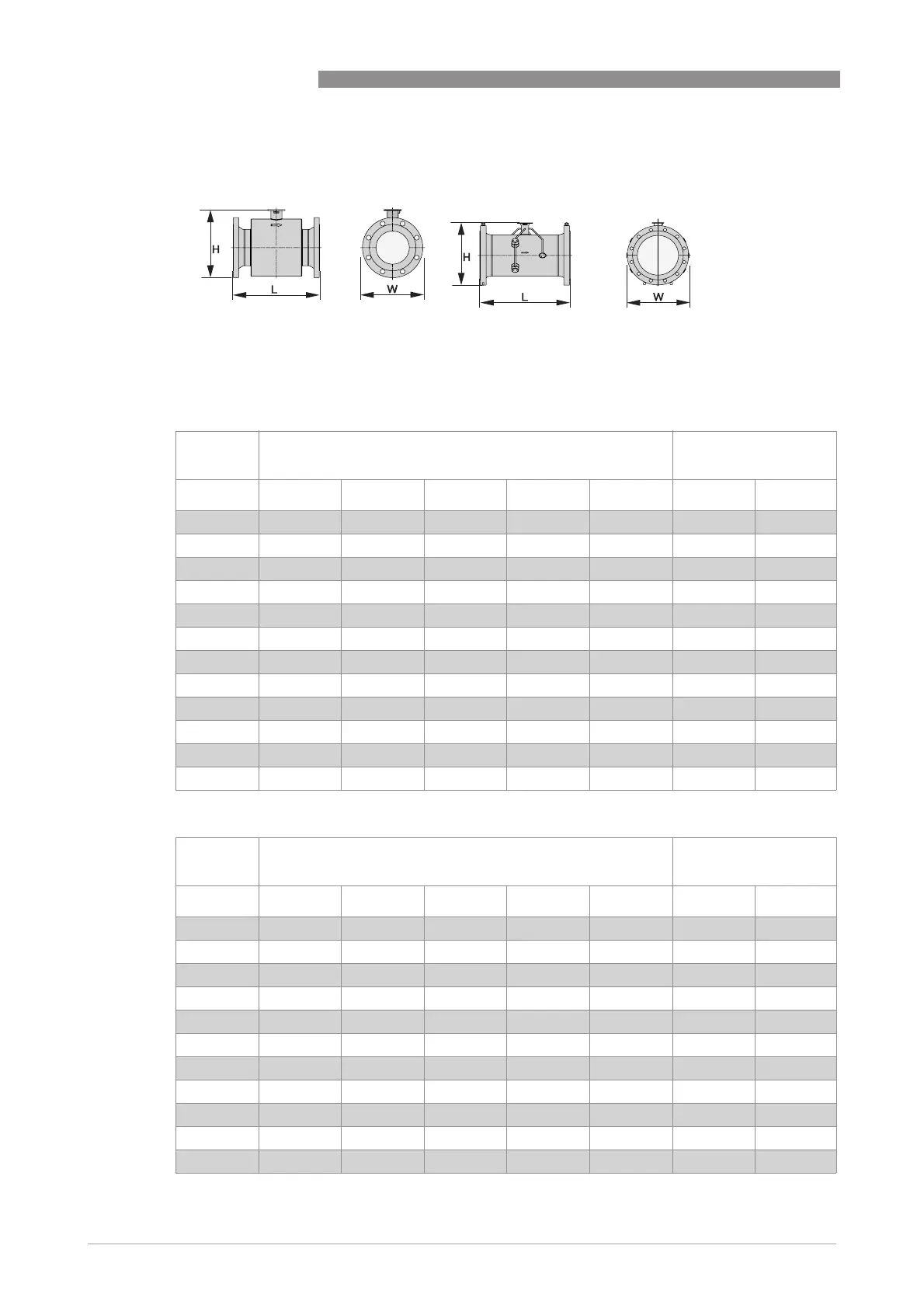

4.3 Standard flow sensor
The following dimensions are applicable for the OPTISONIC 3400 in compact and remote
versions;
EN1092-1; Standard variant - PN40
EN1092-1; Standard variant - PN25
Nominal
size
Dimensions [mm], Approx weight
[kg]
DN L H W Di CS Di SS CS SS
25 250 155 115 27 27 8 8
32 260 156 140 35 35 9 10
40 270 173 150 39 41 11 14
50 300 193 165 53 53 14 17
65 300 203 185 63 63 18 19
80 300 238 200 78 81 17 18
100 350 268 235 102 104 24 24
125 350 297 270 127 130 30 29
150 400 326 300 154 158 37 37
200 400 427 375 207 207 63 63
250 500 492 450 260 260 100 100
300 500 547 515 308 308 140 140
Nominal
size
Dimensions [mm] Approximate weight
[kg]
DN L H W Di CS Di SS CS SS
100 350 268 235 102 104 24 23
125 350 297 270 127 130 30 29
150 400 326 300 154 158 37 37
200 400 419 360 207 207 61 61
250 450 479 425 255 255 80 80
300 500 532 485 305 305 102 102
350 500 539 555 330 330 126 126
400 600 596 620 379 379 172 167
450 700 654 670 441 441 199 199
500 700 707 730 488 488 252 252
600 800 817 845 588 588 335 355
