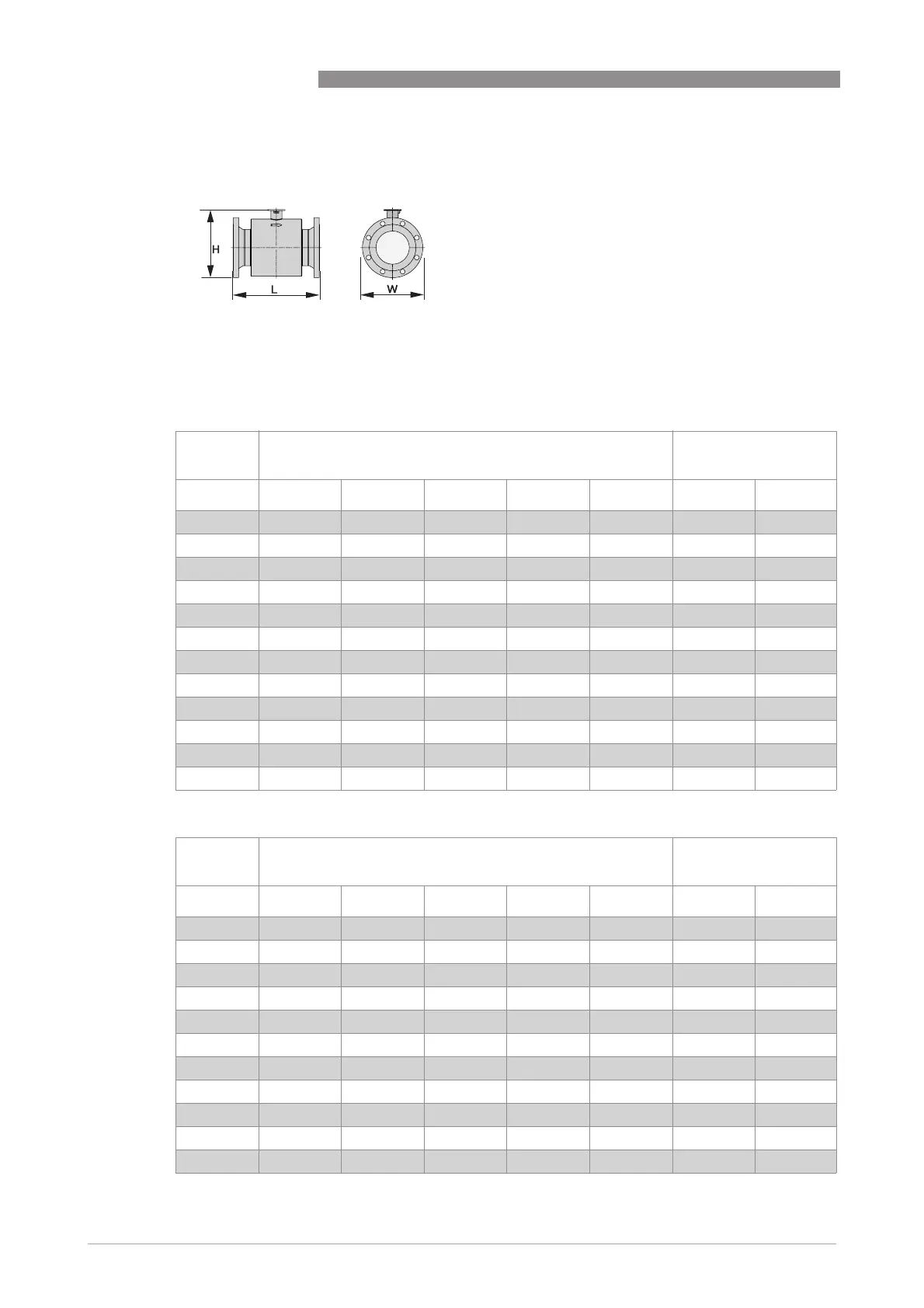

4.4 Variant flow sensor; XXT - High Viscosity and Cryogenic (SS) versions.
The following dimensions are applicable for the OPTISONIC 3400 in compact and remote
versions;
EN1092-1; Extended temperature - High Viscosity and Cryogenic (SS) version - PN40
EN1092-1; Extended temperature - High Viscosity and Cryogenic (SS) version - PN25
Nominal
size
Dimensions [mm] Approx weight
[kg]
DN L H W Di CS Di SS CS SS
25 250 155 115 27 27 8 8
32 260 156 140 35 35 10 10
40 270 173 150 39 41 11 13
50 300 193 165 53 53 15 16
65 300 203 185 63 63 19 19
80 350 238 200 81 81 17 18
100 350 268 235 104 104 24 23
125 350 297 270 130 130 30 29
150 400 326 300 158 158 37 36
200 500 427 375 207 207 69 69
250 550 492 450 260 260 101 101
300 550 547 515 308 308 137 137
Nominal
size
Dimensions [mm] Approximate weight
[kg]
DN L H W Di CS Di SS CS SS
100 350 268 235 104 104 29 29
125 350 297 270 130 130 29 29
150 400 326 300 158 158 38 38
200 500 419 360 207 207 61 61
250 550 479 425 260 259 82 82
300 550 532 485 308 308 108 108
350 600 594 555 338 338 148 148
400 650 652 620 389 389 186 186
450 700 702 670 439 439 223 223
500 750 752 730 488 488 290 290
600 800 857 845 586 586 362 362
