ELECTRICAL CONNECTIONS
20
OPTISONIC 3400
www.krohne.com 02/2015 - QS OPTISONIC 3400 - 4002741204-R04 en
CAUTION!
To ensure smooth functioning, always use the signal cable(s) included in the delivery.

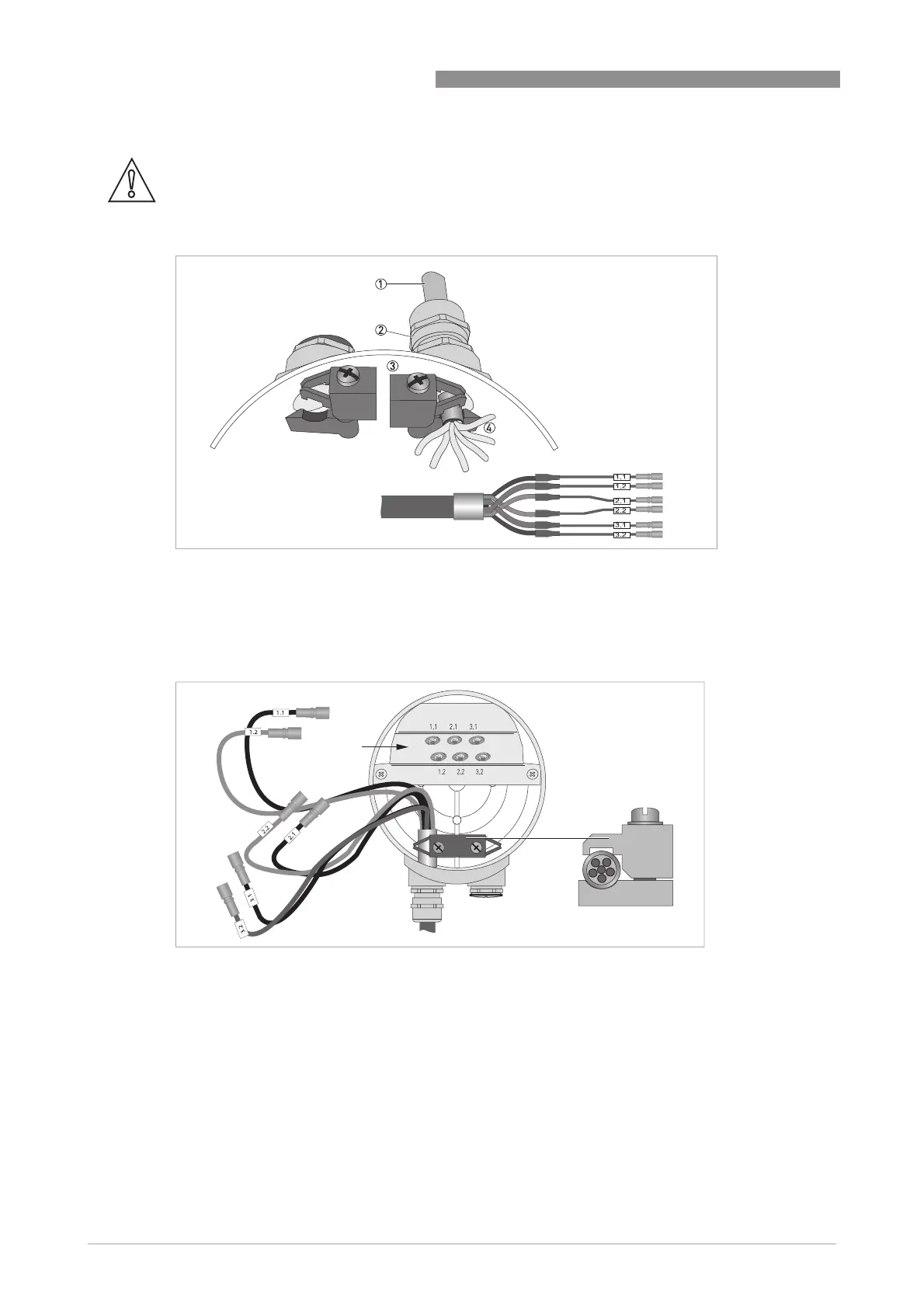

Figure 3-2: Clamp the cables on the shielding bush
1 Cables
2 Cable glands
3 Grounding clamps
4 Cable with metal shielding bush
Electrical connection - Standard version
Figure 3-3: Connect the cables in the connection box of the flow sensor
