III - 2
Preparing for Operation

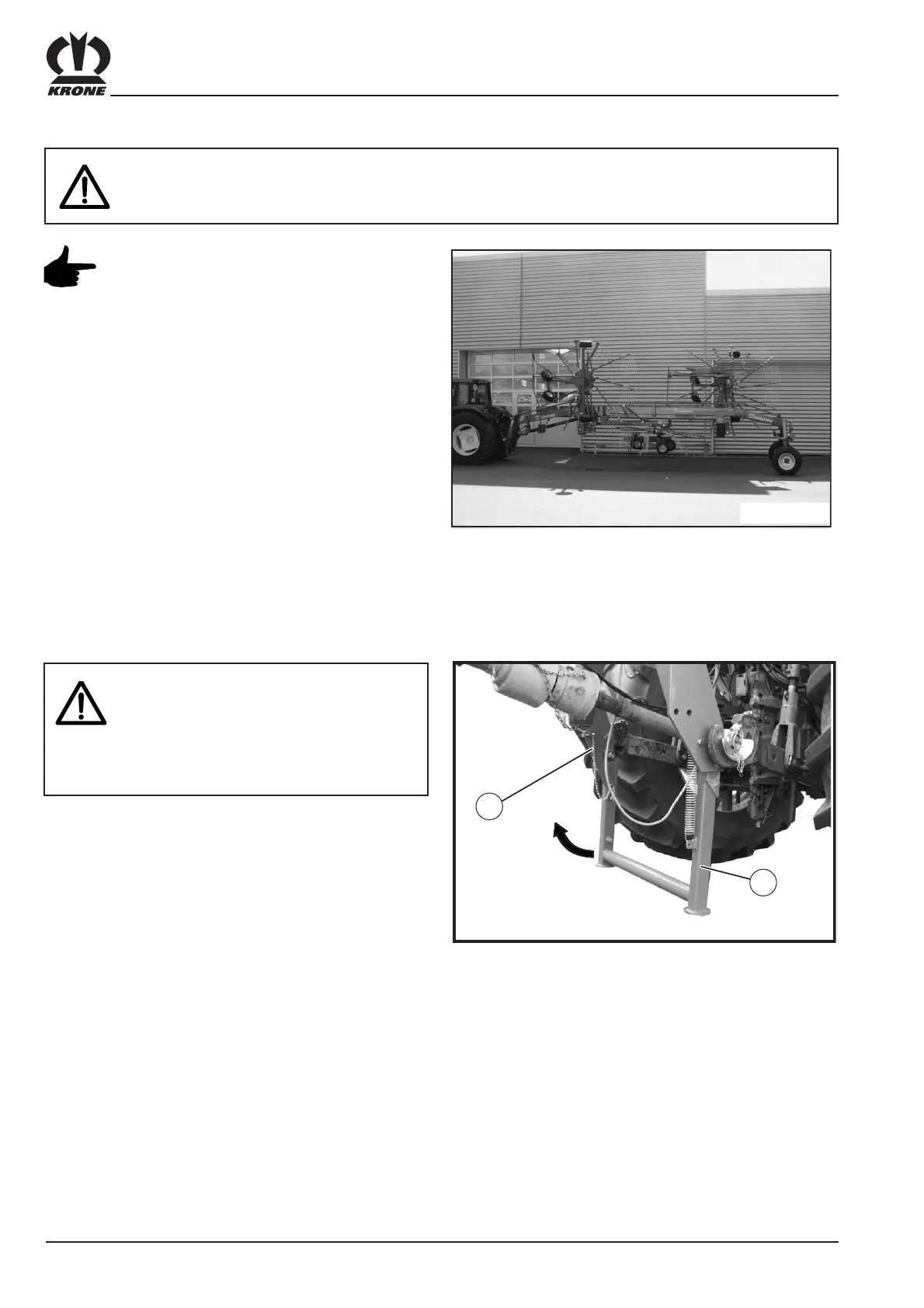

3.3 Attachment of swather to tractor
It is assumed in the following description,
that after final assembly, the swather is in
the transport position.
• During all care, maintenance, repair and assembly work on the rotary swather, switch off the
PTO, shut down the engine, remove the ignition key. Secure the tractor and rotary swather
against rolling away!
• When attaching the rotary swather
make sure that no-one remains
between the implement and the
tractor.
• No-one may remain in the slewing
range of the swather disk arms!
Slew the supporting foot (1) by 90° to the rear and lock
in this position with the brace (2).
Attach rotary swathers with the lower link arm pins to the
tractor and raise them a little.
3.3.1 Attachment to the tractor lower link
arms
SW101004
2
1
SW101016
