IV - 8
Handling the swather when in use
• Disengage the lock via the actuating cable and set
the tractor hydraulics actuation lever to „Lift“.
• Keep pulling the actuating cable until the pin on the
swather arm has gone past the engagement point for
the working position. Raise the swather arms until the
lock has snapped into the transport position.
4.4.3 Lifting the rotor arms
Make sure that the transport position
snaps in correctly and that the
actuating cable is not under tension.
• Activate the single-action control device on the
tractor (lowering) and retract the front left and rear
right rotors all the way.

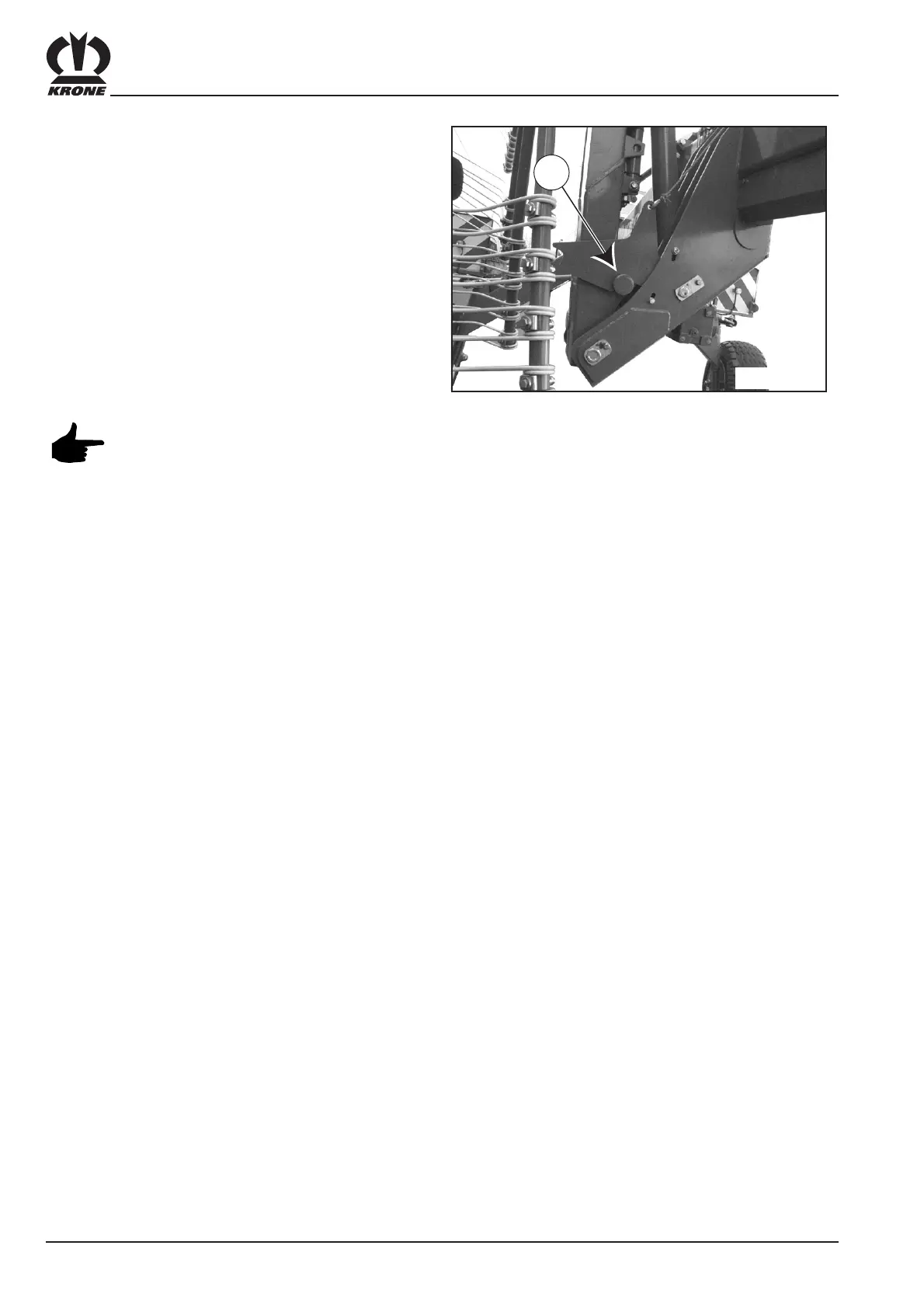

• Close the shut-off valve
SW101021
1
