III - 3
Preparing for Operation

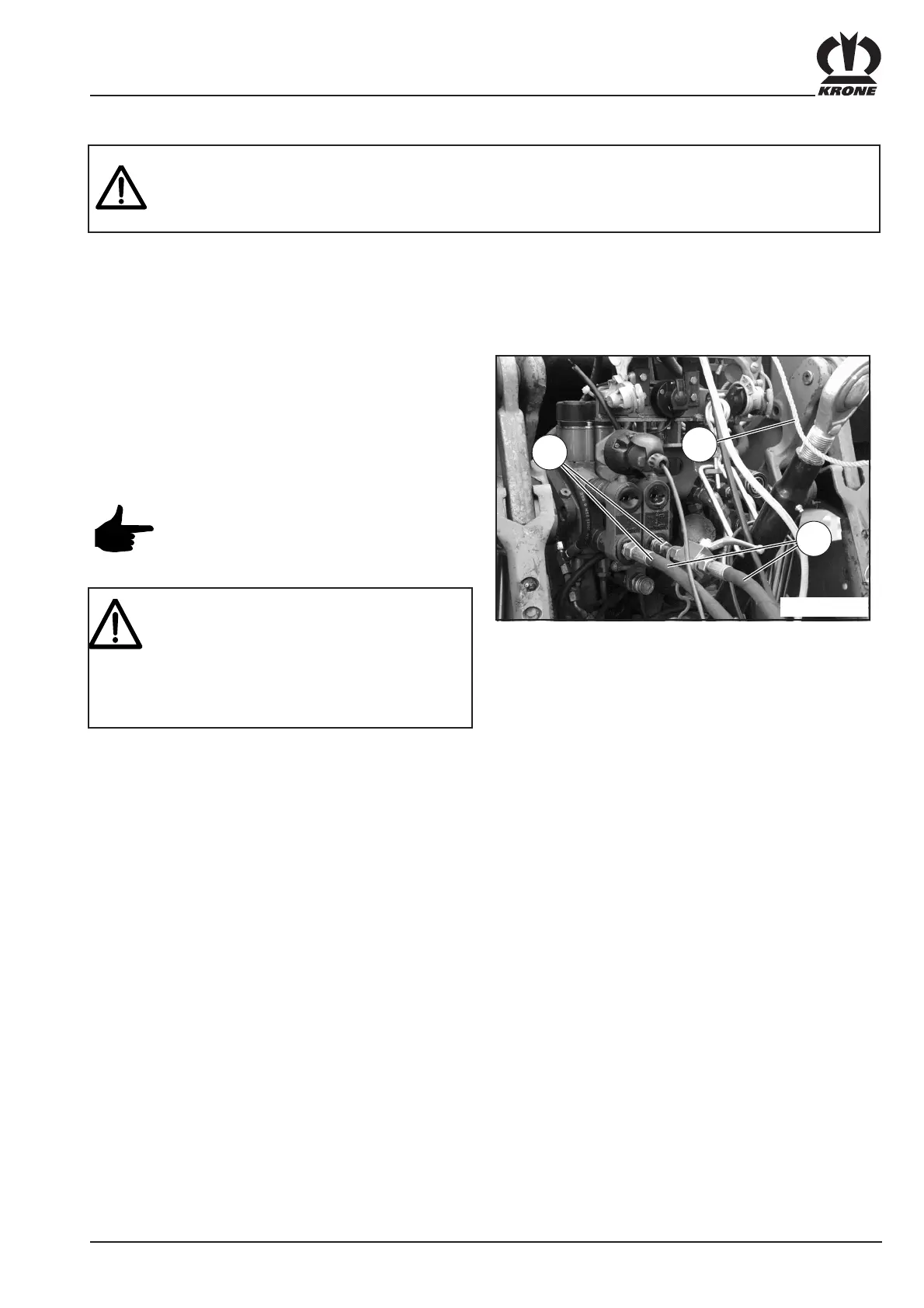

3.3.2 Hydraulic connection Swadro 1010
• When connecting the hydraulic hoses to the tractor hydraulics relieve all pressures from the
system at either side.
• When connecting the rapid action couplings, make sure that they are clean and dry. Soiling will
result in leaks and damage.
SW101005
1
2
3
When coupling the hydraulic hose be
sure that the hydraulic control unit is set
to floating or lowering position.
• The control cable must be so
positioned that it can not cause any
accidental movements in any transport
or working positions
• The control cable does not come into
contact with the tractor tyres.
• The hydraulic hoses (1) are coupled into the coupling
sleeve (2) of the control valve.
• The operating rope (2) should be fixed at a
convenient point on the tractor.
For the operation of the rotary swather, the tractor must
be fitted with two single acting control valves
