Handling the swather when in use
SW101042
5
2
1
3
4
4
Pos.I
Pos.II

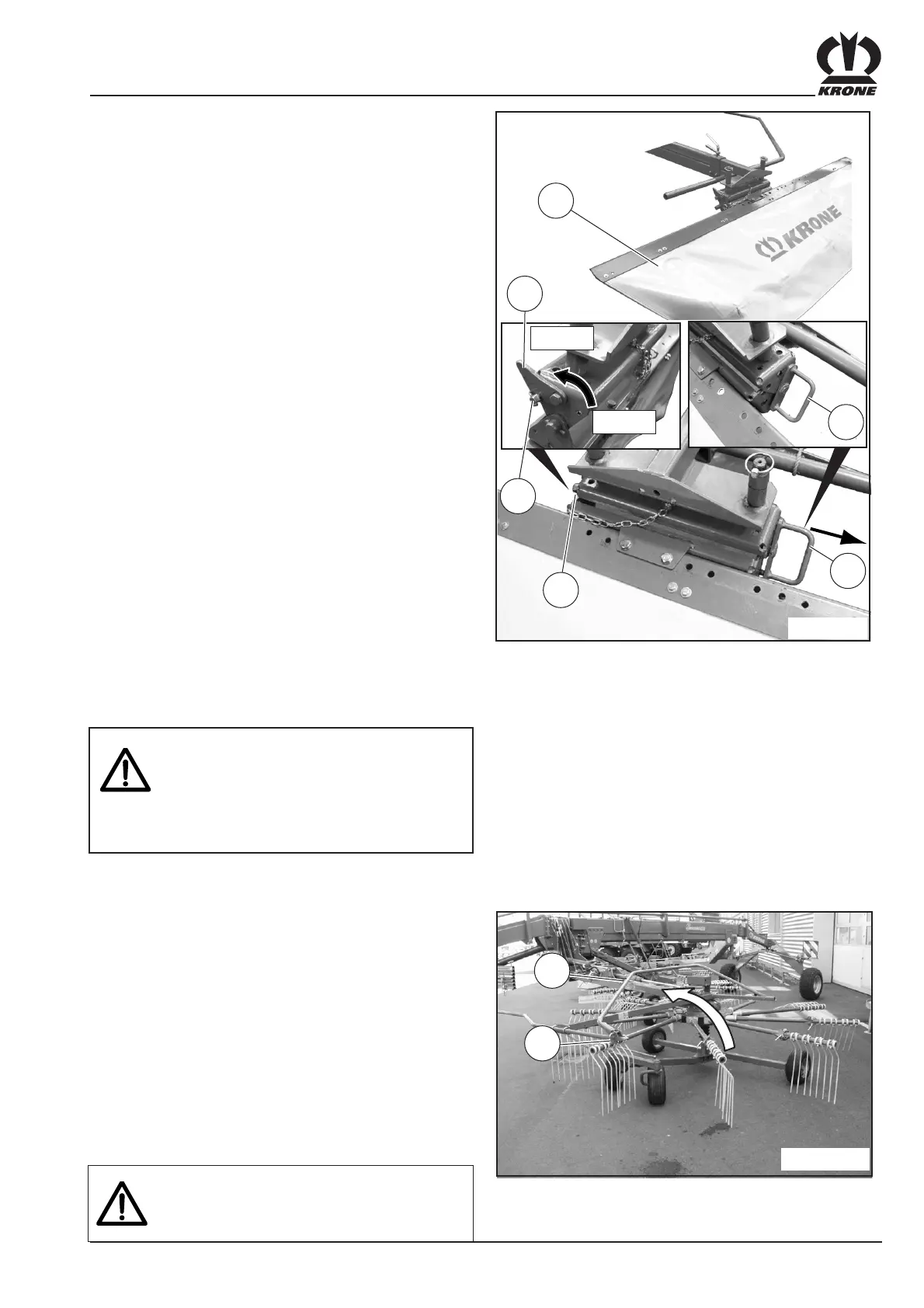

4.3.4 Swaths without a swath cloth
• Remove the linch pin (1).
• Rotate the safety flap (2) back to position (II) and
secure it in place with the linch pin (1).
• Pull the spring cotter pin (3) away from the locking
bolt (4).
• Pull the locking bolt (4) to the right and rotate the
swath cloth (5) up.
• Use the locking bolt (4) to adjust the swath cloth and
secure in place with the spring cotter pin (3).
Remove the bolt (1) that secures the outer hoop guard
(2) and fold the hoop guard from working position into
transport position.
Reinsert pin at the hinge point of the guard bar.
4.4 Conversion from working to
transport position
• Before raising the swather disk above
the working position, turn off the PTO
shaft and wait until the swather disks
comes to a stand still.
• Ensure that nobody is within the
folding range of the rotors.
4.4.1 Moving the external guard bars into
transport position
SW101019
1
2
Do not touch the guard bars near the
hinge points. Danger of bruising!
Guard front left
