IV - 6

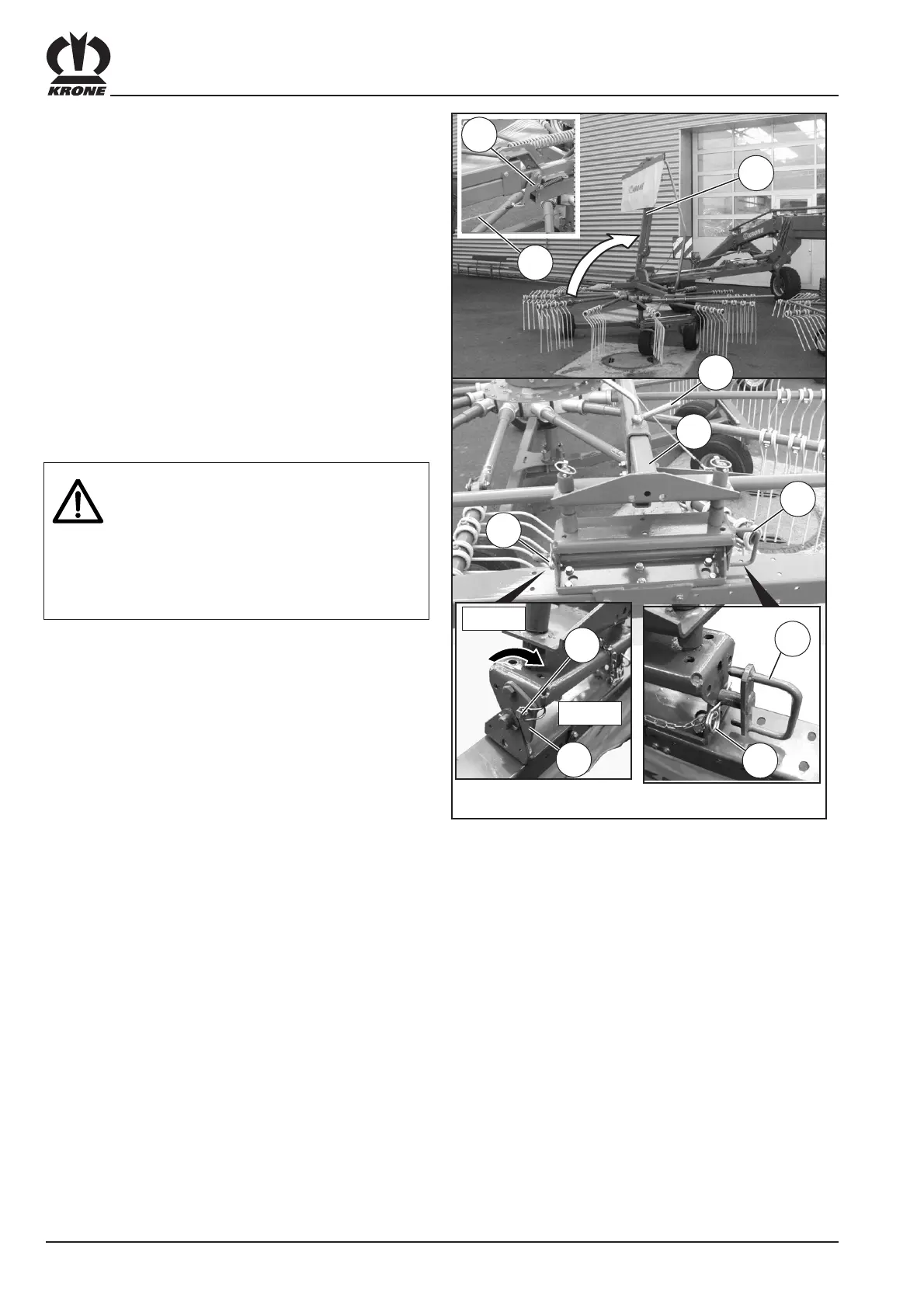

Handling the swather when in use
Guard back right
• Loosen the set screw (5).
• Insert the swath cloth (6).
• Tighten the set screw (5) and secure it in place.
• Pull the spring cotter pin (4) away from the locking
bolt (3).
• Pull the locking bolt (3) to the right and secure in
place with spring cotter pin (4) (swath cloth
suspended and swinging freely).
• Rotate the safety flap (7) forward to position (I) and
secure it in place with the linch pin (8).
• Loosen the lock (2) by pulling on the cable (7) and
swing the hoop guard (1) up.
• Do not touch the guard bars near the
hinge points. Danger of bruising!
• Before switching from the working to
the transport position, make certain the
swath cloth (1) is suspended and
swinging freely and the safety flap (7) is
in position (I).
1
2
3
4
SW101020
9
5
6
Pos.I
Pos.II
4
3
7
8
