Krone Swadro 1010 - Rear Drive Gear

VII - 4
Lubrication

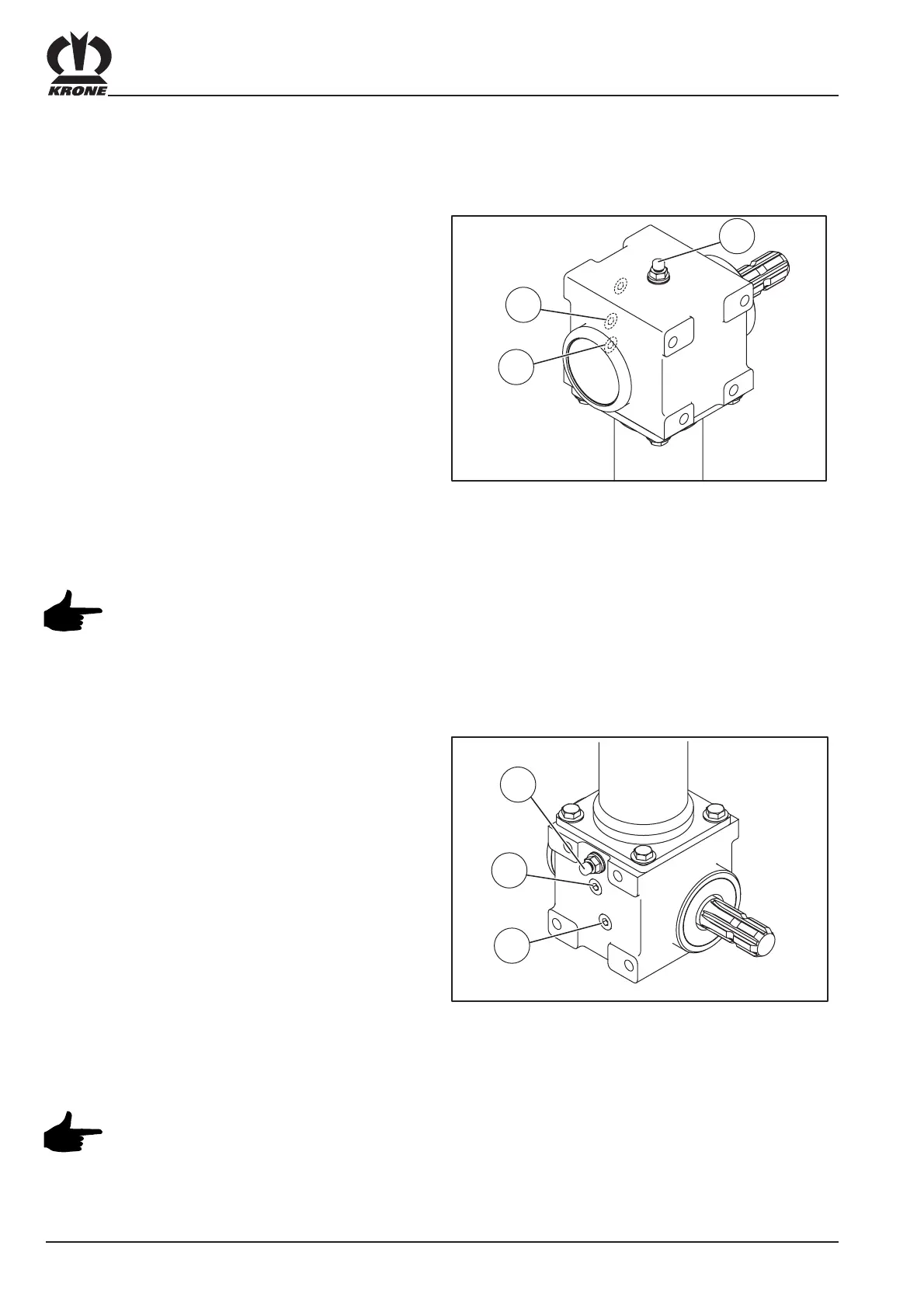

7.6 Rear drive gear
The rear drive gear consists of an upper and lower
gearbox.
Upper part of the rear drive gear
Oil inspection: • Intervals see section 7.3
• Remove check screw (1)
• Oil level up to bore hole
• If necessary, top up oil (SAE 90), fit
check screw (1)
Oil change: • Intervals see section 7.3
• Unscrew the oil draining screw (2)
• Collect the used oil in a suitable
collection vessel.
• Fit oil draining screw(2)
• Fill oil (3) (Oil level up to bore hole (1))
Oil quality: see section 7.3
Tank capacity: see section 7.3
The used oil must be correctly
disposed of!
Lower part of the rear drive gear
Oil inspection: • Intervals see section 7.3
• Remove check screw (1)
• Oil level up to bore hole
• If necessary, top up oil (SAE 90), fit
check screw (1)
Oil change: • Intervals see section 7.3
• Unscrew the oil draining screw (2)
• Collect the used oil in a suitable
collection vessel.
• Fit oil draining screw(2)
• Fill oil (3) (Oil level up to bore hole (1))
Oil quality: see section 7.3
Tank capacity: see section 7.3
The used oil must be correctly
disposed of!
SW101031
3
1
2
SW101030
3
1
2
