Krone Swadro 1010 - Moving the External Guard Bars into Working Position

IV - 4
Handling the swather when in use

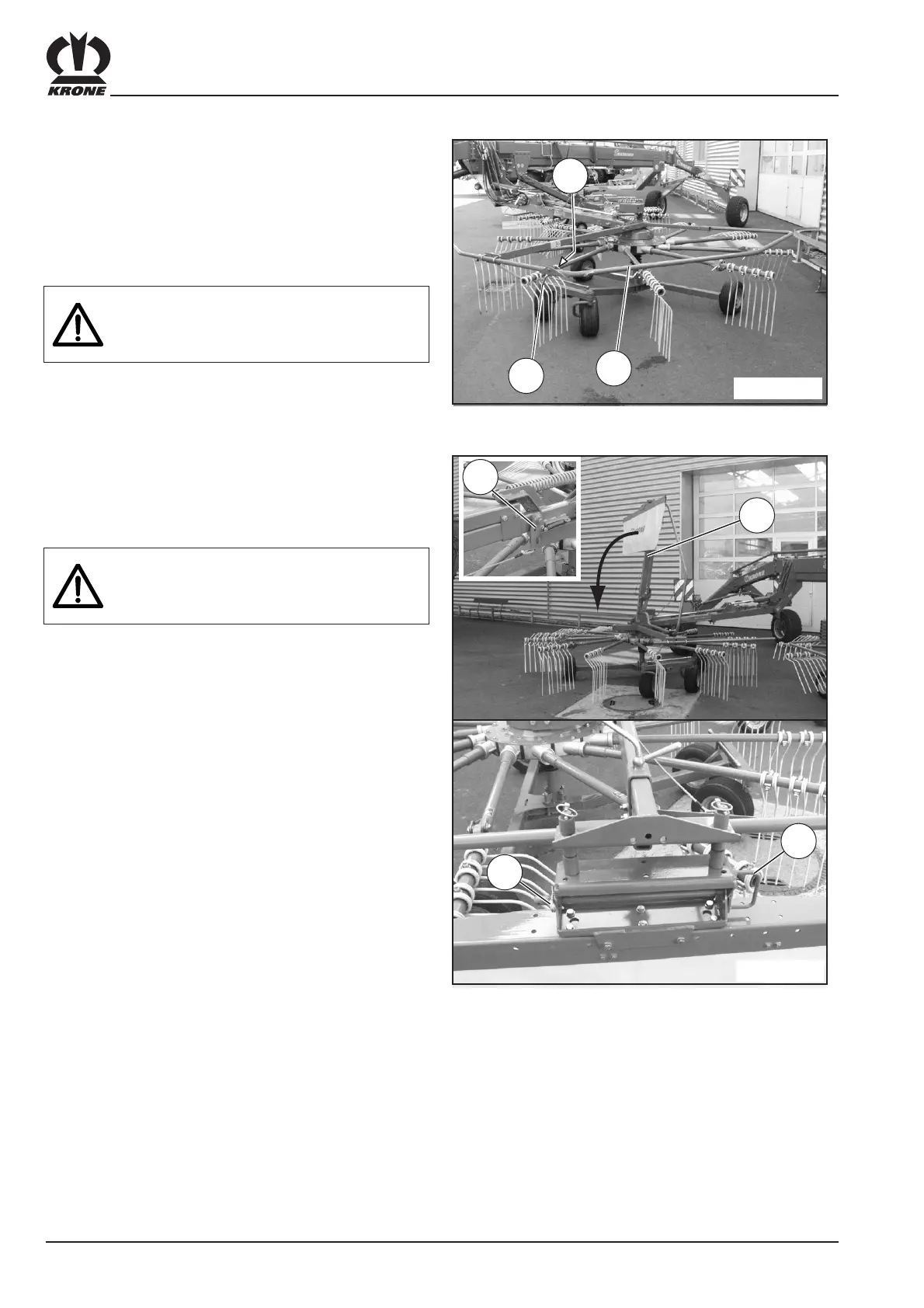

4.3.3 Moving the external guard bars into
working position
Swivel the side hoop guard (1) on the front left of the
machine outward in the working position and lock it in
place with a hitch pin (2). Secure hitch pin (2) with
hairpin clip (3).
Do not touch the guard bars near the
hinge points. Danger of bruising!
Guard front left
Guard back right
• Swivel the side hoop guards (1) on the rear right of
the machine outward in the working position until the
lock (2) snaps into place.
• Use the locking bolt (3) to adjust the swath cloth and
secure in place with the spring cotter pin (4).
Do not touch the guard bars near the
hinge points. Danger of bruising!
