A - 2
Appendix
The front and rear rotor running gears
must be switched while the machine
is in working position.

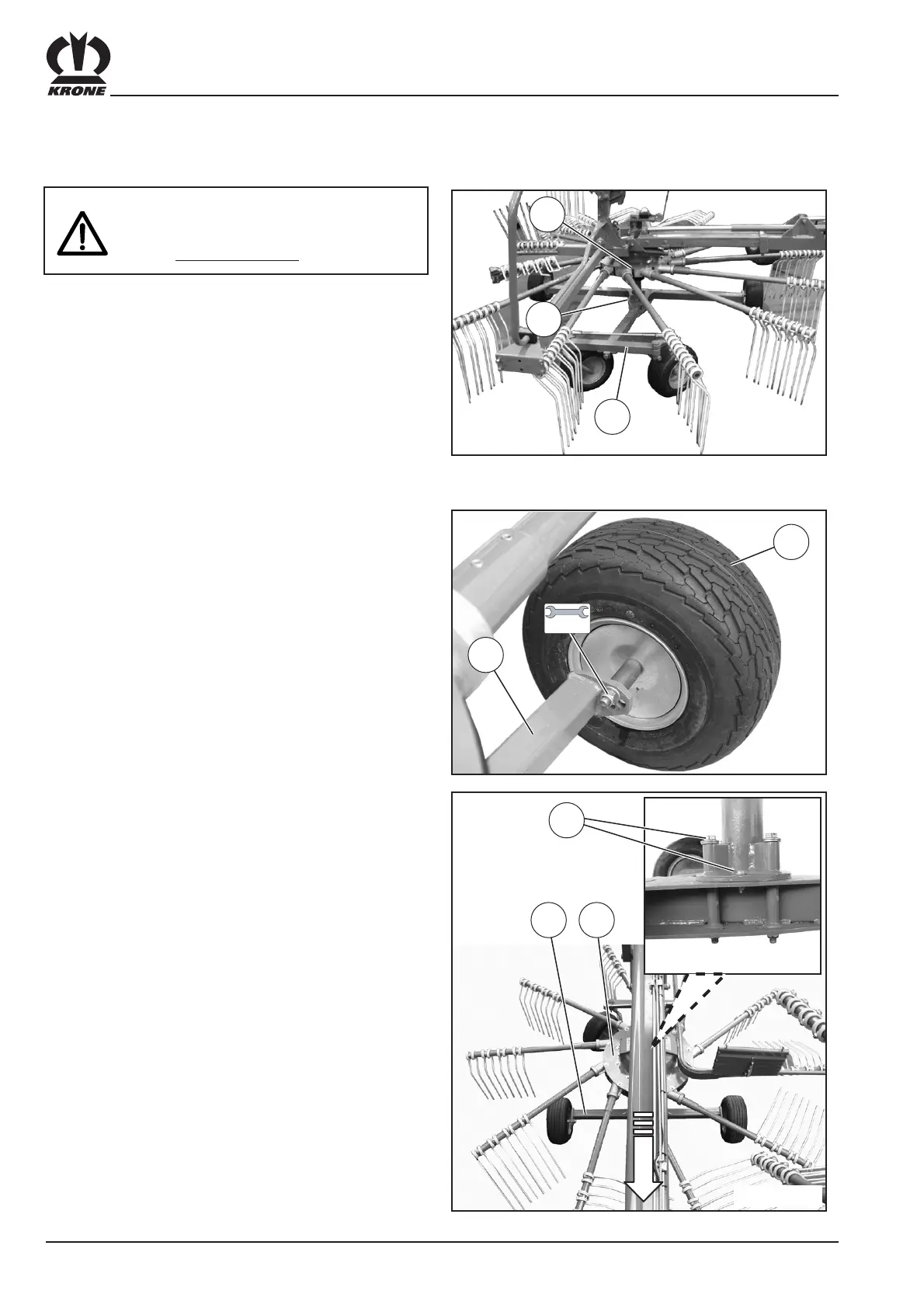

A1.3 Rotating the front and back
rotor running gears
• Move the machine to the working position.
• Remove the rotor running gear (1) by loosening the
screw points (2) from the rotor (3).
• Raise the rotor arms until the rotor running gear (1)
can be turned.
• Turn the rotor running gear (1) as shown in the
illustration
• Mount the rotor running gear with the rotor on the
screw points (2).
• Mount the tyres (4) on the rear rotor running gear (1).
1
SW101045
2
3
SW101049
4
Nm
1
A1.4 Assembly of the centre rotor
running gear
• Push the rotor running gear (1) under the centre rotor
(2) as shown in the illustration.
• Slowly lower the centre rotor (2).
• Mount the rotor running gear with the rotor on the
screw points (3).
SW101053
1 2
3
