CTN / CTN-H
904.14
412.32
K/H
458.02
524.02
562.06
901.28
(902.28)
920.28
901.27
(902.27)
920.27
411.57
230.01
525
108
940.03
230.02
411.58
502.03/561.07
502.04/561.08
Design with shaft protecting sleeve
and lantern ring in the gland
packing; can be cooled/heated
Detail of two-stage pump
Sizes: 25-200/2 and 40-250/2
Additional lock for PTFE bearings
Detail of two-stage pump
Sizes: 40-280/2, 50-315/2, 80-315/2,
100-315/2, 125-315/2

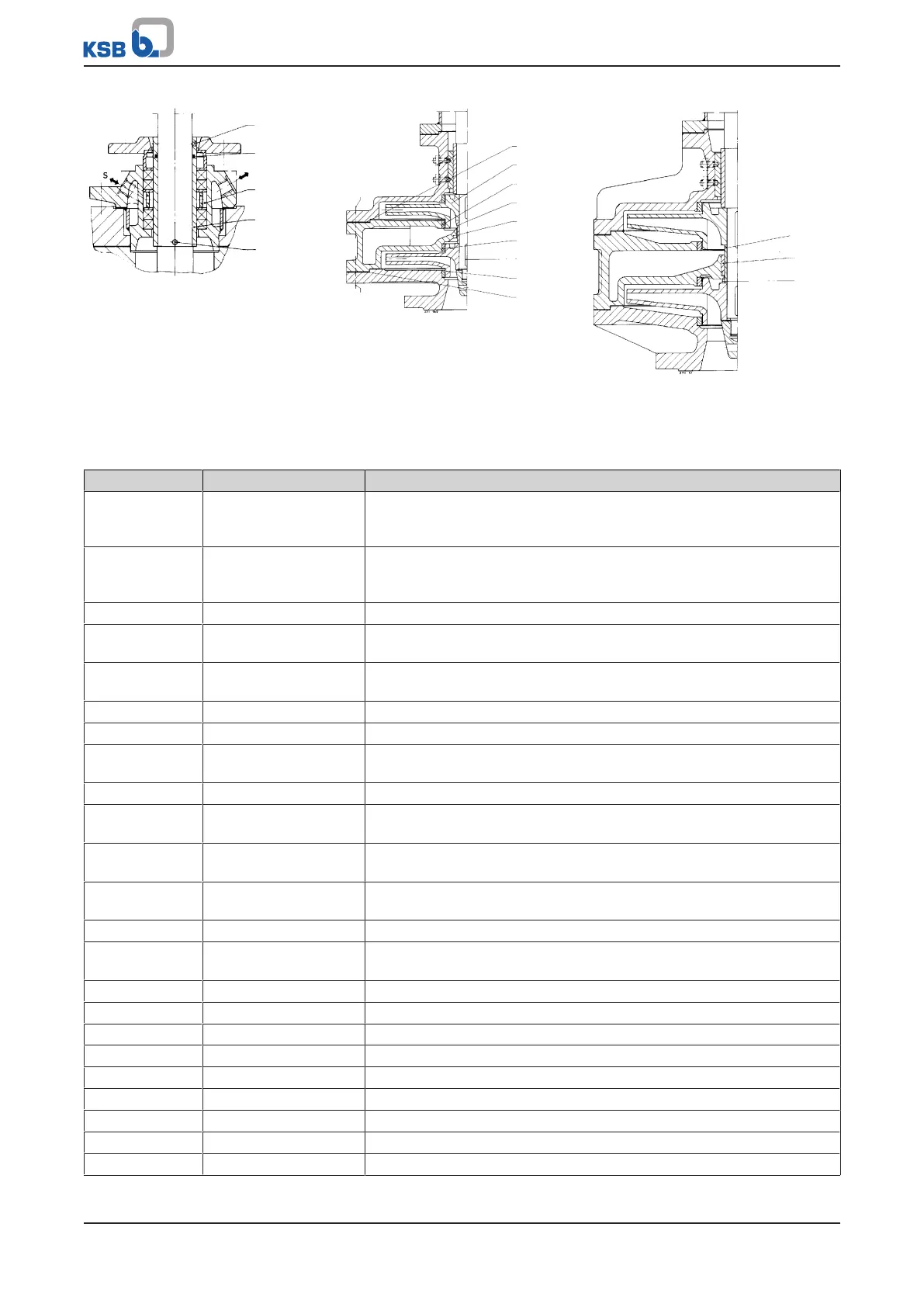

Table32: List of components
Part No. Description Scope of supply
102 Volute casing with gasket 400.16, casing wear ring 502.02, grooved pin 561.02, grub
screw 904.04/.10/.15, hexagon head bolt 901.28, stud 902.28, hexagon
nut 920.10/.28
108 Stage casing with joint ring 411.58, casing wear ring 502.03/.04, grub screw
904.07/.08, bearing bush 545.02, grooved pin 561.09, hexagon head
bolt 901.27, stud 902.27, hexagon nut 920.27
153 Suction nozzle with gasket 400.03, hexagon head bolt 901.26, hexagon nut 920.26
162 Suction cover with joint ring 411.57, casing wear ring 502.01, grooved pin 561.01,
grub screw 904.03
210 Shaft with set of spacer discs 550.21, keywayed nut 920.21, cap nut 920.22,
lockwasher 931.01/.02, key 940.01/.02/.03/.06/.07
211 Pump shaft with cap nut 920.22, lockwasher 931.02, key 940.01/.03/.06
212 Intermediate shaft
213 Drive shaft with set of spacer discs 550.21, parallel pin 562.06, with keywayed nut
920.21, lockwasher 931.01, key 940.02
230.01/.02 Impeller For two-stage pumps, specify whether for 1st or 2nd stage
320.02 Angular contact ball
bearing
341 Drive lantern with coupling guard 681.05, screw 900.16, stud 902.11, hexagon nut
920.11
344 Bearing bracket lantern with bearing cover 360.02, lip seal 421.02/.03, cover plate 680.03, screw
900.15, studs 902.06, socket head cap screw 914.02, hexagon nut 920.06
421.02/.03 Lip seal
451.02 Stuffing box housing with joint ring 411.33/.34/.47, disc 550.01, stud 902.09, screwed plug
903.33/.34, hexagon nut 920.09
452.02 Gland follower
454.02 Stuffing box ring
458.02 Lantern ring
461.02 Gland packing
502.01/.02 Casing wear ring with grooved pin 561.01/.02, grub screw 904.03/.04
502.03/.04 Casing wear ring with grooved pin 561.07/.08, grub screw 904.34/.35
511 Centring ring with grooved pin 561.22
524.02 Shaft protecting sleeve with O-ring 412.32, grub screw 904.14, key 940.07
525 Spacer sleeve
