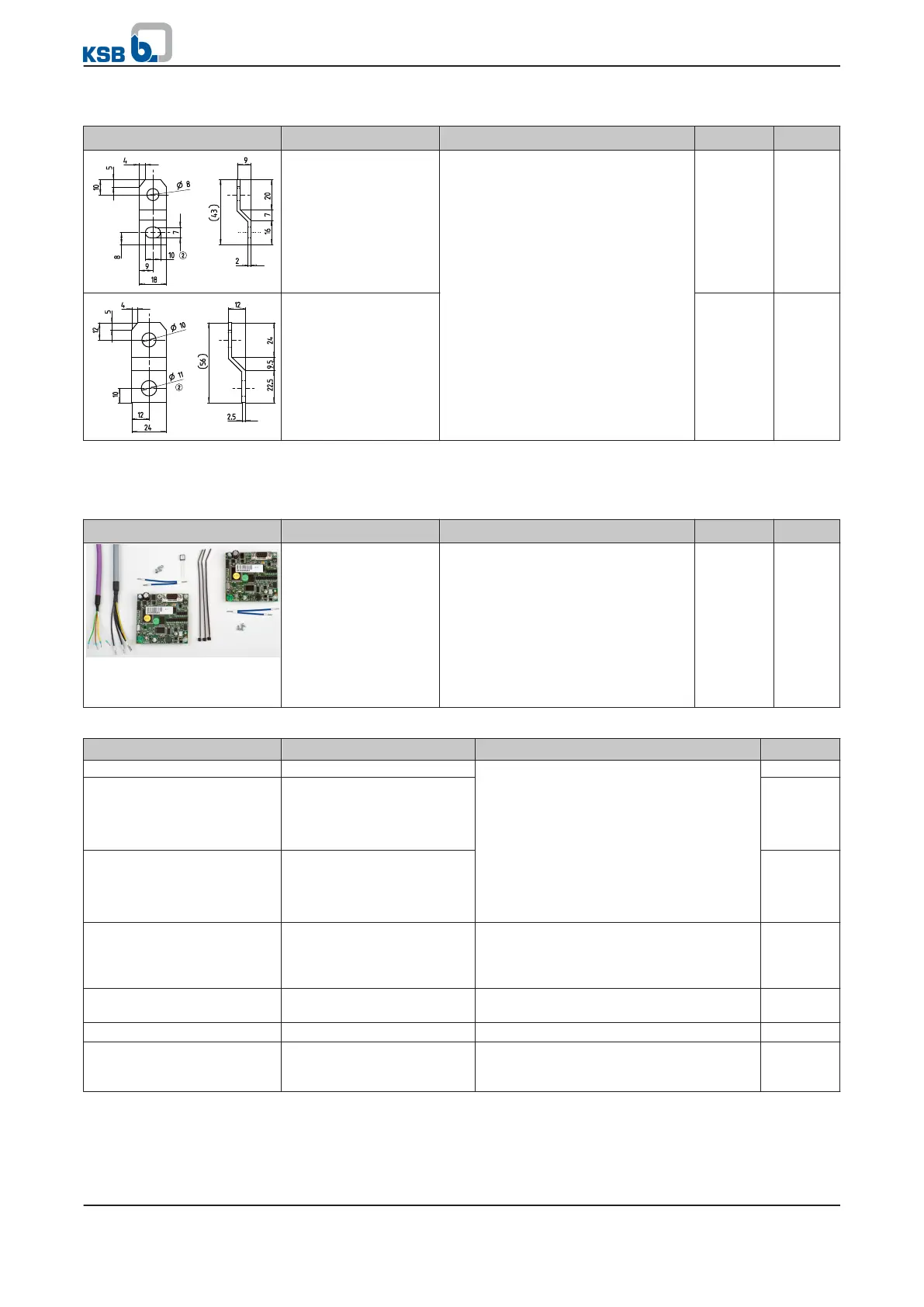

Table 123: Adapter for wall and cabinet mounting
Description Design Mat. No. [kg]
Set of mounting
elements, PumpDrive A
+B
The adapter can be used for wall
mounting as well as for control
cabinet mounting and is included as
standard in the KSB scope of supply
for wall- and cabinet-mounted
models.
47118186 0.08
Set of mounting
elements, PumpDrive C
+D
47118187 0.08
12.2.5 Dual pump module (DPM)
Table 124: Accessories for dual pump/multiple pump configurations
Description Design Mat. No. [kg]
Set of accessories for
dual pump module
(DPM)
Mounting kit comprising 2 dual pump
modules, including bus and signal
cables, a 500-ohm measuring resistor,
wire jumpers, accessories and
operating manual, Only for
PumpDrive BASIC with standard
control panel for redundant
operation of two PumpDrives in
operating mode 2 x 50 % or 2 x 100
%
01131684 0.6
Table 125: Set of accessories: Dual pump module (DPM)
Quantity Component Use Mat. No.
2 Dual pump module (DPM) Only for PumpDrive BASIC with standard
control panel for redundant operation of
two PumpDrives in operating mode 2 x 50
% or 2 x 100 %
47121257
1 CAN bus cable, pre-
configured
Cable 2 x 2 x 0.22 mm²,
length approx. 1 m
01131429
1 Signal cable
5-core cable, halogen-free,
type Ölflex 110CH, length
approx. 1 m
01131430
1 Measuring resistor 500 Ohm Conversion of the 0/4 - 20 mA (current)
measurement signal of the differential
pressure sensor into 0/2 - 10 V DC voltage
values
01127044
2 Wire jumper Wiring of digital inputs DI1 and DI6 with
+24 V DC on both PumpDrives
01131428
3 Cable tie
1 PumpDrive DPM operating
manual
See
product
literature
