12.2.7 Sensors

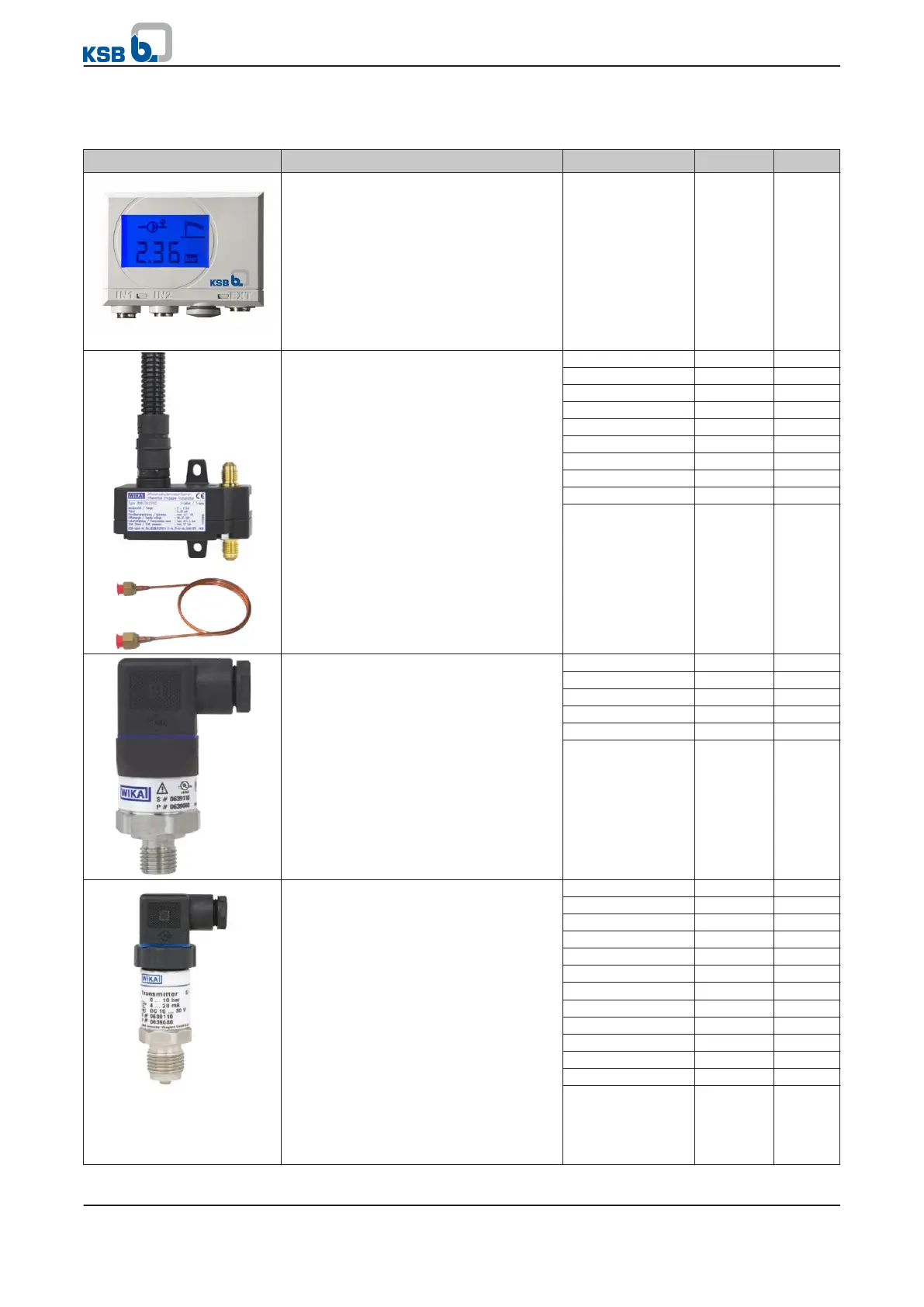

Table 132: Accessories – Pressure measurement
Description Design Mat. No. [kg]
The PumpMeter device is an intelligent
pressure transmitter for pumps, with on-
site display of measured values and
operating data.
PumpMeter is parameterised at the
factory in line with pump-specific
requirements. Configuration selections
are made in KSB EasySelect.
Refer to the last section of this type series
booklet for more information.
Pump-specific - 0,1
Differential pressure transducer
With two copper-spiralled pipe sections
measuring 75 cm in length for connection
to the discharge or suction nozzles,
complete with retaining plate, spiralled
pipe section and adapter, output 4 to
20 mA, 3-wire output, supply voltage
18 to 30 V DC, 2.5 m connection cable
Ambient temperature -10 to +50 °C
Temperature of measured medium -10 to
+80 °C
0 - 1 bar, RC3/8 01111180 0.3
0 - 2 bar, RC3/8 01109558 0.3
0 - 4 bar, RC3/8 01109560 0.3
0 - 6 bar, RC3/8 01109562 0.3
0 - 10 bar, RC3/8 01109585 0.3
0 - 1 bar, RC1/2 01111303 0.3
0 - 2 bar, RC1/2 01111305 0.3
0 - 4 bar, RC1/2 01111306 0.3
0 - 6 bar, RC1/2 01111307 0.3
0 - 10 bar, RC1/2 01111308 0.3
A-10 pressure transducer
For general applications, for liquid and
gaseous fluids 0 to + 80 °C, measuring
accuracy smaller than or equal to 1 %, 2.5
% max. (at 80 °C), G1/4B process
connection with Cu joint ring, IP 67, 2-
wire output 4 to 20 mA
0 - 2 bar 01152023 0.07
0 - 5 bar 01152024 0.07
0 - 10 bar 01210880 0.4
0 - 16 bar 01073808 0.128
0 - 20 bar 01152025 0.07
0 - 50 bar 01152026 0.07
S-20 pressure transducer
For general applications in industry,
mechanical engineering and hydraulics,
Pneumatics for liquid and gaseous fluids
-30 to +100 °C, Parts in contact with the
measured medium made of CrNi steel (no
gaskets), Mechanical shock load capacity
up to 100 g (IEC 60068-2-27), Vibration
load capacity at resonance up to 20 g (IEC
60068-2-6), Measuring accuracy < 0.5 % of
measuring range, G1/2B EN837
connection, IP65 enclosure, 2-wire output
4 - 20 mA, 3-wire output 0 - 10 V DC,
Maximum line cross-section of 1.5 mm²,
Outer line diameter of 6 to 8 mm, ,
Electrical connection via angular
connector to DIN 175301-803 A
0 - 1.0 bar 01147224 0.12
0 - 1.6 bar 01147225 0.12
0 - 2.5 bar 01147226 0.12
0 - 4.0 bar 01147267 0.12
0 - 6.0 bar 01147268 0.12
0 - 10.0 bar 01147269 0.12
0 - 16.0 bar 01084305 0.159
0 - 25.0 bar 01084306 0.2
0 - 40.0 bar 01087244 0.2
-1 - 1.5 bar 01150958 0.6
-1 - 5.0 bar 01087507 0.2
-1 - 15,0 bar 01084308 0.2
-1 - 24,0 bar 01084309 0.2
