Description Design Mat. No. [kg]

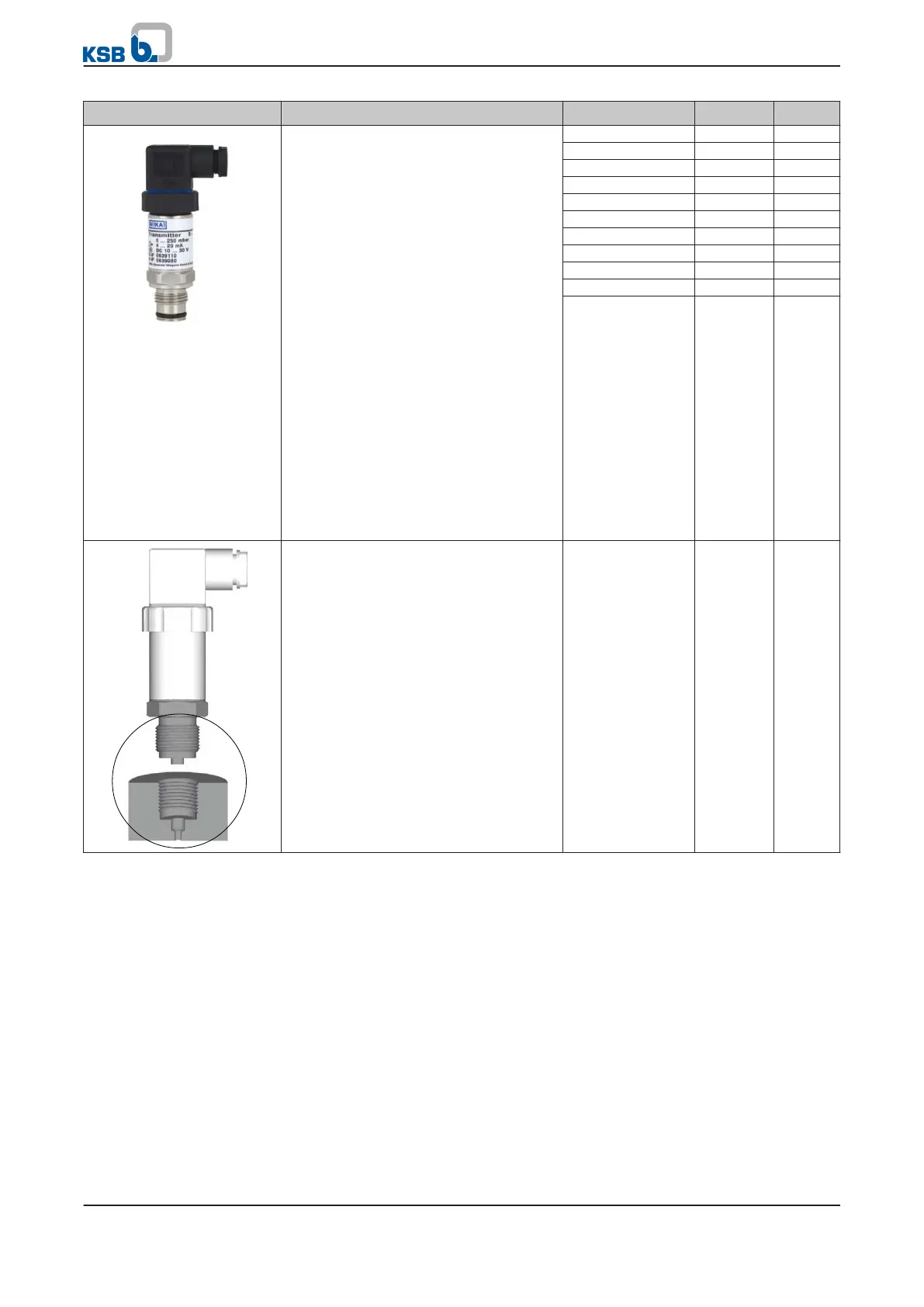

S-11 pressure transducer
For applications in the hygiene, food and
beverage industries, For liquid, gaseous,
viscous and contaminated fluids,
Temperature of measured medium
-30 to 100 °C; on request with integrated
cooling section for measured medium
temperatures up to +150 °C, Parts in
contact with the measured medium made
from CrNi steel (no gaskets); on request
Hastelloy C4 (2.4610) variant available for
aggressive media, Mechanical shock load
capacity up to 1000 g (IEC 60068-2-27),
Vibration load capacity at resonance up to
20 g (IEC 60068-2-6), Measuring accuracy
< 0.5 % of measuring range, G1/2B EN837
connection, Flush diaphragm, NBR O-ring,
IP65 enclosure, 2-wire output 4 - 20 mA,
3-wire output 0 - 10 V DC, Maximum line
cross-section of 1.5 mm², Outer line
diameter of 6 to 8 mm, Auxiliary energy
supply, UB: 10 < UB ≤ 30 V DC (14 to 30
for output 0 - 10 V), Electrical connection
via angular connector to DIN 175301-803
A
0 - 1.0 bar 01147270 0.24
0 - 1.6 bar 01147271 0.24
0 - 2.5 bar 01147272 0.24
0 - 4.0 bar 01147273 0.24
0 - 6.0 bar 01147274 0.24
0 - 10.0 bar 01147275 0.24
0 - 16.0 bar 01084310 0.24
0 - 25.0 bar 01084311 0.24
0 - 40.0 bar 01087246 0.24
-1 - 1.5 bar 01087506 0.24
-1 - 5.0 bar 01084307 0.24
Weld-in socket for S-20 and S-11 pressure
transducers
G1/2B process
connection,
internal thread
01149296 0.2
