16 TUNING THE ENGINE 102
B00056-11
–

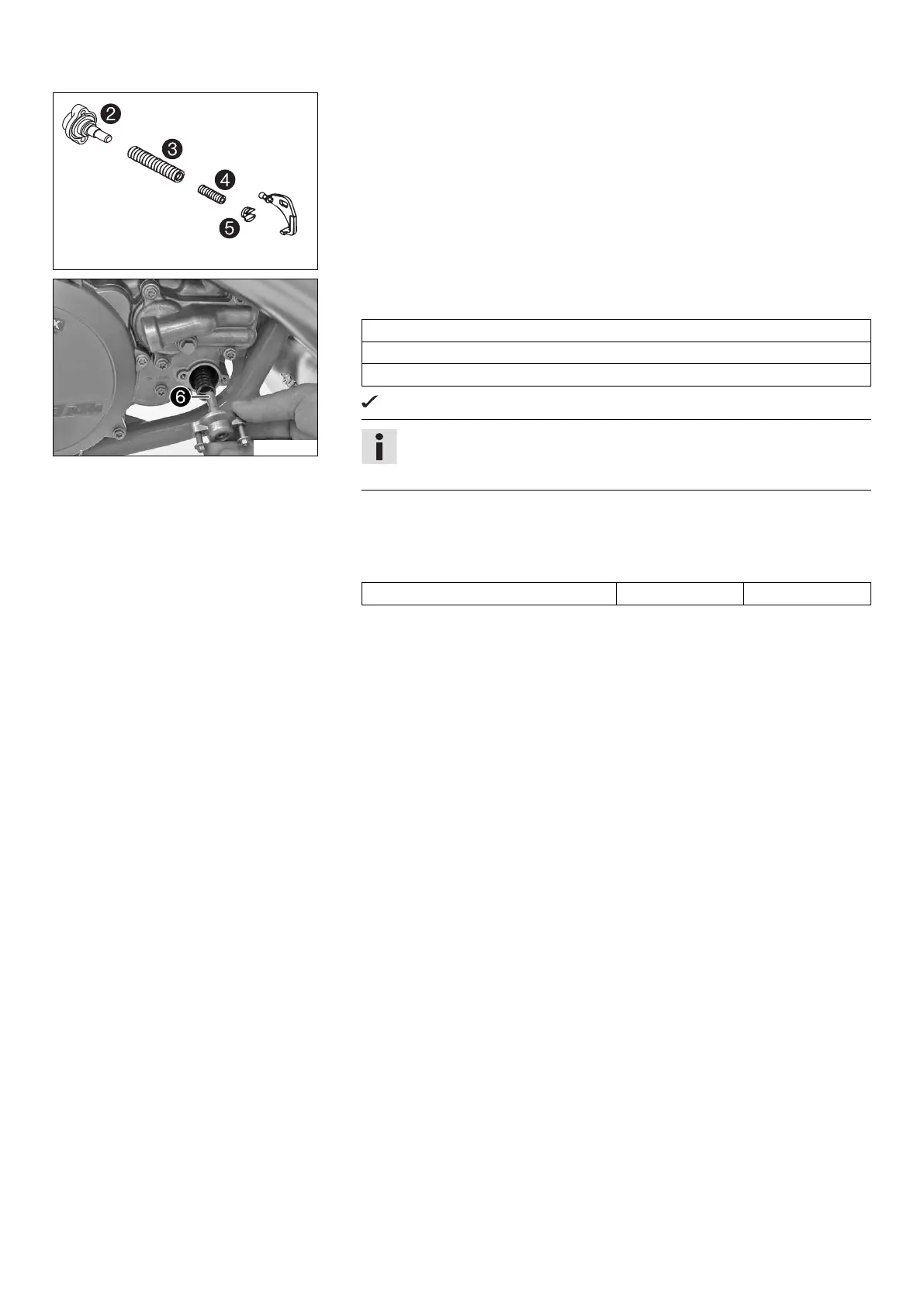

Remove cap
, adjusting spring
, auxiliary spring
, and spring insert
from the clutch cover.
– Pull both springs off of the spring insert.
B02130-10
–
Mount the required auxiliary spring
and adjusting spring
and position them
together in the clutch cover.
Auxiliary spring with yellow marking (54637072300)
Auxiliary spring with green marking (54837072100)
Auxiliary spring with red marking (54837072000)
The recess in spring insert
engages in the angle lever.
Info
Screw
must not be turned as this would worsen the engine characteris-
tic.
– Check the O-ring in the cap.
– Position the cap.
– Mount and tighten the screws.
Guideline
Screw, exhaust control cover M5 6 Nm (4.4 lbf ft)
