KTM 150 SX - Installing the Air Filter Box Cover

11 SERVICE WORK ON THE CHASSIS 58
B02101-11
–

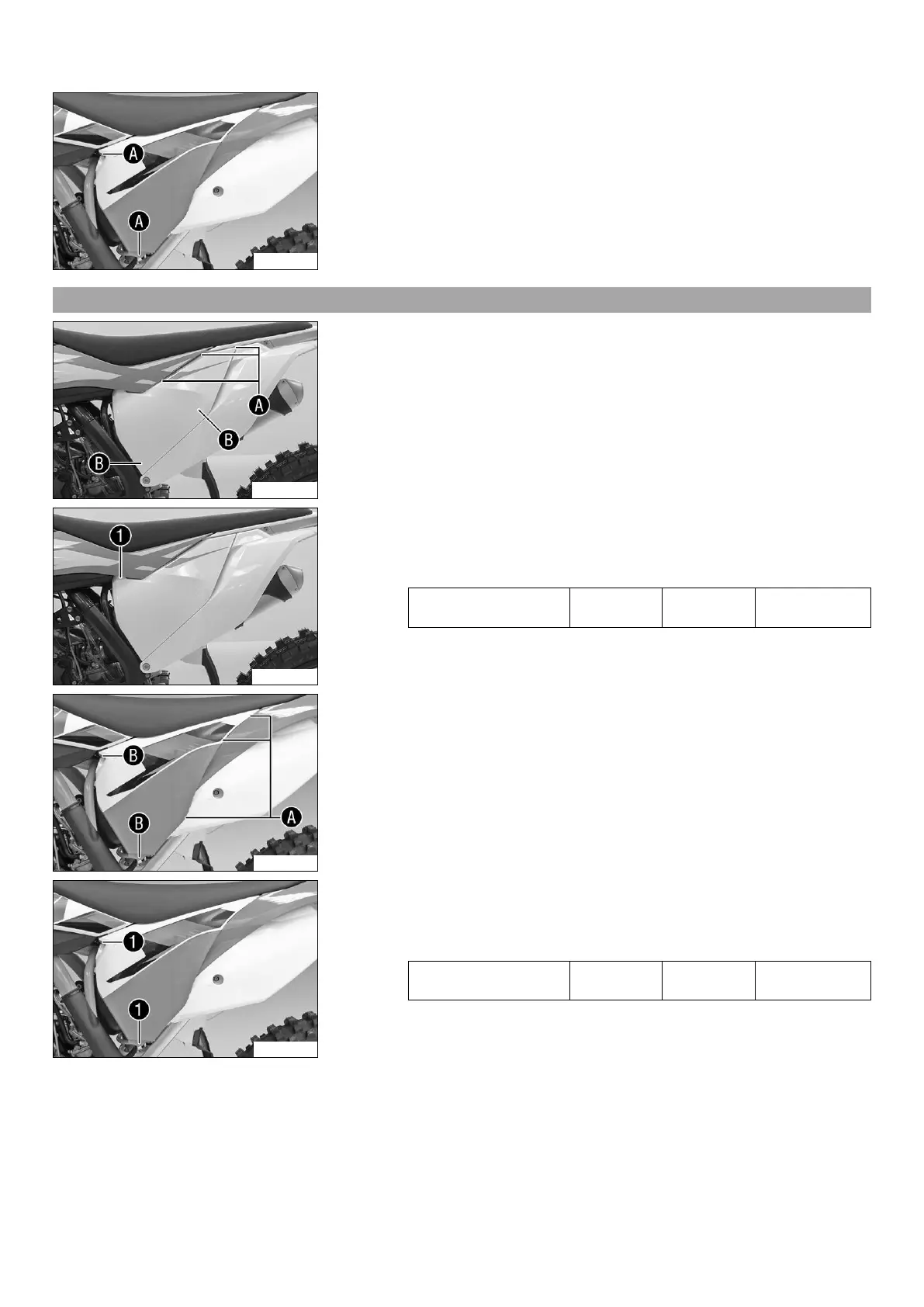

Pull off the air filter box cover in area

sideways and remove it toward the
front.
11.23 Installing the air filter box cover
M01158-12
(All 125/150 models)
–
Insert the air filter box cover in area

and clip it into area

.
M01158-10
Condition
The air filter box cover is secured.
–
Mount and tighten screw

.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm
(2.2 lbf ft)
EJOT PT screw
(0017060204)
B02101-12
(All 250/300 models)
–
Insert the air filter box cover in area

and clip it into area

.
B02101-10
Condition
The air filter box cover is secured.
–
Mount and tighten screws

.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm
(2.2 lbf ft)
EJOT PT screw
(0017060204)
