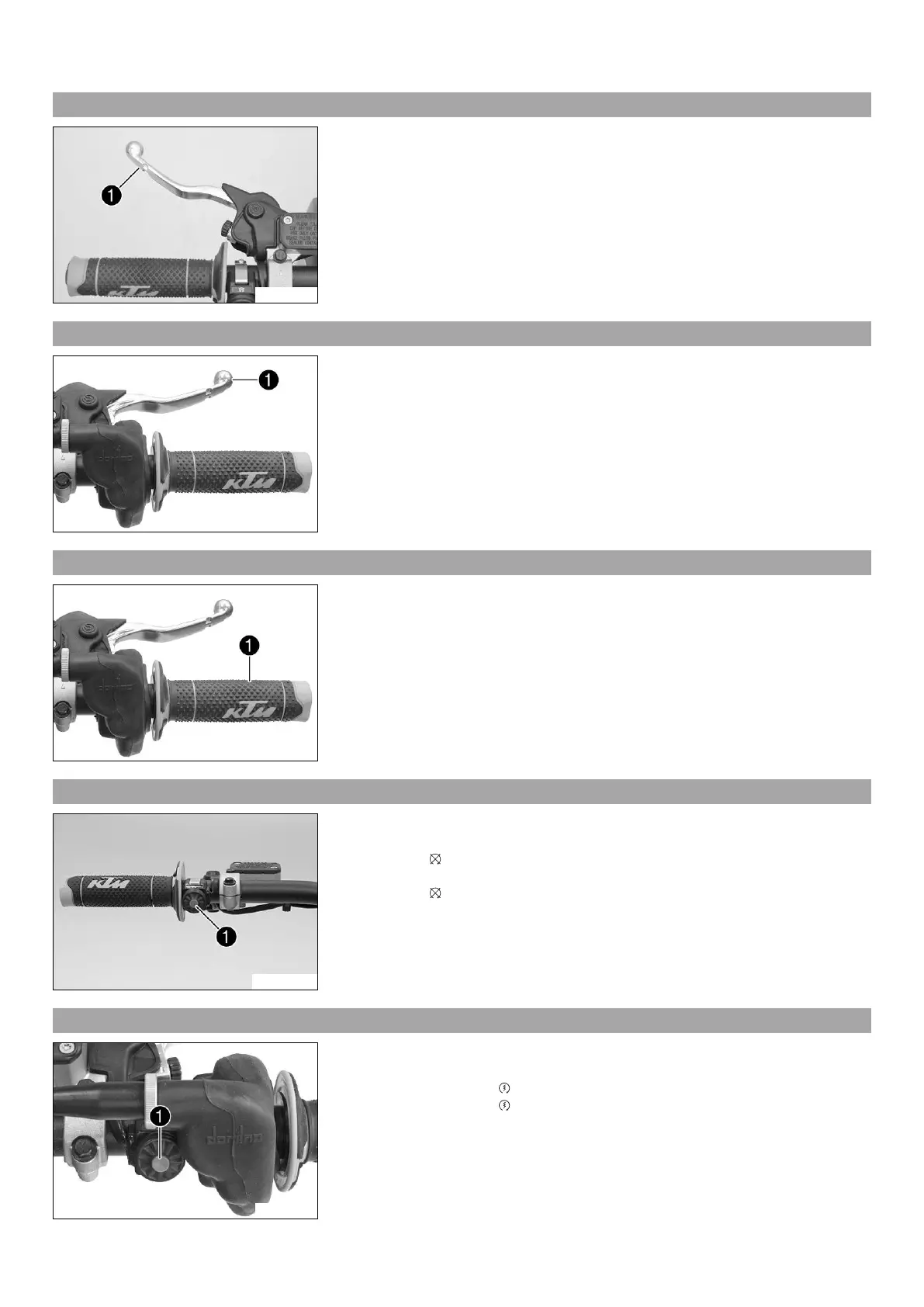

6 CONTROLS 12
6.1 Clutch lever
L01224-11
Clutch lever
is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automatically.
6.2 Hand brake lever
L00932-10
Hand brake lever
is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
L00932-11
Throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch
M01122-10
The kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed, and
the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.5 Electric starter button (All XC models)
L01200-10
The electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
