21.3.10 250 XC

Carburetor type KEIHIN PWK 36S AG

Carburetor identification number BZ6_A

Needle position 3rd position from top

Jet needle N2ZW (N2ZH, N2ZJ)

Main jet 175 (172)

Idling jet 38 (40)

Starting jet 85

Idle air adjusting screw

Open 2 turns

Throttle slide 7 with cut-out

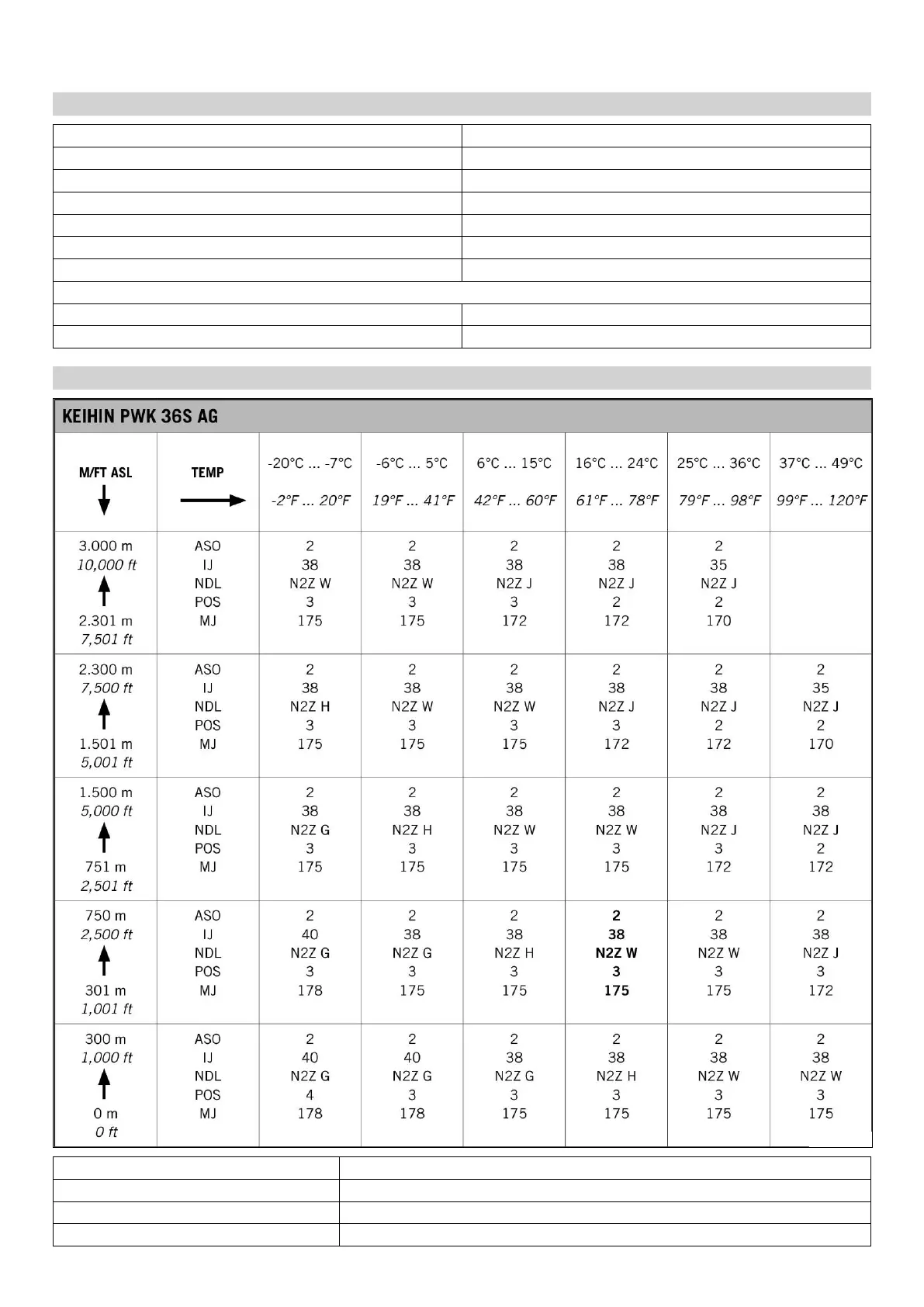

21.3.11 Carburetor tuning (250 XC)

402140-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet
