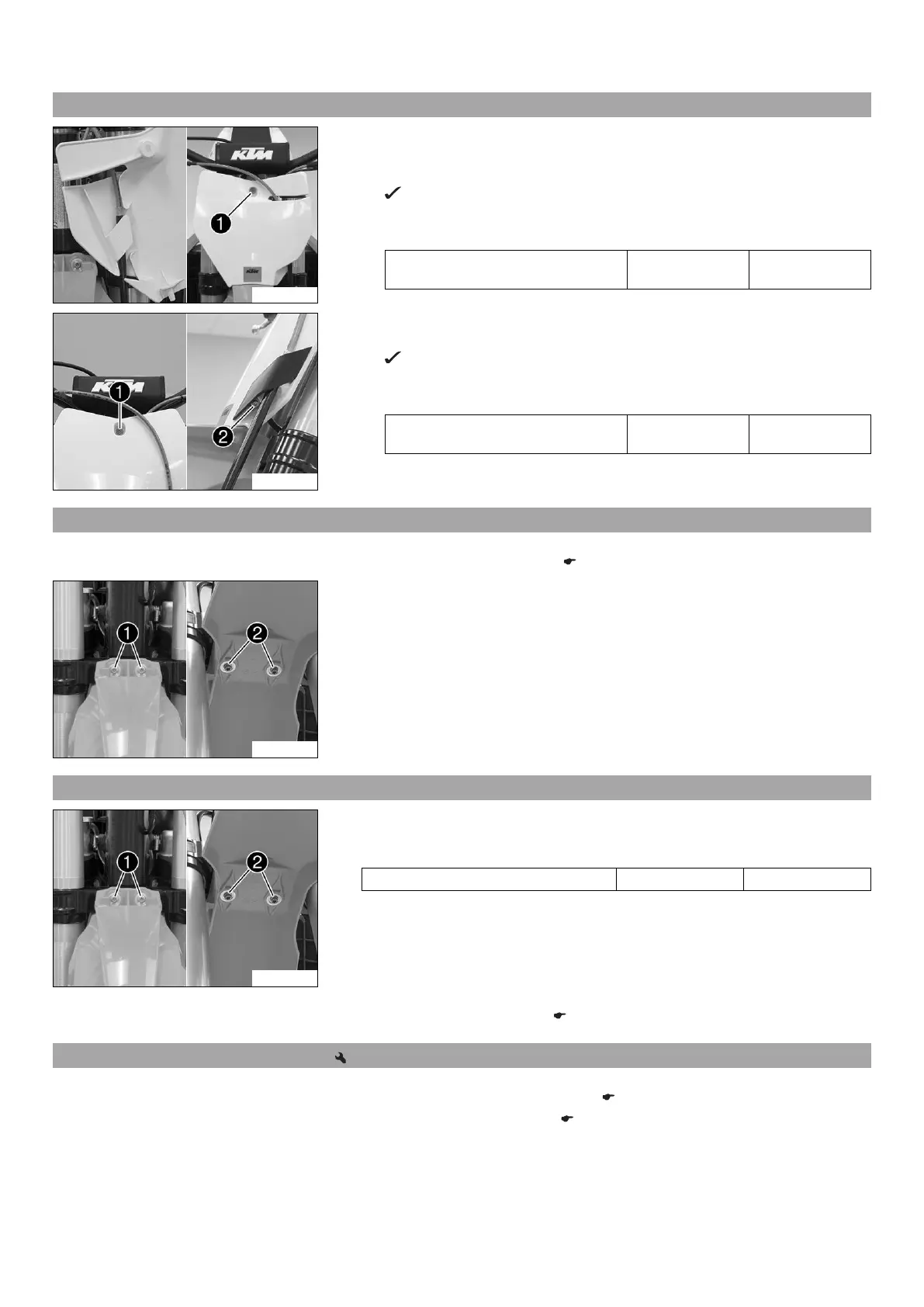

11 SERVICE WORK ON THE CHASSIS 52
11.15 Installing the start number plate
M01143-10
(All 125/150 models)
– Connect the brake line at the start number plate.
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw

.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
M01189-10
(All 250/300 models)
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw

.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screw

.
11.16 Removing the front fender
Preparatory work
– Remove the start number plate. ( p. 51)
M01144-10
Main work
–
Remove screws

and

. Remove the front fender.
11.17 Installing the front fender
M01144-10
Main work
–
Position the front fender. Mount and tighten screws

and

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 52)
11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 44)
– Disassemble the main silencer. ( p. 61)
