10 TUNING THE CHASSIS 33
B02079-10
(All 250/300 models)
–

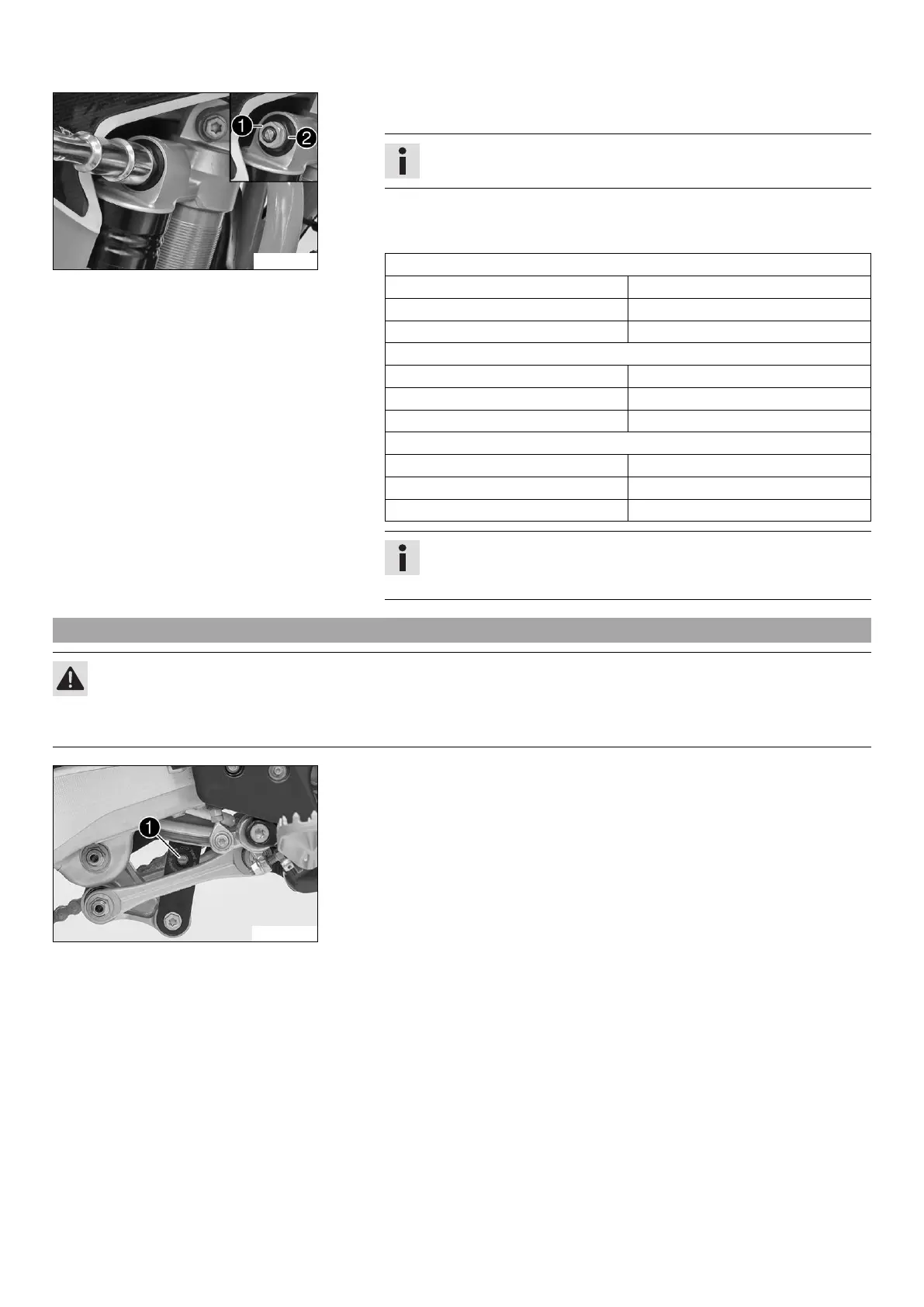

Turn adjusting screw
all the way clockwise with a socket wrench.
Info
Do not loosen fitting
!
– Turn counterclockwise by the number of turns corresponding to the shock
absorber type.
Guideline
Compression damping, high-speed (250 SX EU)
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns
Compression damping, high-speed (250 SX US)
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns
Compression damping, high-speed (All XC models)
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
10.6 Adjusting the rebound damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop
will be glad to help.)
M01132-10
–
Turn adjusting screw
clockwise up to the last perceptible click.
– Turn counterclockwise by the number of clicks corresponding to the shock absorber
type.
