10 TUNING THE CHASSIS 34
Guideline
Rebound damping (125/150 SX EU)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (125/150 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX EU)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (All XC models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.

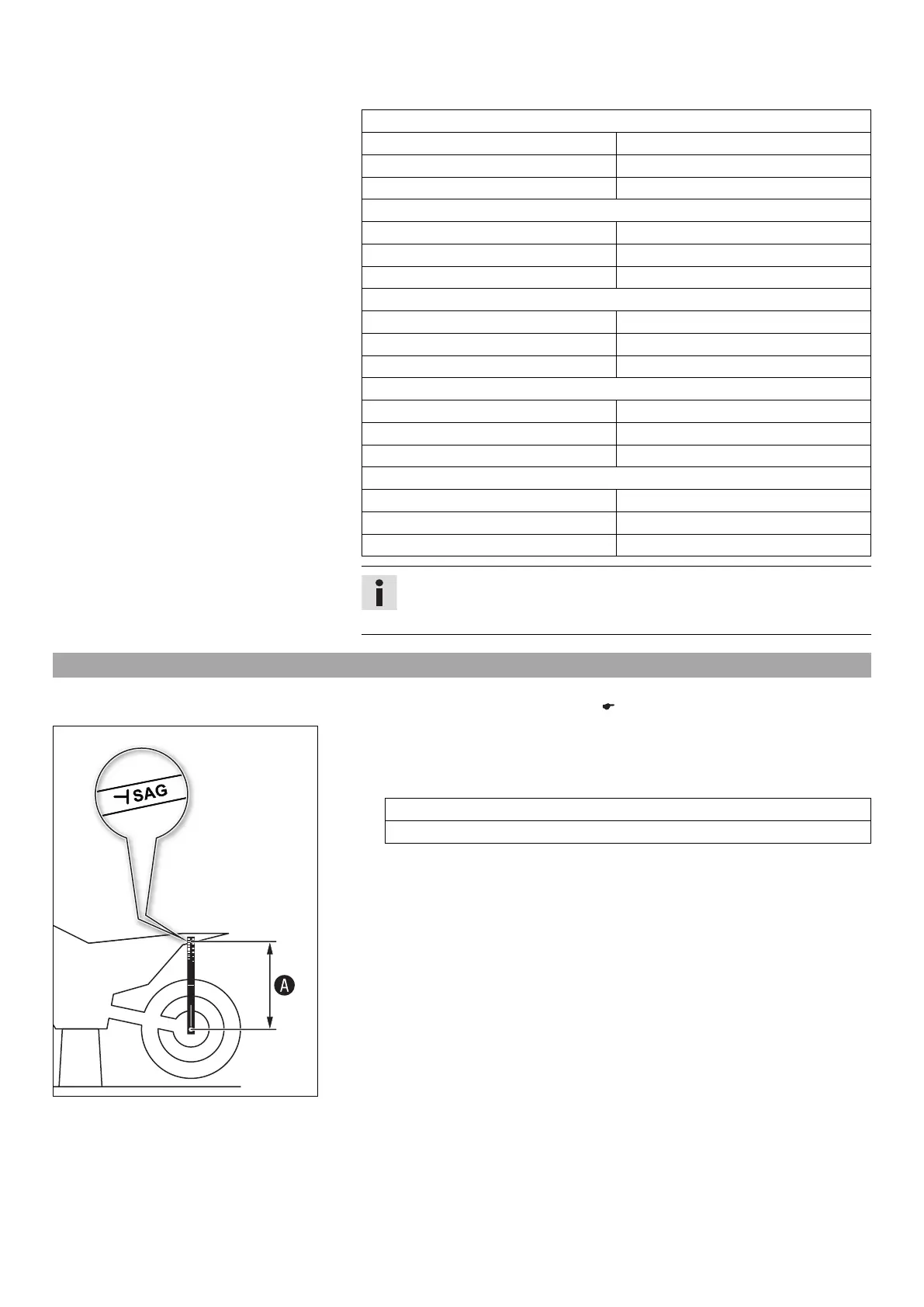

10.7 Measuring the rear wheel sag unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 44)
402415-10
Main work
(All 125/150 models)
– Position the sag gauge in the rear axle and measure the distance to
marking SAG on the rear fender.
Sag gauge (00029090000)
Pin for sag gauge (00029990010)
–
Note down the value as dimension

.
