OPERATING ELEMENTS 35

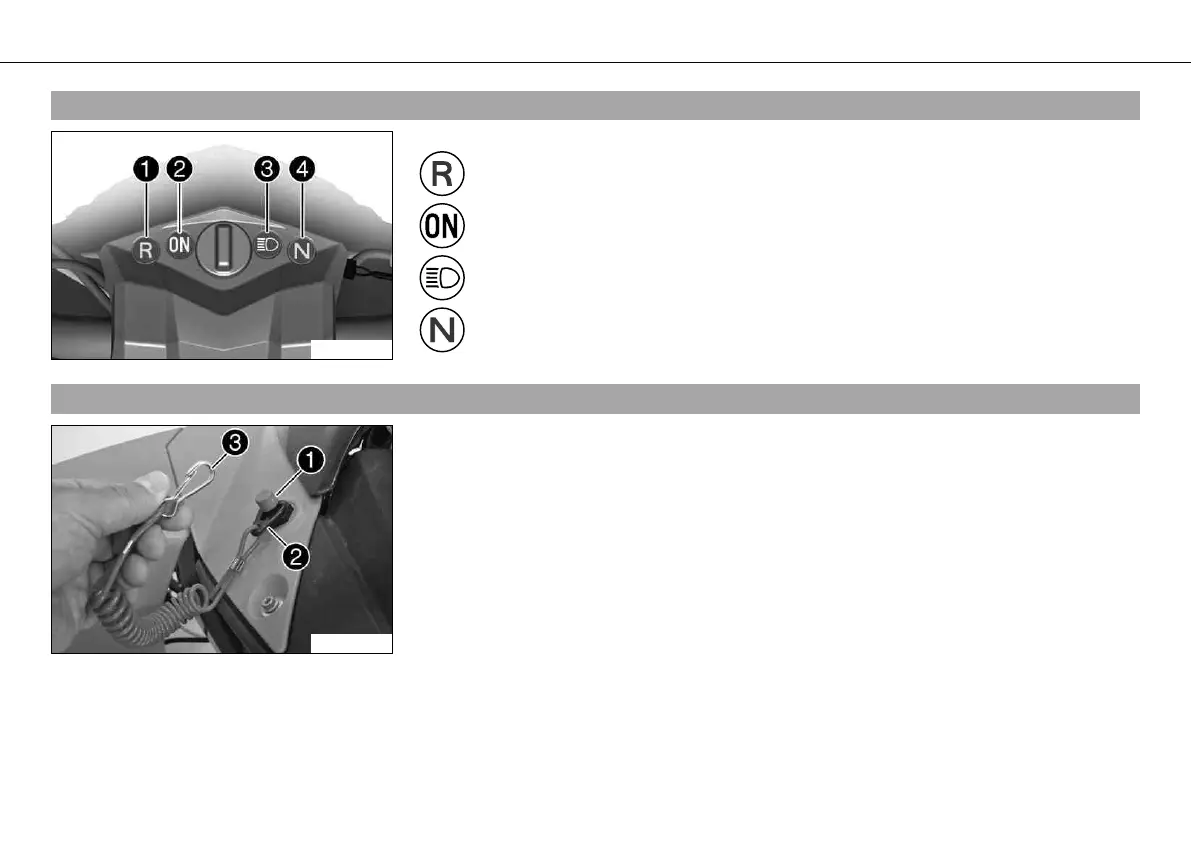

5.12Indicator lamp overview
400288-10
Possible states
Reverse gear indicator lamp lights up red – Reverse gear is engaged.
Ignition indicator lamp lights up yellow – Ignition is switched on.
High beam indicator lamp lights up blue – High beam is switched on.
Idling speed indicator lamp lights up green – Transmission is switched to
idle.
5.13Emergency OFF switch with rip cord
100010-10
The emergency OFF switch is mounted on the left in front of the fuel tank. A rip cord is
attached to clip . It can be attached to the clothing of the rider by means of carabiner .
The emergency OFF switch shuts the engine off if the rider falls off the vehicle.
Possible states
• Clip is pulled off – The ignition circuit is interrupted, a running engine stops and a
non-running engine will not start.
• Clip is mounted – The ignition circuit is closed and the engine can be started.
