MAINTENANCE ON CHASSIS AND ENGINE 88

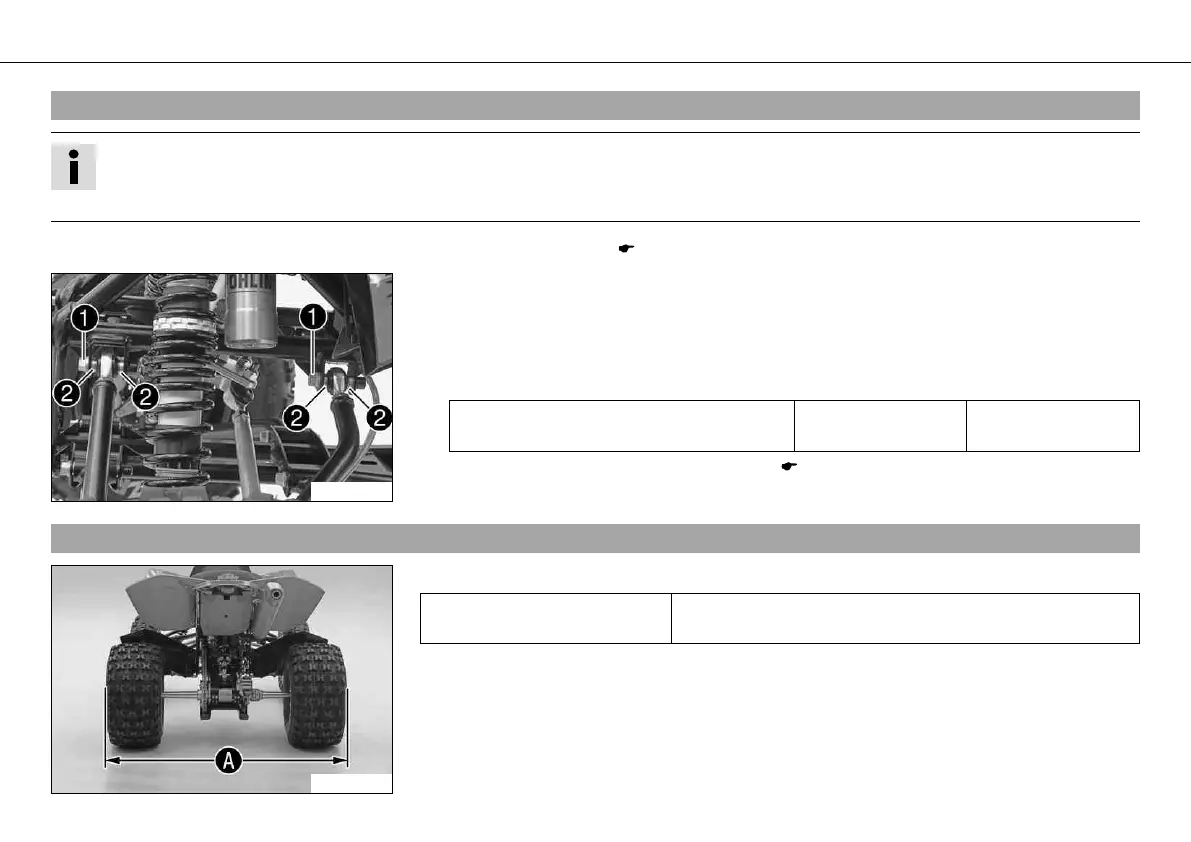

9.17Adjusting the fork offset x
Info
The left and right fork offset should have the same settings.
The operations are the same on the left and right.
– Jack up the vehicle. ( p. 66)
600126-11
– Remove screws with bushings .
– Check parts for damage and wear. Replace damaged or worn parts.
– Place the A-arm with the bushings in the desired position. Mount and tighten
screws .
Guideline
Screw, A-arm top M10x52 45 Nm
(33.2 lbf ft)
– Remove the vehicle from the work stand. ( p. 66)
9.18Toe width of rear axle
100101-10
The toe width can be adjusted by installed the spacing sleeve in various ways.
Difference between
narrow/wide toe
76 mm (2.99 in)
