MAINTENANCE ON CHASSIS AND ENGINE 93
100099-10

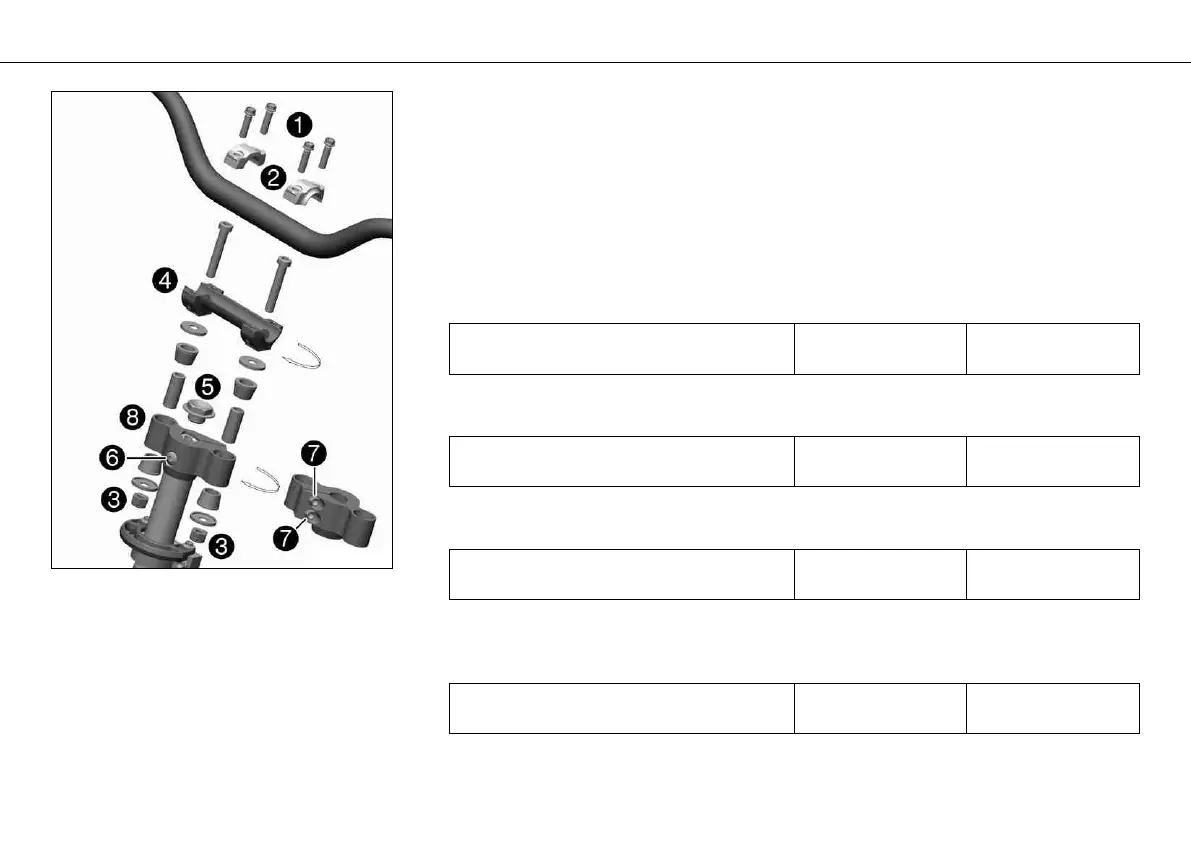

– Remove the four screws . Remove the handlebar clamps , swing the handlebar for-
ward and set it down.
– Remove the nuts and remove the handlebar support with the screws.
– Remove screws and .
– Remove screws . Remove the handlebar bridge .
– Check parts for damage and wear. Replace damaged or worn parts.
– Place the handlebar bridge onto the steering column in the desired position. Mount
and tighten screw .
Guideline
Screw, steering bridge M8 20 Nm
(14.8 lbf ft)
– Mount and tighten screw .
Guideline
Screw, steering column, top M20x1.5 25 Nm
(18.4 lbf ft)
– Mount and tighten screws .
Guideline
Screw, steering bridge M8 20 Nm
(14.8 lbf ft)
– Mount the handlebar support in the desired position using the screws. Mount new
self-locking nuts and tighten.
Guideline
Nut, handlebar support M10 45 Nm
(33.2 lbf ft)
