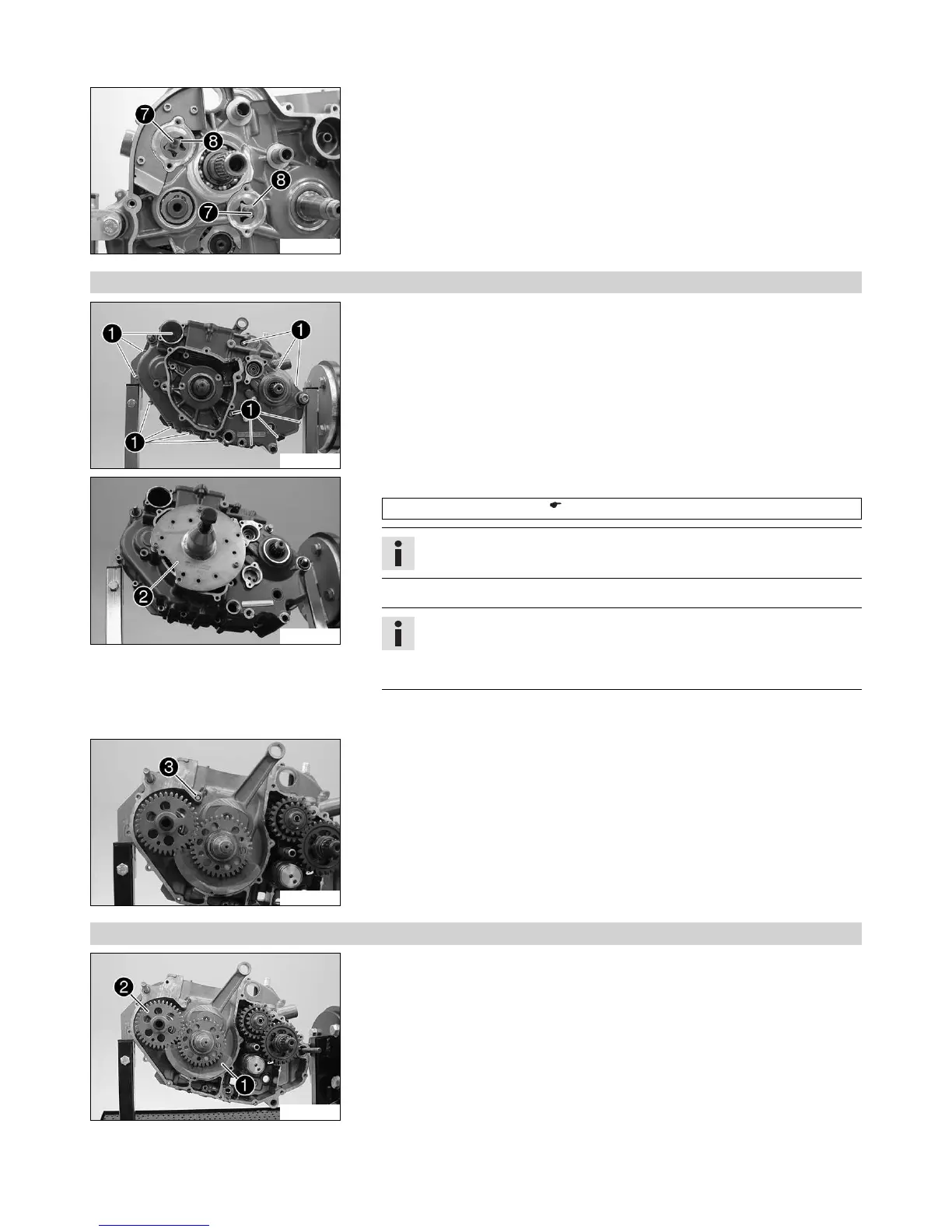

17 ENGINE 120
300072-10
– Remove both oil pump shafts 7 with internal rotors 8.
– Take the external rotors out of the engine case.
17.3.30 Removing left engine case
300075-10
– Remove screws 1.
– Swing the left section of the engine case up and remove the nut or screw of the
engine fixing arm.
300076-10
– Install the special tool 2 with suitable screws.
Extractor (75029048000) ( p. 220)
Info
Use the 750 drill hole.
– Pull off the section of the engine case.
Info
Do not tension the section of the engine case.
The balancer shaft and the main shaft have a stop disk, these usually stick
to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
302132-10
– Remove dowels.
– Remove O-ring 3.
17.3.31 Removing crankshaft and balancer shaft
302133-10
– Remove the crankshaft 1 and the balancer shaft 2.
