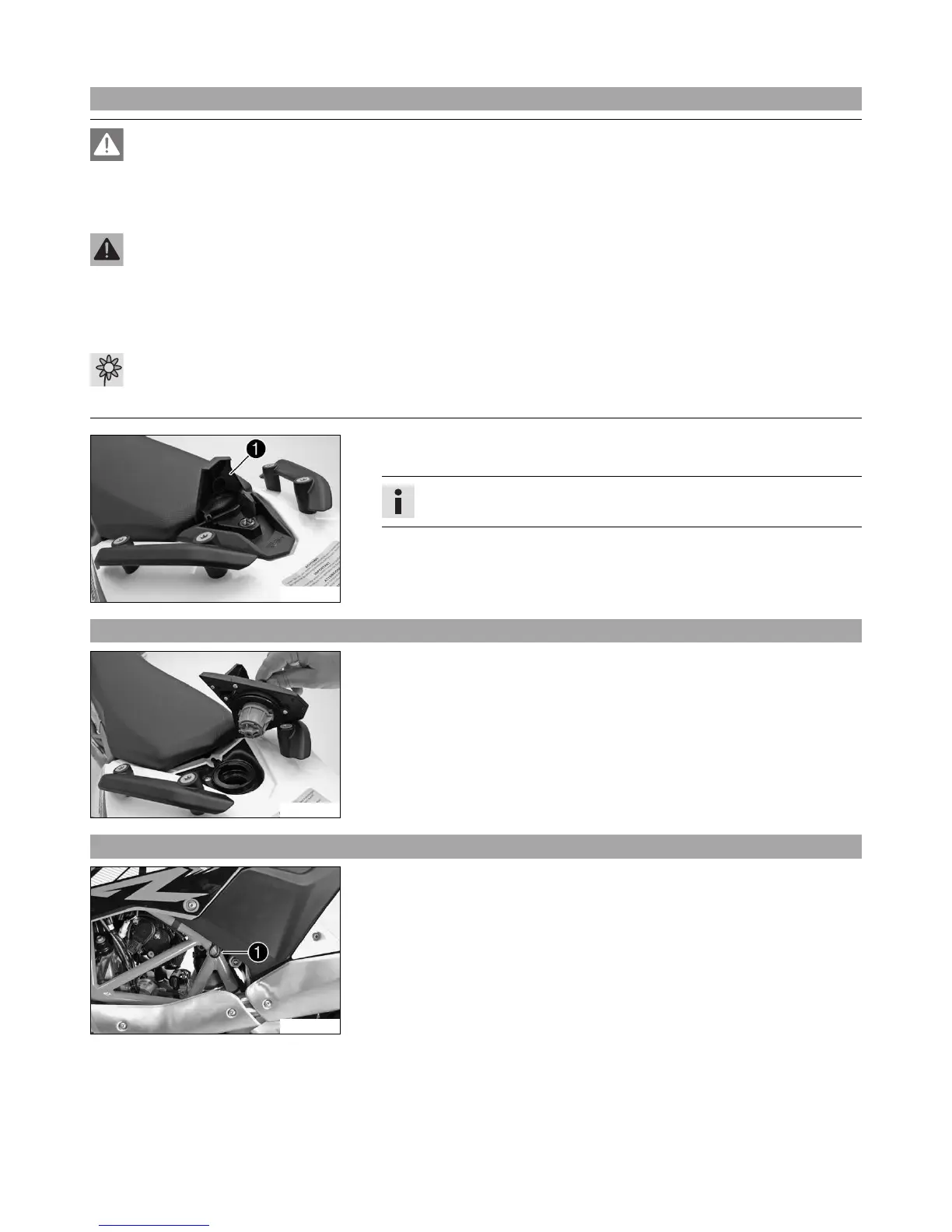

12 FUEL TANK, SEAT, TRIM 62
12.1 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
601770-10
– Lift the cover of filler cap 1 and insert the ignition key.
– Turn the ignition key 90° counterclockwise and remove the filler cap.
Info
The filler cap has a fuel tank breather.
12.2 Closing filler cap
601771-01
– Put the filler cap back on and turn the ignition key 90° clockwise.
– Remove the ignition key and fold down the cover.
12.3 Removing the seat
601772-10
– Pull on strap 1 and raise the rear of the seat at the same time.
– Pull back the seat and lift it off.

KTM 690 Enduro R EU 2013 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Transmission	6-speed
Rear Suspension	WP monoshock
Compression Ratio	12.5:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Front Tire	90/90-21
Rear Tire	140/80-18
Starter	Electric
Lubrication	Forced oil lubrication with 2 oil pumps
ABS	Optional
Power	67 hp (49 kW)
Seat Height	910 mm
Fuel Capacity	12 l
Front Suspension	WP USD 48 mm
Brakes Front	300 mm disc
Brakes Rear	240 mm disc
Bore x Stroke	102 mm x 84.5 mm
Frame	Chrome-molybdenum trellis frame, powder coated
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Front Brake Caliper	Single piston
Rear Brake Caliper	Brembo single piston, floating caliper
Wheel Front	21 inch
Wheel Rear	18 inch
Chain	5/8 x 1/4"
Steering Head Angle	63.5°
Wheelbase	1, 500 mm (59.1 in)
Ground Clearance	280 mm (11 in)
