KTM 690 Enduro R EU 2013 - Installing the Shock Absorber

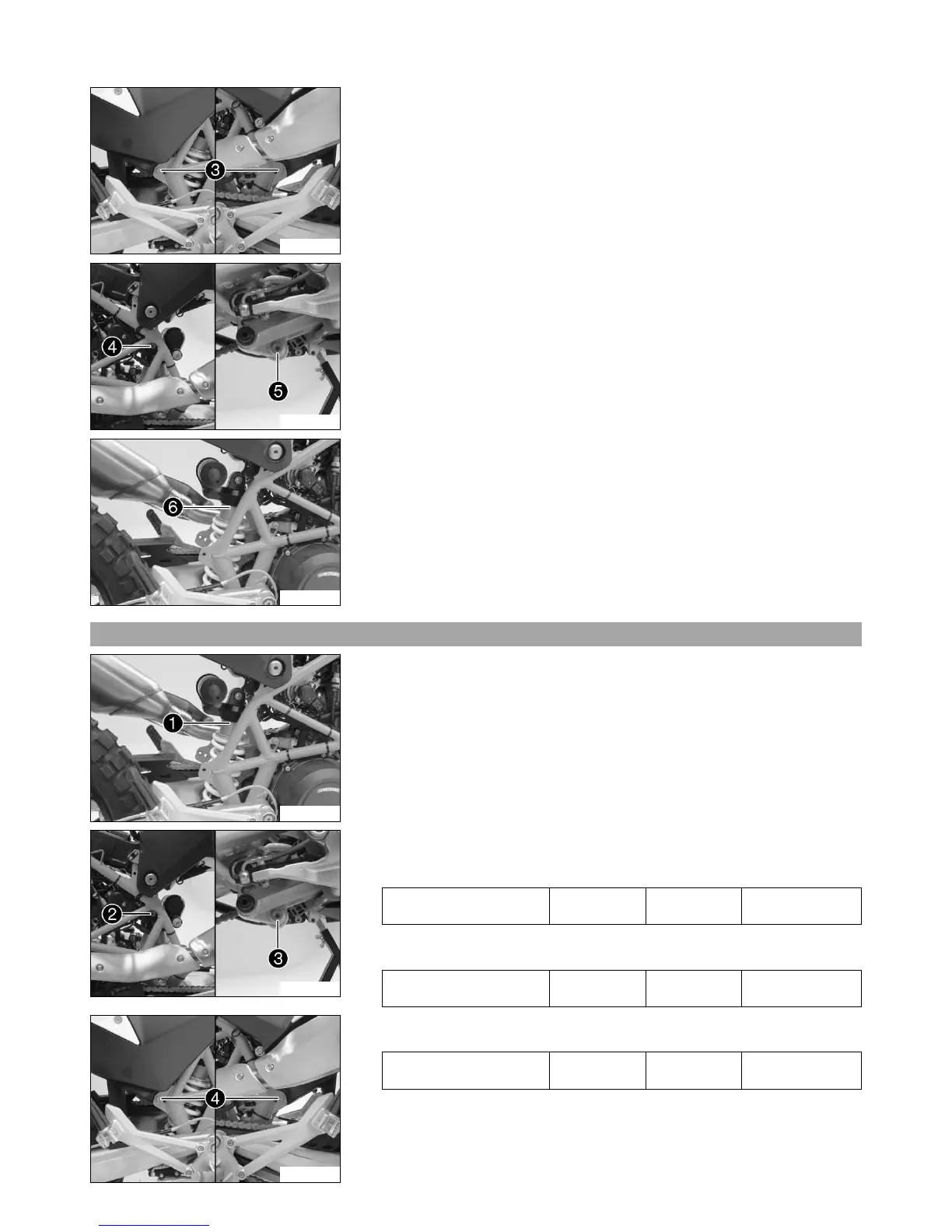

9 SHOCK ABSORBER, SWINGARM 41
202043-10
– Remove screw 3.
– Repeat the operation on the opposite side.
202044-10
– Loosen screw 4.
– Remove screw 5.
– Remove screw 4.
202045-11
– Swing the rear end upwards.
– Lift shock absorber 6 upwards and remove.
9.10 Installing the shock absorber
202045-10
Main work
– Insert shock absorber 1 from above.
202044-11
– Mount screw 2 but do not tighten yet.
– Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Tighten screw 2.
Guideline
Screw, top shock absorber M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
202043-11
– Mount and tighten screw 4.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Repeat the operation on the opposite side.
