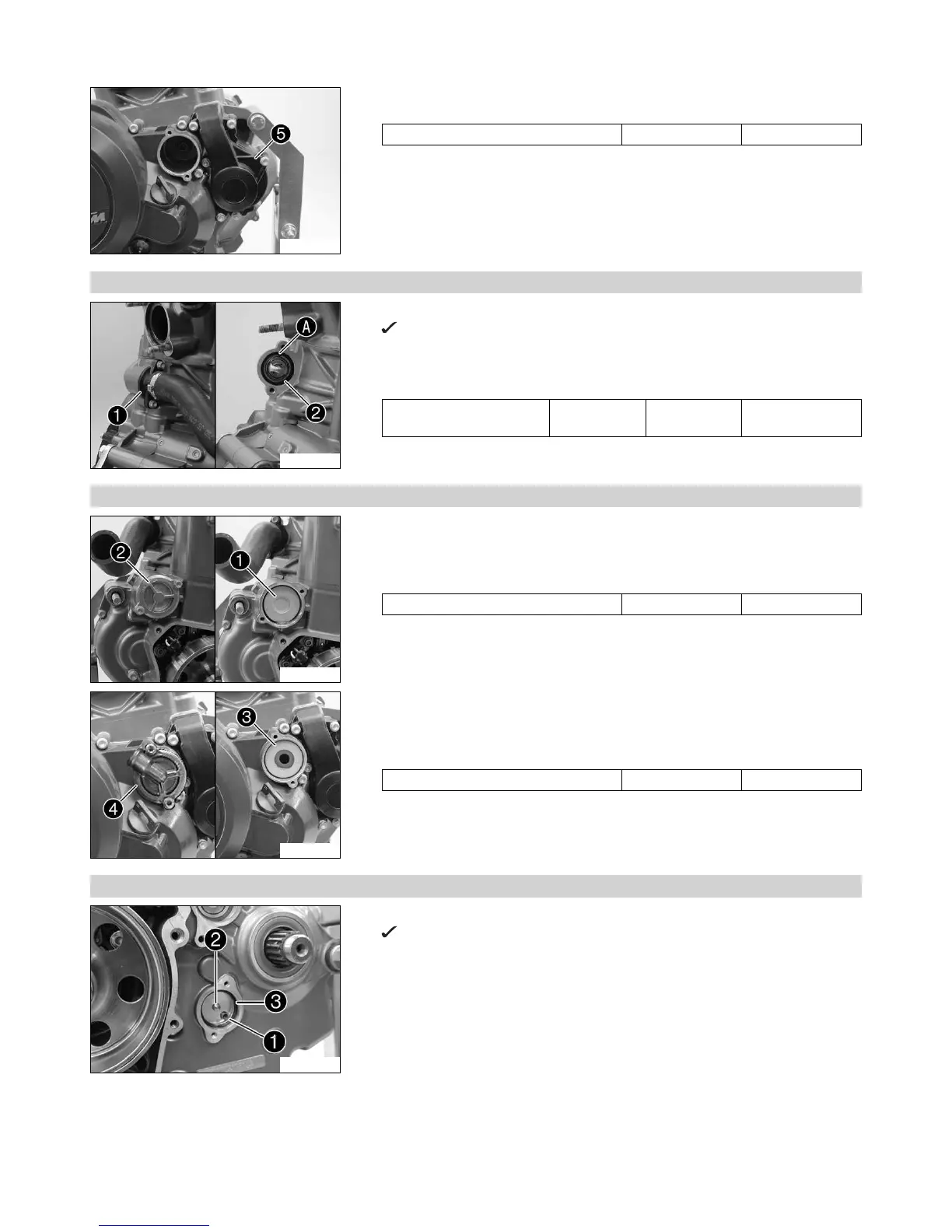

17 ENGINE 161
300012-12
– Put on the water pump cover 5. Mount and tighten screws.
Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
17.5.27 Installing thermostat
300010-11
– Position the thermostat 1 with the gasket.
The drill hole A must face upward.
– Install the thermostat case 2 with the radiator hose.
– Mount and tighten the screws.
Guideline
Screw, thermostat housing M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
17.5.28 Installing the oil filter
300009-11
– Insert the oil filter 1.
– Lubricate the O-ring of the oil filter cover. Install the oil filter cover 2.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
306801-11
– Insert the oil filter 3.
– Lubricate the O-ring of the oil filter cover. Install the oil filter cover 4.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
17.5.29 Installing gear position sensor
300007-11
– Mount the contact springs 1 and contact bolt 2.
The contact bolts are mounted with the flat side forward; the pointed sides
face the sensor.
– Position O-ring 3.

KTM 690 Enduro R EU 2013 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Transmission	6-speed
Rear Suspension	WP monoshock
Compression Ratio	12.5:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Front Tire	90/90-21
Rear Tire	140/80-18
Starter	Electric
Lubrication	Forced oil lubrication with 2 oil pumps
ABS	Optional
Power	67 hp (49 kW)
Seat Height	910 mm
Fuel Capacity	12 l
Front Suspension	WP USD 48 mm
Brakes Front	300 mm disc
Brakes Rear	240 mm disc
Bore x Stroke	102 mm x 84.5 mm
Frame	Chrome-molybdenum trellis frame, powder coated
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Front Brake Caliper	Single piston
Rear Brake Caliper	Brembo single piston, floating caliper
Wheel Front	21 inch
Wheel Rear	18 inch
Chain	5/8 x 1/4"
Steering Head Angle	63.5°
Wheelbase	1, 500 mm (59.1 in)
Ground Clearance	280 mm (11 in)
