KTM 690 Enduro R EU 2013 User Manual

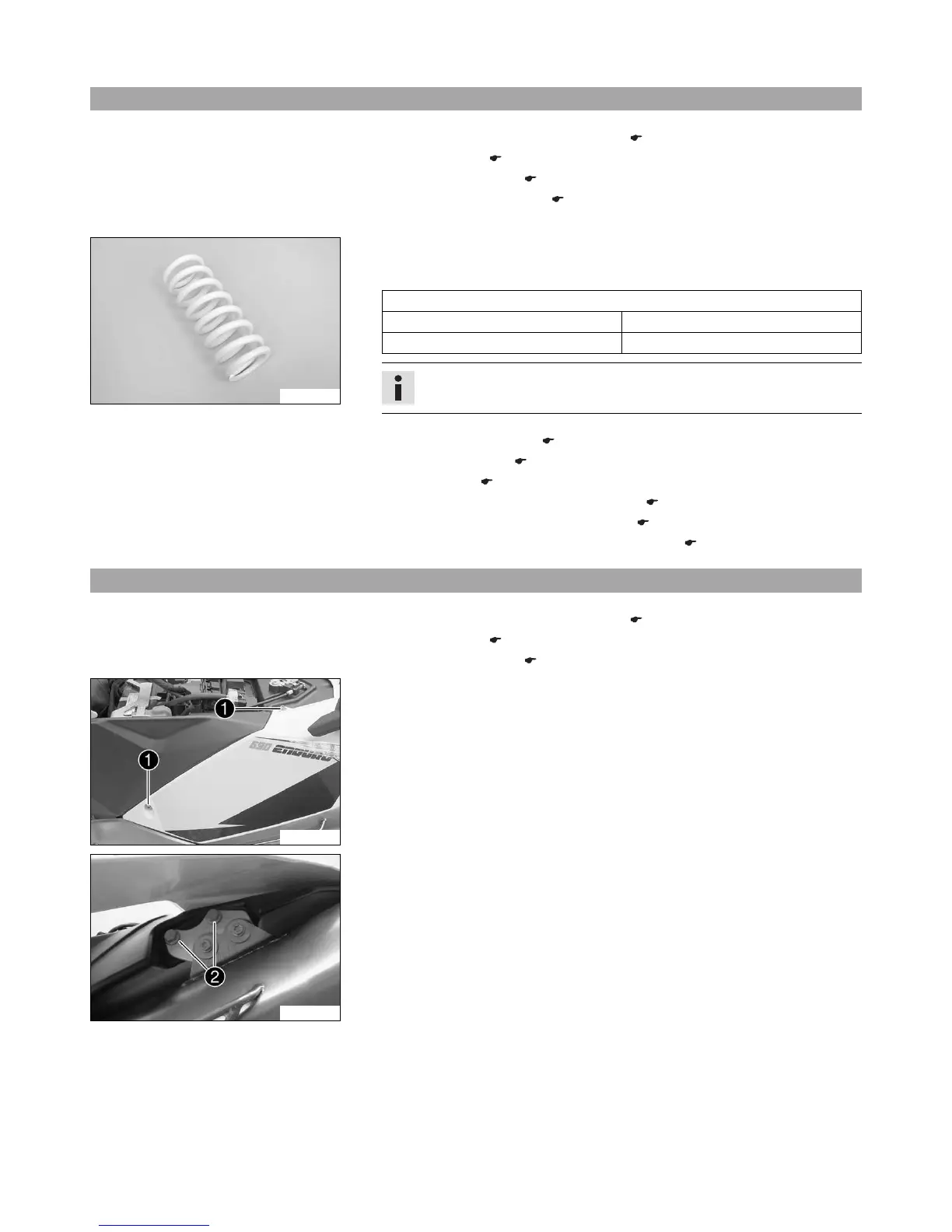

9 SHOCK ABSORBER, SWINGARM 40
9.8 Adjusting the riding sag
Preparatory work
– Raise the motorcycle with the work stand. ( p. 10)
– Remove the seat. ( p. 62)
– Take off the side cover. ( p. 63)
– Remove the shock absorber. ( p. 40)
– After removing the shock absorber, clean it thoroughly.
201352-10
Main work
– Choose and mount a suitable spring.
Guideline
Spring rate
Medium (standard) 80 N/mm (457 lb/in)
Hard 85 N/mm (485 lb/in)
Info
The spring rate is shown on the outside of the spring.
Finishing work
– Install the shock absorber. ( p. 41)
– Mount the side cover. ( p. 63)
– Mount the seat. ( p. 63)
– Remove the motorcycle from the work stand. ( p. 11)
– Check the static sag of the shock absorber. ( p. 38)
– Adjust the rebound damping of the shock absorber. ( p. 38)
9.9 Removing the shock absorber
Preparatory work
– Raise the motorcycle with the work stand. ( p. 10)
– Remove the seat. ( p. 62)
– Take off the side cover. ( p. 63)
202036-12
Main work
– Remove screws 1.
202037-12
– Lift the rear fairing.
– Remove screws 2.

KTM 690 Enduro R EU 2013 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Transmission	6-speed
Rear Suspension	WP monoshock
Compression Ratio	12.5:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Front Tire	90/90-21
Rear Tire	140/80-18
Starter	Electric
Lubrication	Forced oil lubrication with 2 oil pumps
ABS	Optional
Power	67 hp (49 kW)
Seat Height	910 mm
Fuel Capacity	12 l
Front Suspension	WP USD 48 mm
Brakes Front	300 mm disc
Brakes Rear	240 mm disc
Bore x Stroke	102 mm x 84.5 mm
Frame	Chrome-molybdenum trellis frame, powder coated
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Front Brake Caliper	Single piston
Rear Brake Caliper	Brembo single piston, floating caliper
Wheel Front	21 inch
Wheel Rear	18 inch
Chain	5/8 x 1/4"
Steering Head Angle	63.5°
Wheelbase	1, 500 mm (59.1 in)
Ground Clearance	280 mm (11 in)
