Technical Data
Compact

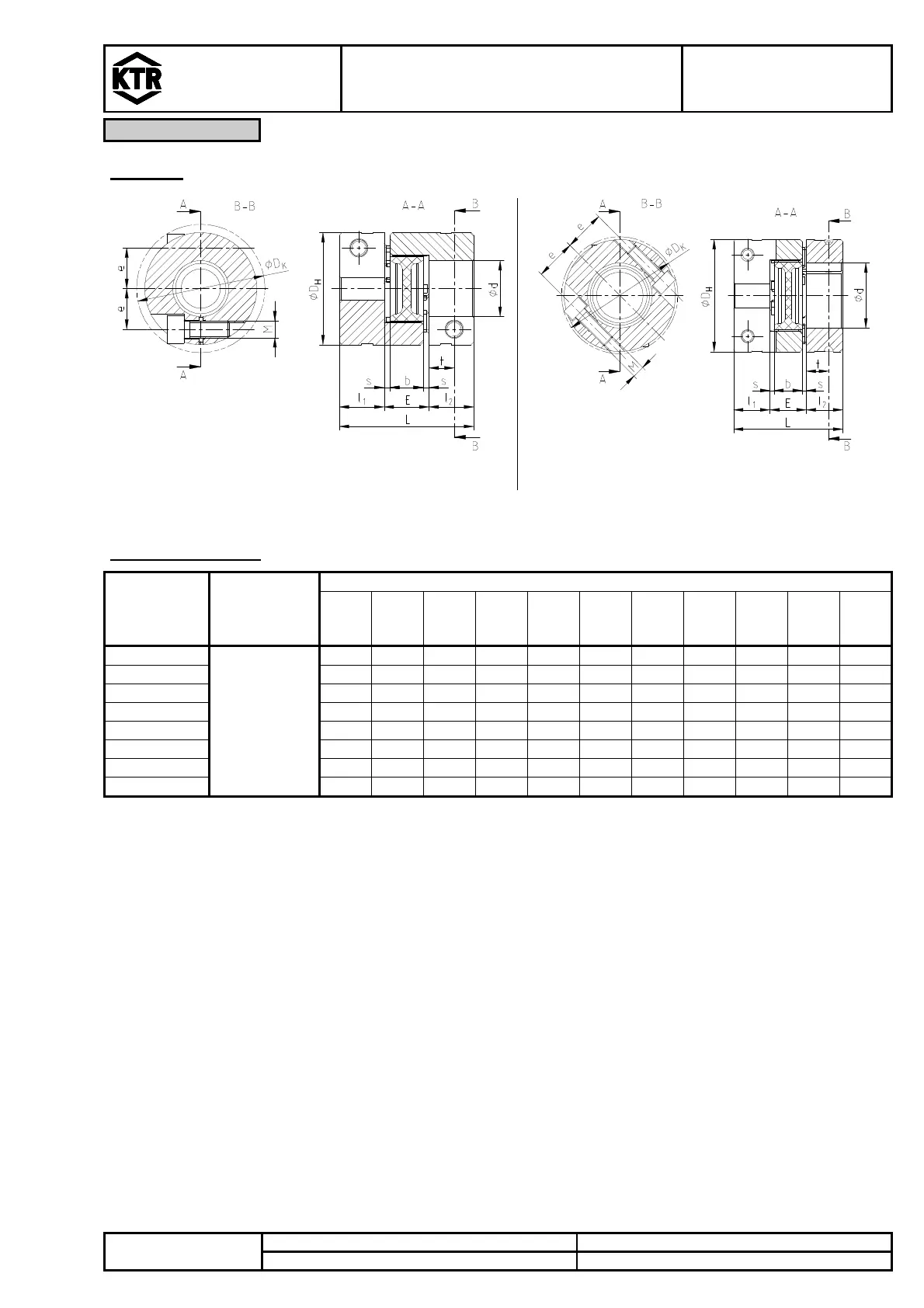

Illustration 7: ROTEX
®
GS 7 - 19 Compact
single slotted
1)
(type 2.8/2.9)
Illustration 8: ROTEX
®
GS 24 - 38 Compact
axially slotted (type 2.8/2.9)
Table 9: Dimensions
Size
Spider
(part 2)
Torques
[Nm]
Dimensions [mm]
d
max.
D
H
D
K
L l
1
; l
2
E b s t e M
7
Figures
see table 2
7 14 16,6 18 5 8 6 1 2,5 5,0 M2
9 9 20 21,3 24 7 10 8 1 3,5 6,7 M2,5
12 12 25 26,2 26 7 12 10 1 3,5 8,3 M3
14 16
1)
30 30,5 32 9,5 13 10 1,5 4,5 9,6 M4
19 24
1)
40 45,0 50 17 16 12 2 9,0 14,0 M6
24 32 55 57,5 54 18 18 14 2 11,0 20,0 M6
28 35 65 69,0 62 21 20 15 2,5 12,0 23,8 M8
38 45 80 86,0 76 26 24 18 3 16,0 30,5 M10
1) Size 14 with screw M3 and dimension e=10,4; size 19 with screw M5 and dimension e=15,5
