1-S19
GR1600EC2, WSM
ENGINE

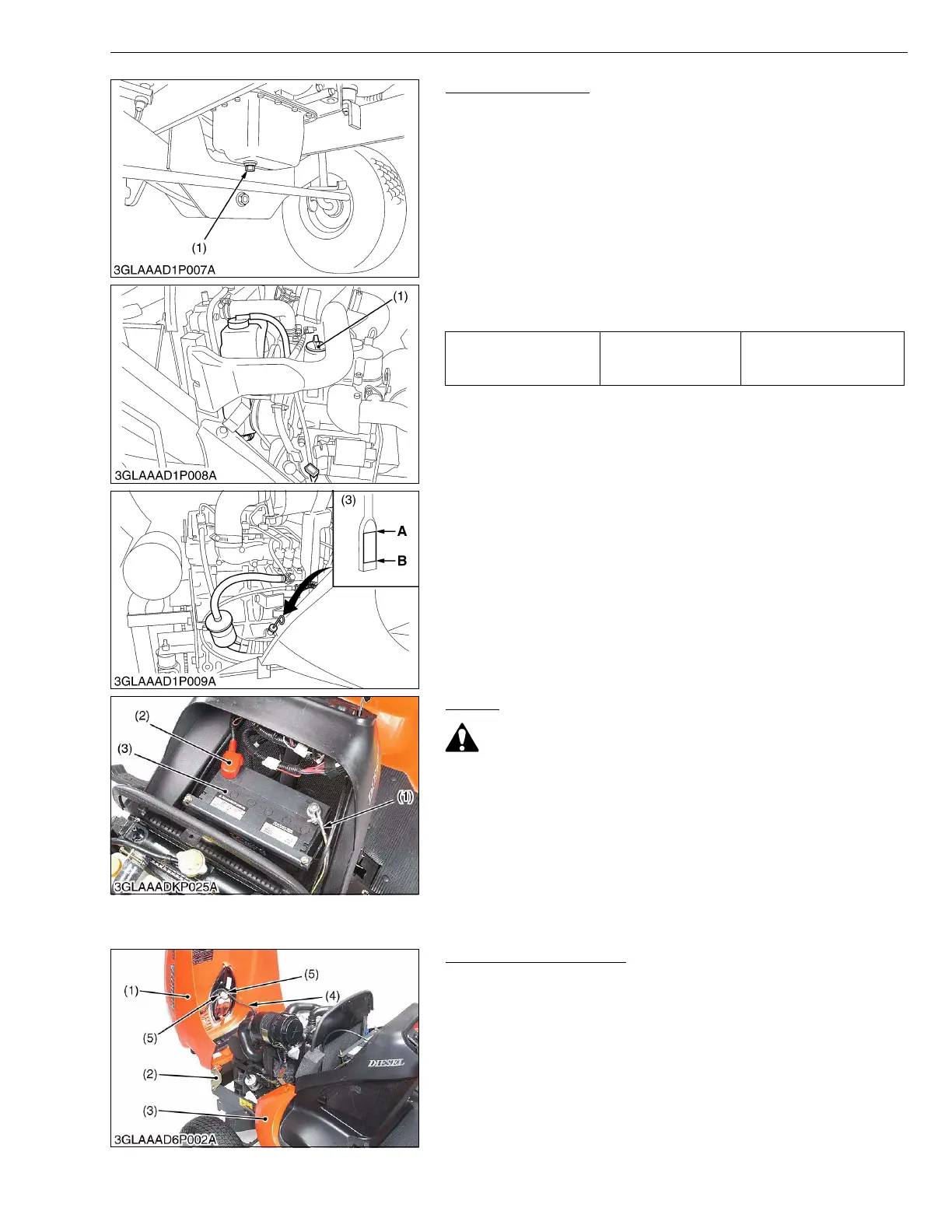

Draining Engine Oil
1. Start and warm up the engine for approx. 5 minutes.
2. Place an oil pan underneath the engine.
3. Remove the drain plug (1) to drain oil.
4. After draining, screw in the drain plug (1).
(When refilling)
• Fill the engine oil up to the upper line on the dipstick (3).
• Never mix two different type of oil.
• Use the proper SAE Engine Oil according to ambient
temperature.
Refer to “LUBRICANT, FUEL AND COOLANT” (See page G-
8.)
W1042238
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Open the bonnet.
2. Disconnect the negative cable (1) from the battery.
3. Disconnect the positive cable (2) from the battery and remove the
battery (3).
W1042837
Bonnet and Side Bonnet
1. Disconnect the connectors (5) from the head light.
2. Remove the wire harness (4) from the bonnet.
3. Remove the bonnet (1) with bonnet bracket (2)
4. Remove the side bonnet (3).
W1043145
Engine Oil Capacity
1.2 L
1.27 U.S.qts
1.06 lmp.qts
(1) Drain Plug
(2) Oil Inlet
(3) Dipstick
A : Upper Level
B : Lower Level
(1) Negative Cable
(2) Positive Cable
(3) Battery
(1) Bonnet
(2) Bonnet Bracket
(3) Side Bonnet
(4) Wire Harness
(5) Connector
To Next Page
